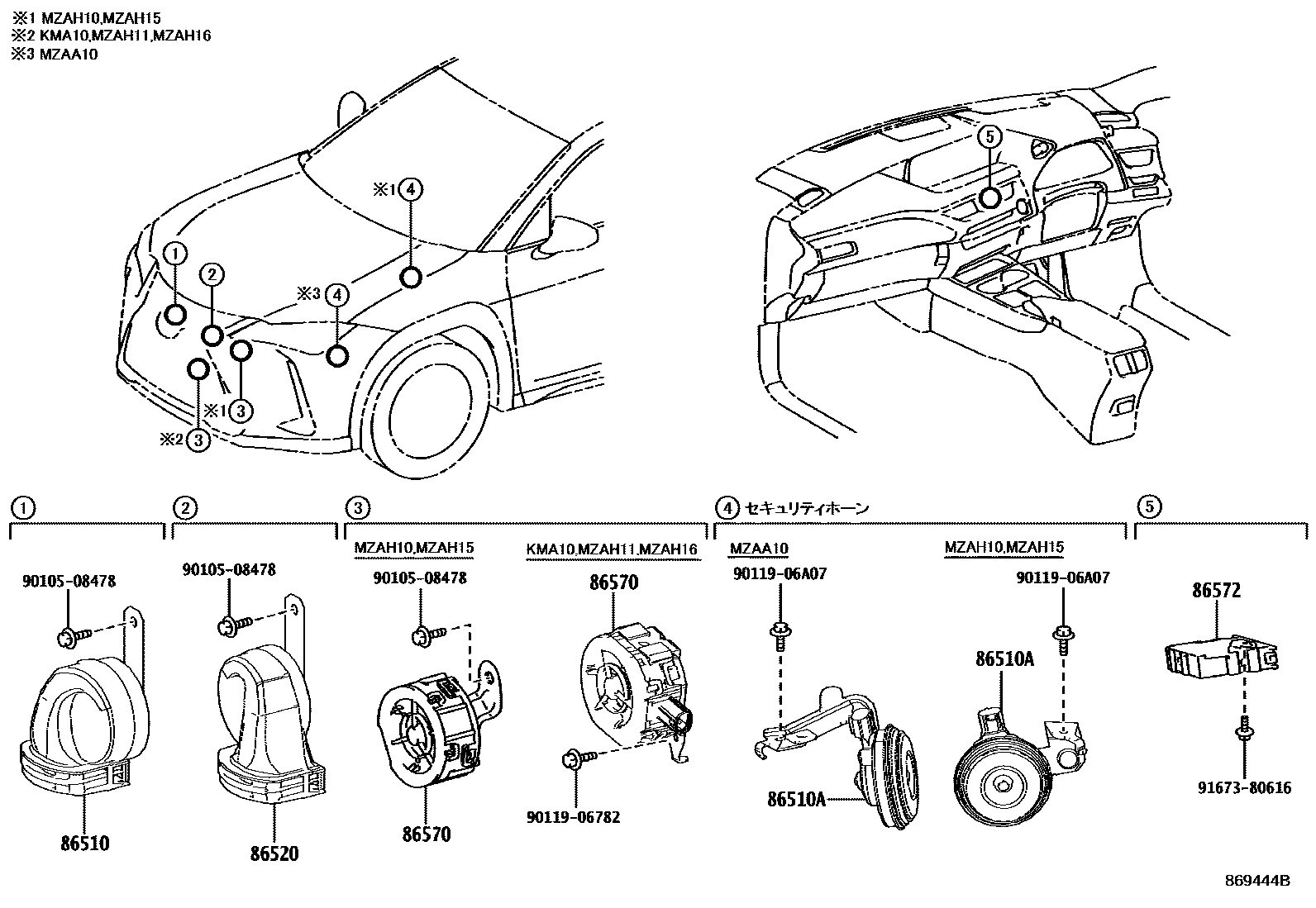

HORN

86510HORN ASSY, HIGH PITCHED

main86510-48190iMZAA10,MZAH10,15202207

86510AHORN ASSY, SECURITY

main86560-12090iMZAA10202207

main86560-47050iMZAH10,15202207

86520HORN ASSY, LOW PITCHED

main86520-30670iMZAH11,16202401

86570SPEAKER ASSY, VEHICLE APPROACHING

main86570-76060iMZAH10,15202207

main86570-76070iKMA10202401-202512

86572CONTROLLER, VEHICLE APPROACHING SPEAKER

main86572-76170iMZAH10,15202207

main86572-76200iKMA10202304-202401

main865H2-76010iMZAH11,16202401

main865H2-76020iKMA10202401-202512

9010508478

main90105-08478

9011906782

main90119-06782

9011906A07

main90119-06A07

9167380616

main91673-80616

9 parts on this diagram · 1 diagram in section
