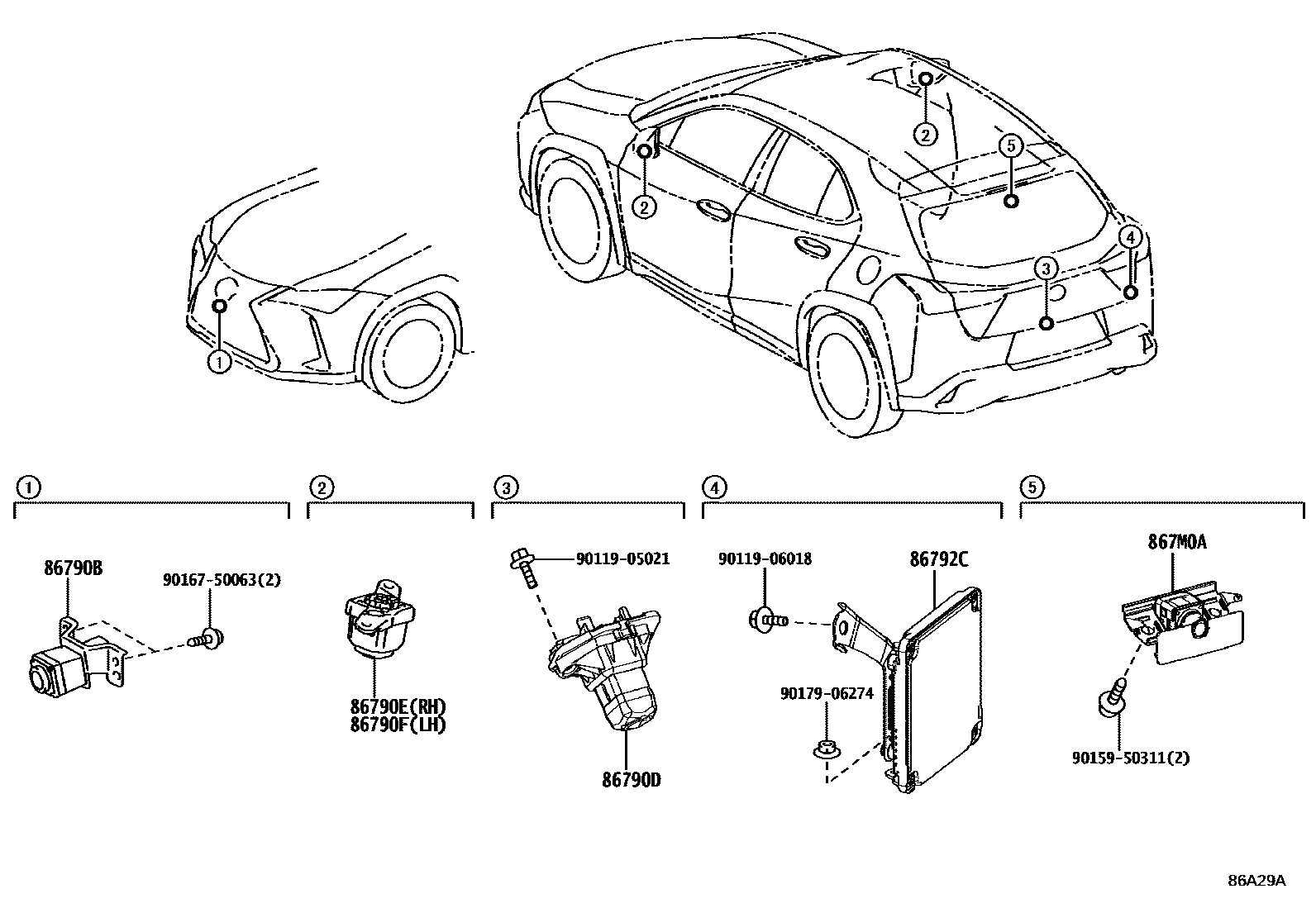

CAMERA & REAR MONITOR DISPLAY

86790BCAMERA ASSY, TELEVISION, FR

main86790-76050iMZAA10,MZAH10,15202207

86790DCAMERA ASSY, TELEVISION, RR

main86790-76060supersedes 867B0-76130iMZAH11,16202411-202512

86790ECAMERA ASSY, TELEVISION, SIDE RH

main86790-33300iMZAH11,16202411-202512

86790FCAMERA ASSY, TELEVISION, SIDE LH

main86790-33290iKMA10202304-202401

86792CCOMPUTER, PARKING ASSIST

main86792-76090iMZAA10,MZAH1#202207-202212

main86792-76091iKMA10202304-202401

main86792-76110iMZAH11,16202401-202411

867M0ACAMERA ASSY, DRIVE RECORDER, REAR

main867M0-76010iKMA10202401-202512

9011905021

main90119-05021

9011906018

main90119-06018

9015950311

main90159-50311

9016750063

main90167-50063

9017906274

main90179-06274

11 parts on this diagram · 1 diagram in section
