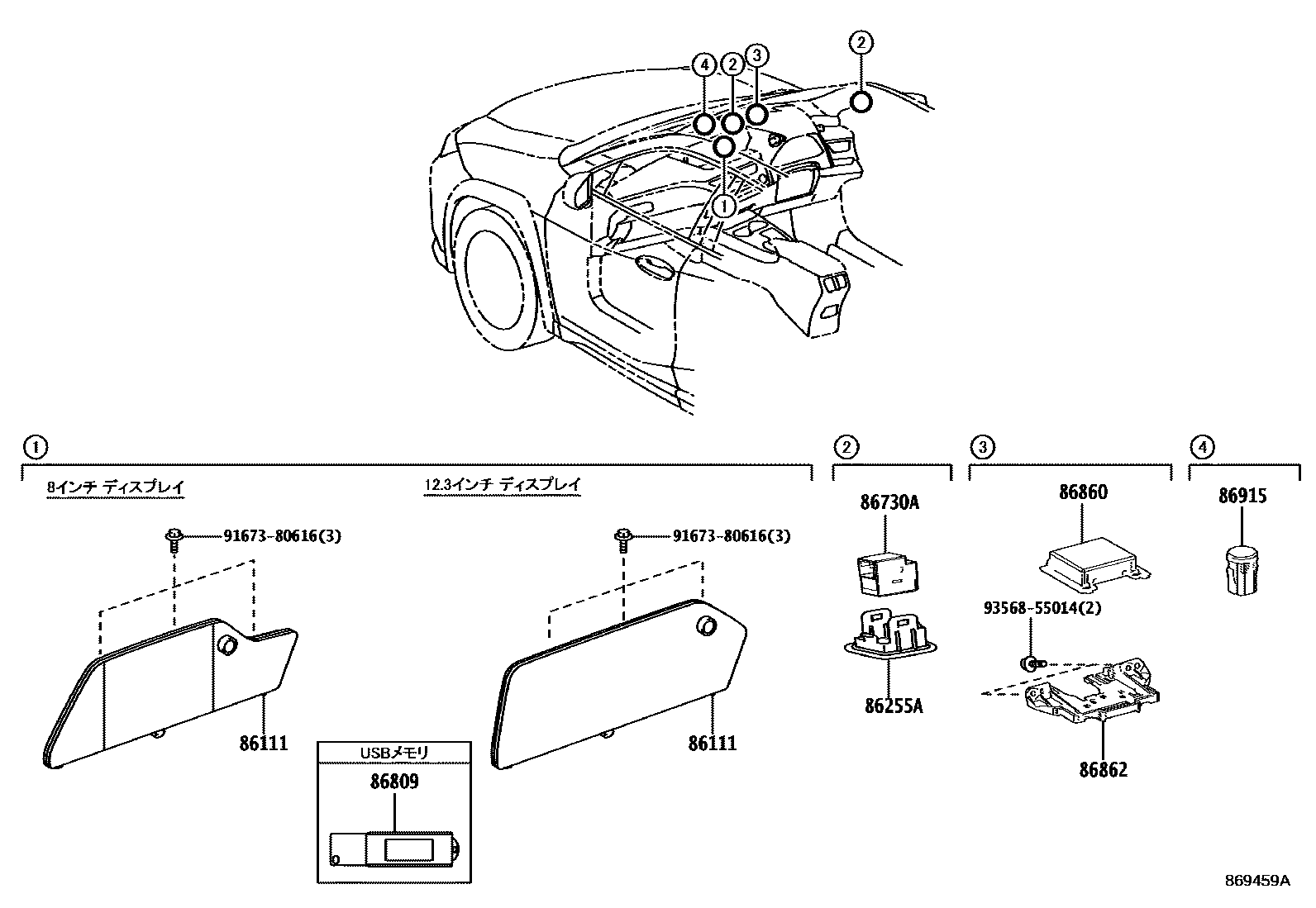

NAVIGATION & FRONT MONITOR DISPLAY

86111MULTI-DISPLAY

main86110-76450supersedes 86110-76380iKMA10202304-202401

main86110-76530iKMA10202401-202512

86255ACASE, MICROPHONE, NO.1

main86255-76010-A0×2iKMA10; MZAH11,16202401

WHITE,TRIM0#; WHITE,TRIM00,02,8#

main86255-76010-C0×2iKMA10; MZAH11,16202401

BLACK,TRIM01,1#,2#,3#,4#; BLACK,TRIM1#,2#,4#

86730AMICROPHONE ASSY, TELEPHONE

main86730-78010×2iKMA10202207-202401

86809USB SET, USB MEMORY NAVIGATION DATA

main86809-78011iKMA10,MZAA10,MZAH1#202207-202310

main86809-78012iKMA10,MZAA10,MZAH10,15202311-202403

main86809-78013iMZAA10,MZAH10,15202404

main86809-78014iKMA10,MZAH11,16202411-202503

86860ANTENNA ASSY, NAVIGATION

main86880-52030supersedes 86880-78010iMZAH11,16202401

86862BRACKET, NAVIGATION ANTENNA

main86862-76010supersedes 86862-42010iMZAH11,16202401

86915TRANSCEIVER, OPTICAL BEACON

main86915-60010iKMA10202207-202401

9167380616

main91673-80616

9356855014

main93568-55014

9 parts on this diagram · 1 diagram in section
