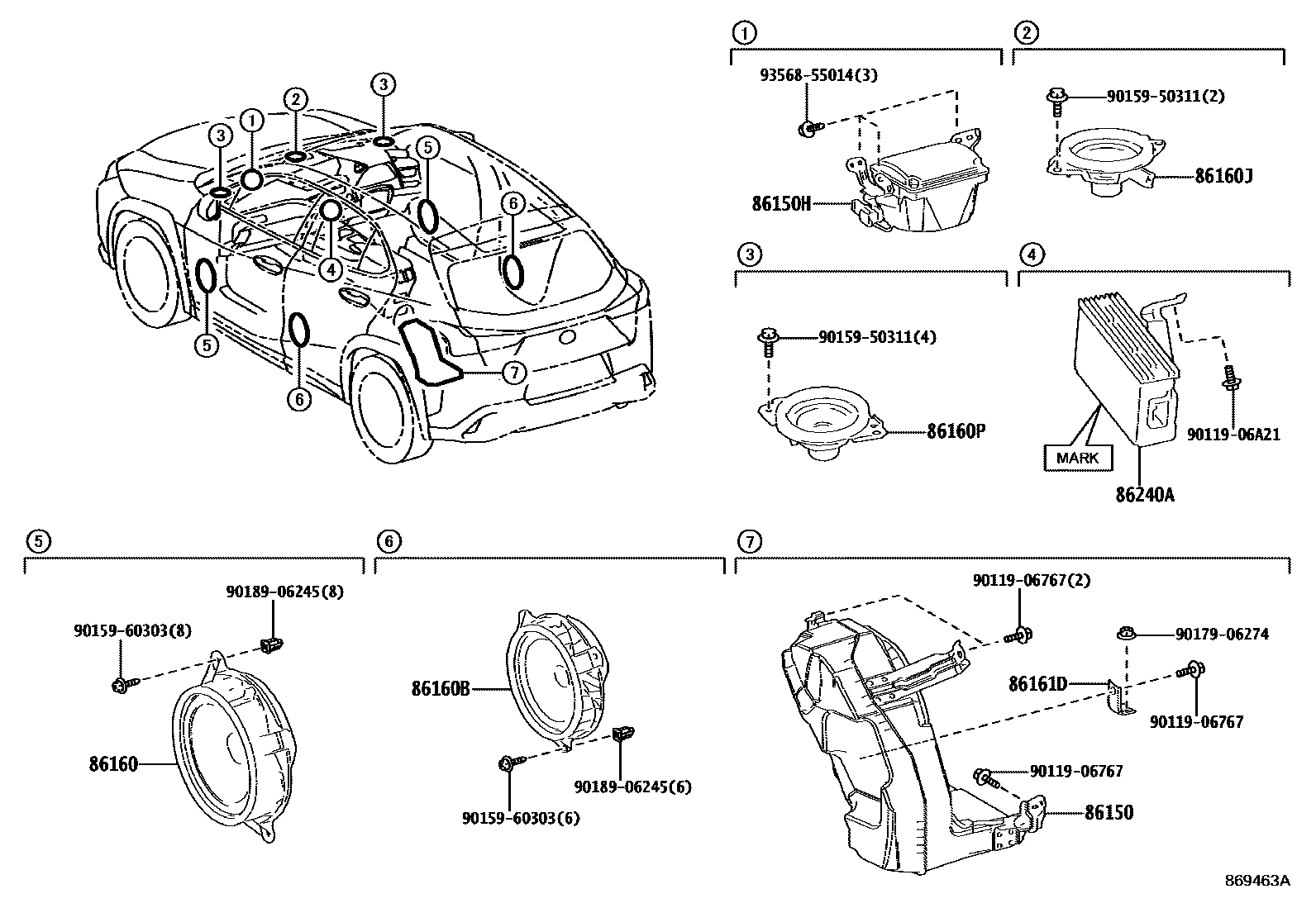

SPEAKER

0001 1 0002 1

86150SPEAKER ASSY, W/BOX, NO.1

main86150-0W410iKMA10202401-202512

main86150-0W630supersedes 86150-76030iMZAA10,MZAH10,15202207

86150HSPEAKER ASSY, W/BRACKET

main86150-76070iKMA10202401-202512

main86150-76050iMZAA10,MZAH10,15202207

86160SPEAKER ASSY, FRONT NO.1

main86160-0WS30×2supersedes 86160-76160iKMA10202304-202401

main86160-76160×2iMZAA10,MZAH10,15202207-202402

86160BSPEAKER ASSY, REAR

main86150-0W640×2supersedes 86160-30F40iKMA10202304-202401

main86160-30F40×2iMZAA10,MZAH10,15202207-202402

86160JSPEAKER ASSY, FRONT NO.3

main86160-78090supersedes 86160-30F20iKMA10202304-202401

main86160-30F20iMZAA10,MZAH10,15202207-202402

86160PSPEAKER ASSY, FRONT NO.2

main86160-78090×2supersedes 86160-30F30iKMA10202304-202401

main86160-30F30×2iMZAA10,MZAH10,15202207-202402

86161DBRACKET, SPEAKER MOUNTING, NO.1

main86161-76030iKMA10202401-202512

86240AEQUALIZER ASSY,STEREO COMPONENT

main86240-76100iKMA10202304-202401

main86240-76150iKMA10202401-202512

main86240-76010iMZAA10202207

main86240-76020iMZAH10202207

main86240-76060iMZAH15202207-202309

main86240-76070iMZAH11,16202401

9011906767

main90119-06767

9011906A21

main90119-06A21

9015950311

main90159-50311

9015960303

main90159-60303

9017906274

main90179-06274

9018906245

main90189-06245

9356855014

main93568-55014

15 parts on this diagram · 2 diagrams in section
