WIRING & CLAMP

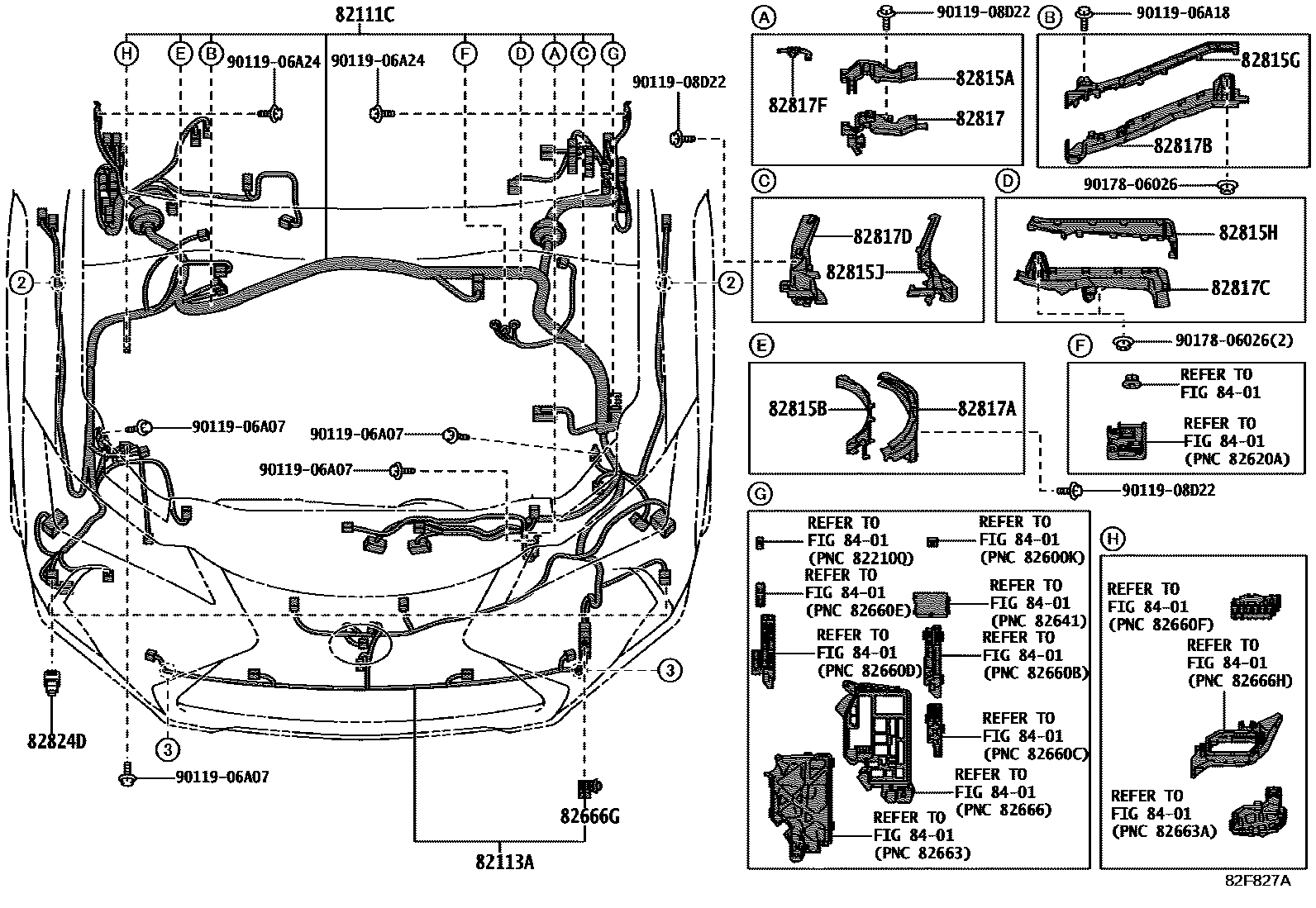

Parts diagram

82111CWIRE, FRONT COMPARTMENT, MAIN

main82111-76X60i202207

main82111-76X70i202207

main82111-76Y30i202304-202401

main82111-76Y90i202401

main82111-76Z90i202401-202403

main82111-76Z91i202404

82113AWIRE, FRONT COMPARTMENT, NO.3

main82113-76170i202401

main82113-76120supersedes 82113-76140i202207

main82113-76180i202401

main82113-76210i202401

main82113-76220i202401

82666GHOLDER, CONNECTOR NO.8

main82666-50C30i202207

82815ACOVER, WIRING HARNESS PROTECTOR

main82815-12D10i202207

main82815-16300i202401

main82815-76610i202207

82815BCOVER, WIRING HARNESS PROTECTOR

main82815-12J00i202207

main82815-47D40i202207

main82815-47K80i202401

82815GCOVER, WIRING HARNESS PROTECTOR NO.5

main82815-12L90i202207

main82815-16320i202401

main82815-47C90i202207

82815HCOVER, WIRING HARNESS PROTECTOR NO.6

main82815-12L80i202207

main82815-47D30i202207

82815JCOVER, WIRING HARNESS PROTECTOR, NO.7

main82815-12L70i202207

main82815-47880i202304-202401

main82815-76600i202207

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-12V50i202207

main82817-76A30i202207

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-12W50i202207

main82817-47P10i202207

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-12Z80i202207

main82817-16770i202401

main82817-47N60i202207

82817CPROTECTOR, WIRING HARNESS, NO.4

main82817-12Z70i202207

main82817-16780i202401

main82817-47P00i202207

82817DPROTECTOR, WIRING HARNESS, NO.5

main82817-12Z60i202207

main82817-16A10i202401

main82817-47N30i202304-202401

main82817-76A20i202207

82817FPROTECTOR, WIRING HARNESS, NO.7

main82817-12Z10i202207

main82817-4E070i202401

82824DCONNECTOR, WIRING HARNESS

main82824-76140×2i202401

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906A07

main90119-06A07

9011906A18

main90119-06A18

9011906A24

main90119-06A24

9011908D22

main90119-08D22

9017806026

main90178-06026

21 parts on this diagram · 25 diagrams in section
