FRONT SEAT & SEAT TRACK

0001 1���������(��������) 0002 1����������(��������) 0003 1���������(�������) 0004 1����������(�������) 0005 1���������(F SPORT) 0006 1����������(F SPORT) 0007 1��������� 0008 1���������� 0009 1���������(�������) 0010 1���������(������) 0011 1���������(�������)

71013SFRAME SUB-ASSY, FRONT SEATBACK, RH

main71013-33531iKMA10202304-202401

sub71013-33381

main71013-76101supersedes 71013-76120iMZAA10,MZAH10,15202207

7104

71051ASPRING SUB-ASSY, FRONT SEAT CUSHION, RH

main71051-47090iKMA10202207-202401

71053SSPRING SUB-ASSY, FRONT SEATBACK, RH

main71053-47050iMZAA10,MZAH10,15202207

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-76E20-B1iMZAA10,MZAH10,15202207

main71071-76E20-C1supersedes 71071-76861-C2iMZAA10,MZAH10,15202207

main71071-76E20-E1supersedes 71071-76861-E5iMZAA10,MZAH10,15202207

main71071-76E30supersedes 71071-76861iMZAH11,16202501-202512

main71071-76E30-E3supersedes 71071-76861-E5iMZAA10,MZAH10,15202207

main71071-76E60-A1iMZAA10,MZAH10,15202207

main71071-76E60-A3iMZAH11,16202401-202512

main71071-76E60-B1iMZAA10,MZAH10,15202207

main71071-76E60-C1supersedes 71071-76861-C2iMZAA10,MZAH10,15202207

main71071-76E60-E0supersedes 71071-76861-E5iMZAA10,MZAH10,15202207

main71071-76E80-A1iKMA10202304-202401

main71071-76E80-A3iKMA10202401-202512

main71071-76E80-B1supersedes 71071-76E70-B0iKMA10202401-202512

main71071-76E80-C1supersedes 71071-76E70-C0iKMA10202304-202401

main71071-76E80-E0supersedes 71071-76E70-E0iKMA10202401-202512

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-76660iMZAH11,16202501-202512

main71073-76A20-E0supersedes 71073-76660-E9iMZAH11,16202411-202512

main71073-76A70-B2iMZAA10,MZAH10,15202207

main71073-76A70-B3iMZAA10,MZAH10,15202207

main71073-76A70-C1supersedes 71073-76660-C4iMZAA10,MZAH10,15202207

main71073-76A70-E2supersedes 71073-76660-E9iMZAA10,MZAH10,15202207

main71073-76A80-A1iMZAA10,MZAH10,15202207

main71073-76A80-B1iMZAA10,MZAH10,15202207

main71073-76A80-C2supersedes 71073-76660-C4iMZAA10,MZAH10,15202207

main71073-76A80-E1supersedes 71073-76660-E9iMZAA10,MZAH10,15202207

main71073-76B20-B1supersedes 71073-76D00-B2iKMA10202304-202401

main71073-76B20-C1supersedes 71073-76D00-C2iKMA10202304-202401

main71073-76B20-E4supersedes 71073-76D00-E2iKMA10202304-202401

main71073-76B30-A1iKMA10202304-202401

main71073-76B30-B1supersedes 71073-76D00-B2iKMA10202304-202401

main71073-76B30-C2supersedes 71073-76D00-C2iKMA10202304-202401

main71073-76B30-E1supersedes 71073-76D00-E2iKMA10202304-202401

main71073-76C40-E0supersedes 71073-76660-E9iMZAA10,MZAH10,15202207

main71073-76D20-A1iKMA10202401-202512

main71073-76D20-B2supersedes 71073-76D00-B2iKMA10202401-202512

main71073-76D20-C2supersedes 71073-76D00-C2iKMA10202401-202512

main71073-76D20-E2supersedes 71073-76D00-E2iKMA10202401-202512

main71073-76D40-A1iMZAH11,16202401-202512

main71073-76D40-B2iMZAH11,16202401-202512

main71073-76D40-C2supersedes 71073-76660-C4iMZAH11,16202401-202512

main71073-76D40-E2supersedes 71073-76660-E9iMZAH11,16202401-202512

main71073-76D70-B4iMZAH11,16202401-202512

main71073-76D70-B5iMZAH11,16202401-202512

main71073-76D70-C2supersedes 71073-76660-C4iMZAH11,16202401-202512

main71073-76D70-E2supersedes 71073-76660-E9iMZAH11,16202401-202512

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-47010×4iKMA10202207-202401

71759BHOOK, FRONT SEATBACK

main71759-50040×4iMZAH11,16202401

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-76100iMZAH11,16202501-202512

main71811-76100-C0iMZAH11,16202401-202501

BLACK,TRIM2#,4#

main71811-76110-C0iMZAH11,16202401-202512

7181AHOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH

main7181A-33010supersedes 7181A-47010iKMA10202304-202401

71848ACAP, SEAT ADJUSTER COVER, RH

main71848-76020iMZAH11,16202501-202512

main71848-76020-C0iMZAH11,16202401-202501

BLACK,TRIM2#,4#

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-47070iMZAH11,16202501-202512

main71861-47070-C1iKMA10202304-202401

BLACK,TRIM0#,1#,2#,4#

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-76010supersedes 71873-47070iKMA10202304-202401

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71873-47080iKMA10202401-202512

71875FCOVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)

main71875-47040iMZAH11,16202501-202512

main71875-47040-C1iMZAA10,MZAH10,15202207

BLACK,TRIM2#,3#,4#

71876FCOVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)

main71875-47070iMZAH11,16202501-202512

main71875-47070-C1iMZAA10,MZAH10,15202207

BLACK,TRIM2#,3#,4#

main71875-76020-C0iKMA10202304-202401

BLACK,TRIM0#,1#,2#,4#

71910AHEADREST ASSY, FRONT SEAT

main71910-76290×2iMZAH11,16202501-202512

main71910-33D10-C3×2supersedes 71910-76290-C0iMZAA10,MZAH1#202207-202302

main71910-33D10-C7×2supersedes 71910-76290-C0iMZAA10,MZAH10,15202302

main71910-33D10-D3×2iMZAA10,MZAH1#202207-202302

main71910-33D10-D6×2iMZAA10,MZAH10,15202302

main71910-76301-B0×2iMZAA10,MZAH1#202207-202302

main71910-76301-C7×2supersedes 71910-76290-C0iMZAA10,MZAH1#202207-202302

main71910-76301-E6×2supersedes 71910-76290-E3iMZAA10,MZAH1#202207-202302

main71910-76301-E7×2supersedes 71910-76290-E3iMZAA10,MZAH10,15202207

main71910-76301-J1×2iMZAA10,MZAH10,15202207

main71910-76311×2supersedes 71910-76301iKMA10202501-202512

main71910-76311-A0×2iMZAA10,MZAH1#202207-202302

main71910-76311-A6×2iMZAH11,16202401-202512

main71910-76311-A7×2iMZAA10,MZAH10,15202302

main71910-76311-B0×2iMZAA10,MZAH1#202207-202302

main71910-76311-B3×2supersedes 71910-76301-B6iMZAA10,MZAH10,15202302

main71910-76311-C0×2supersedes 71910-76290-C0iMZAA10,MZAH1#202207-202302

main71910-76311-C4×2supersedes 71910-76290-C0iMZAA10,MZAH10,15202302

main71910-76311-E6×2supersedes 71910-76290-E3iMZAA10,MZAH1#202207-202302

main71910-76311-E7×2supersedes 71910-76290-E3iMZAA10,MZAH10,15202302

main71910-76430-A2×2iMZAH11,16202401-202512

main71910-76430-C2×2supersedes 71910-76290-C0iMZAA10,MZAH1#202207-202302

main71910-76430-C4×2supersedes 71910-76290-C0iMZAA10,MZAH10,15202302

main71910-76430-D2×2iMZAA10,MZAH1#202207-202302

main71910-76430-D3×2iMZAA10,MZAH10,15202302

71931SUPPORT, FRONT SEAT HEADREST

main71930-47050×2iKMA10,MZAH11,16202501-202512

main71930-47050-C5×2iKMA10202304-202401

main71931-47030×2iKMA10,MZAH11,16202501-202512

main71931-47030-C4×2iMZAH11,16202401-202501

72010ADJUSTER ASSY, FRONT SEAT, RH

main72010-33570iKMA10202401-202512

main72010-33610iKMA10202304-202401

main72010-33560supersedes 72010-76220iMZAH11,16202401-202512

main72010-33620supersedes 72010-76210iMZAA10,MZAH10,15202207

72123BCOVER, SEAT TRACK BRACKET, OUTER FRONT

main72123-10100×2iMZAH11,16202401

72125RCOVER, SEAT TRACK, UPPER REAR NO.1

main72125-47020×4supersedes 72125-47010iMZAH11,16202401-202512

72127ECOVER, SEAT TRACK BRACKET, INNER FRONT

main72123-10100×2iMZAA10,MZAH10,15202207

72137TCOVER, SEAT TRACK BRACKET, OUTER REAR RH

main72137-47060iMZAA10,MZAH10,15202207

72157FCOVER, SEAT TRACK BRACKET, INNER REAR RH

main72157-47080iKMA10202207-202401

72211CHANDLE, SEAT TRACK ADJUSTING

main72211-47050×2iMZAH11,16202401-202512

72265COVER, SEAT TRACK UPPER RAIL, RH

main72265-47020×2supersedes 72265-47010iMZAH11,16202401-202512

72266COVER, SEAT TRACK UPPER RAIL, LH

main72265-47020×2supersedes 72265-47010iKMA10202304-202401

72277PROTECTOR, SEAT SLIDE POSITION SENSOR,

main72277-47050iMZAA10,MZAH10,15202207

72494HANDLE, VERTICAL ADJUSTING, RH

main72494-76010iMZAH11,16202501-202512

main72494-76010-C0iMZAA10,MZAH10,15202207

BLACK,TRIM2#,3#,4#

72497BCOVER, VERTICAL ADJUSTER BRACKET, RH

main72498-47010iMZAA10,MZAH10,15202207

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-76010iMZAH11,16202501-202512

main72525-76010-C0iMZAA10,MZAH10,15202207

BLACK,TRIM2#,3#,4#

72551BCOVER, RECLINING HINGE, RH

main72551-76010iMZAH11,16202501-202512

main72551-76010-C0iMZAH11,16202401-202501

BLACK,TRIM2#,4#

73910AAIRBAG ASSY, FRONT SEAT, RH

main73910-42090iKMA10202401-202512

76854CRETAINER, FRONT SEAT CUSHION COVER

main76854-44010iMZAH11,16202407-202512

79977AFELT, SEATBACK

main79977-33040×2iKMA10202207-202401

8202

9011910601

main90119-10601

9014810007

main90148-10007

9356054012

main93560-54012

9418560600

main94185-60600

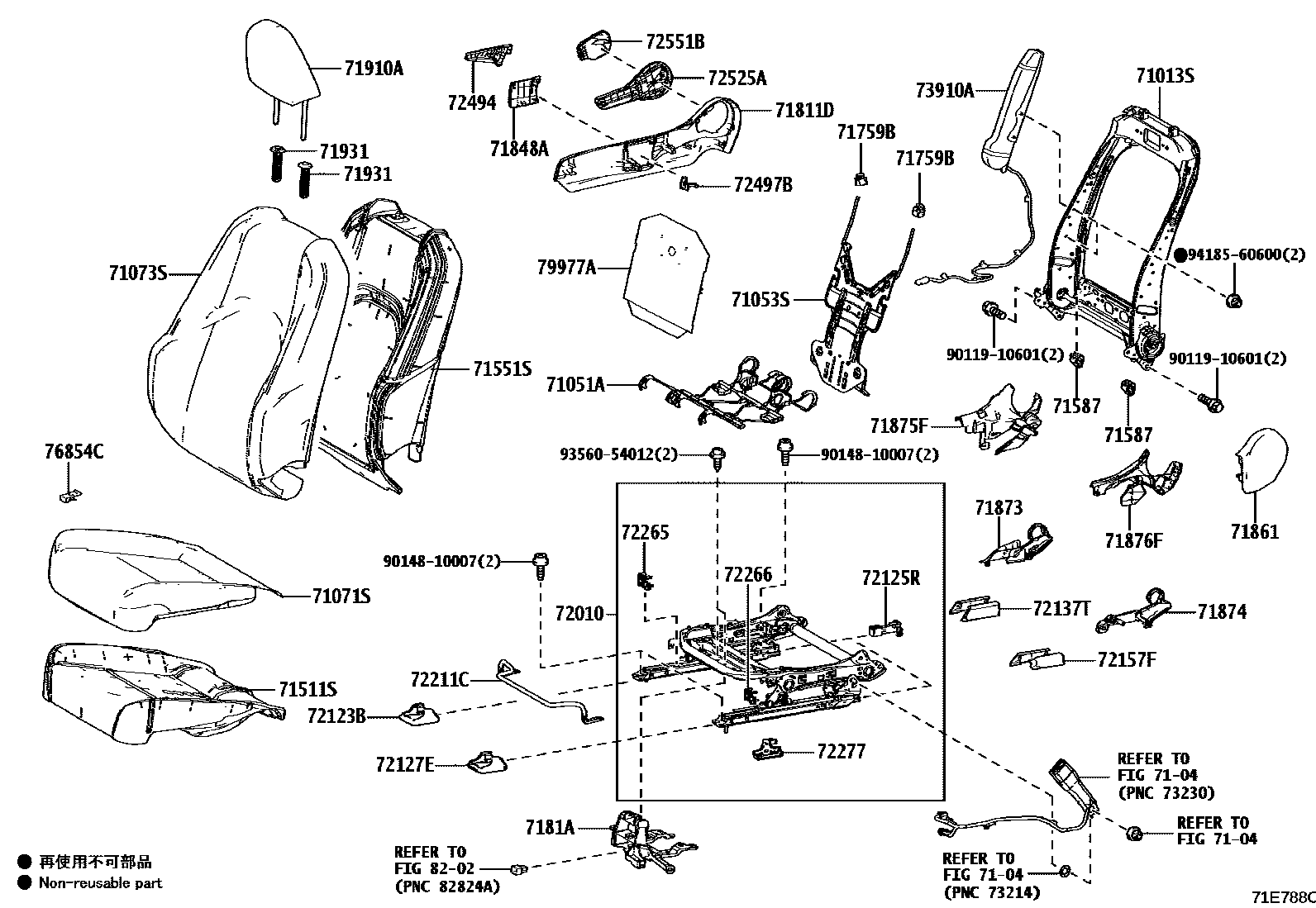

42 parts on this diagram · 11 diagrams in section
