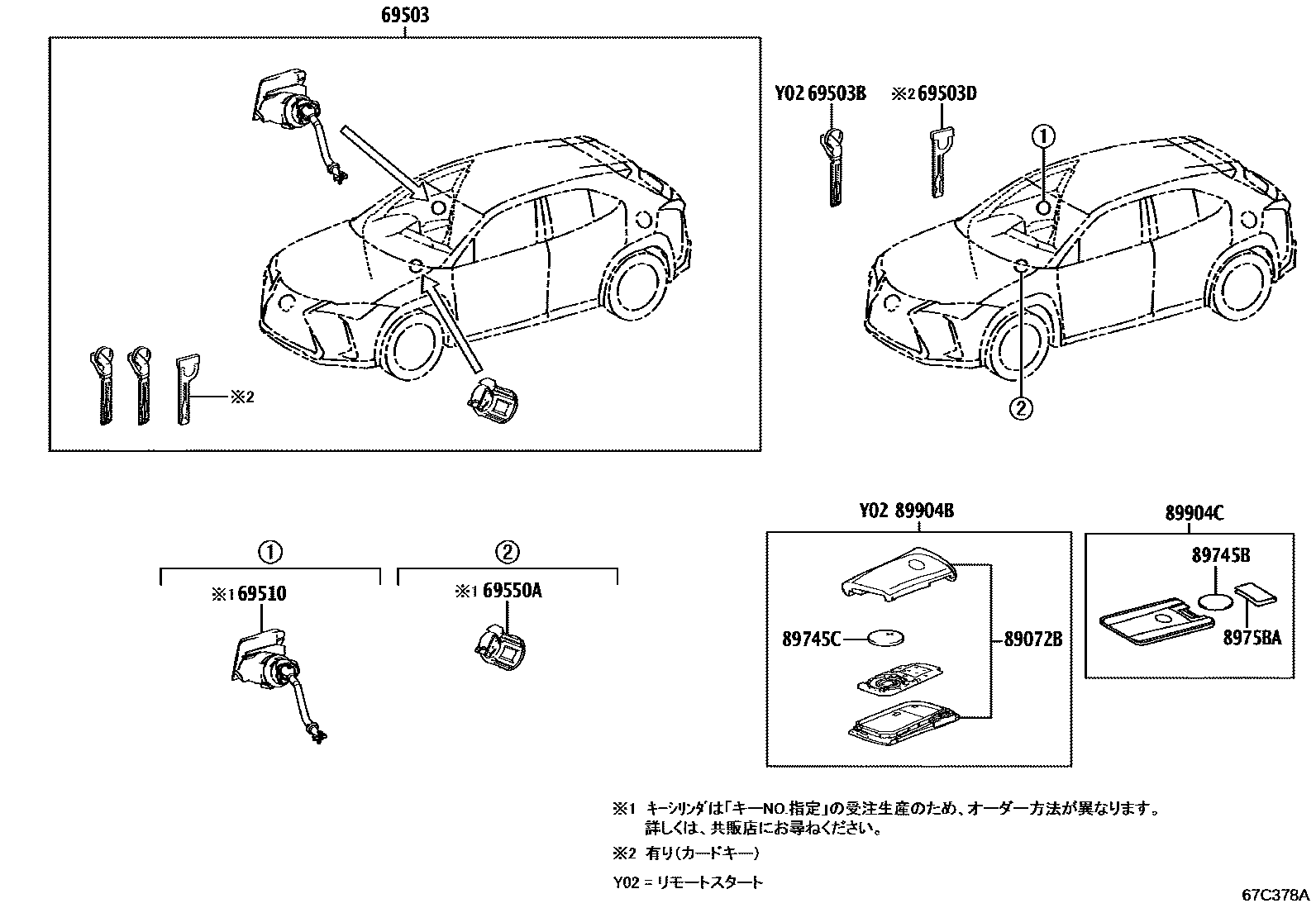

LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-76100supersedes 69005-76090iKMA10,MZAH11,16202401

69503BKEY, CUT

main69515-33140×2iMZAA10,MZAH10,15202207

69503DKEY, CUT(CARD KEY)

main69515-30330iKMA10,MZAH11,16202401

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-76030iKMA10202207-202401

69550ACYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK

main69550-50040iKMA10202207-202401

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

main89072-76100×2supersedes 89072-76090iMZAA10,MZAH10,15202207

main89072-76600×2supersedes 89072-76590iKMA10202304-202401

main89072-78380×2supersedes 89072-78390iKMA10; KMA10,MZAH11,16202401

main89072-78390×2supersedes 89072-76590iKMA10202401-202411

89745BBATTERY, TRANSMITTER(CARD KEY)

main89745-50030iKMA10202207-202401

89745CBATTERY, TRANSMITTER

main89745-50020iMZAA10,MZAH10,15202207

8975BACOVER, TRANSMITTER BATTERY HOUSING(CARD KEY)

main8975B-50030iMZAA10,MZAH10,15202207

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main8990E-50060supersedes 8990H-76D30iKMA10,MZAH11,16202401

main8990E-76010supersedes 8990H-76D30iKMA10,MZAH11,16202401

main8990E-76020supersedes 8990H-76D30iKMA10; KMA10,MZAH11,16202401

main8990H-76630×2supersedes 8990H-76620iMZAA10,MZAH10,15202207

main8990H-76C60×2supersedes 8990H-76C50iKMA10202304-202401

main8990H-76D30×2supersedes 8990H-76C50iKMA10202401-202411

main8990H-76D40×2supersedes 8990H-76D30iKMA10; KMA10,MZAH11,16202401

89904CTRANSMITTER SUB-ASSY, ELECTRICAL KEY(CARD KEY)

main8990H-50470iKMA10,MZAH11,16202401

main8990H-76B50iKMA10202207-202401

11 parts on this diagram · 1 diagram in section
