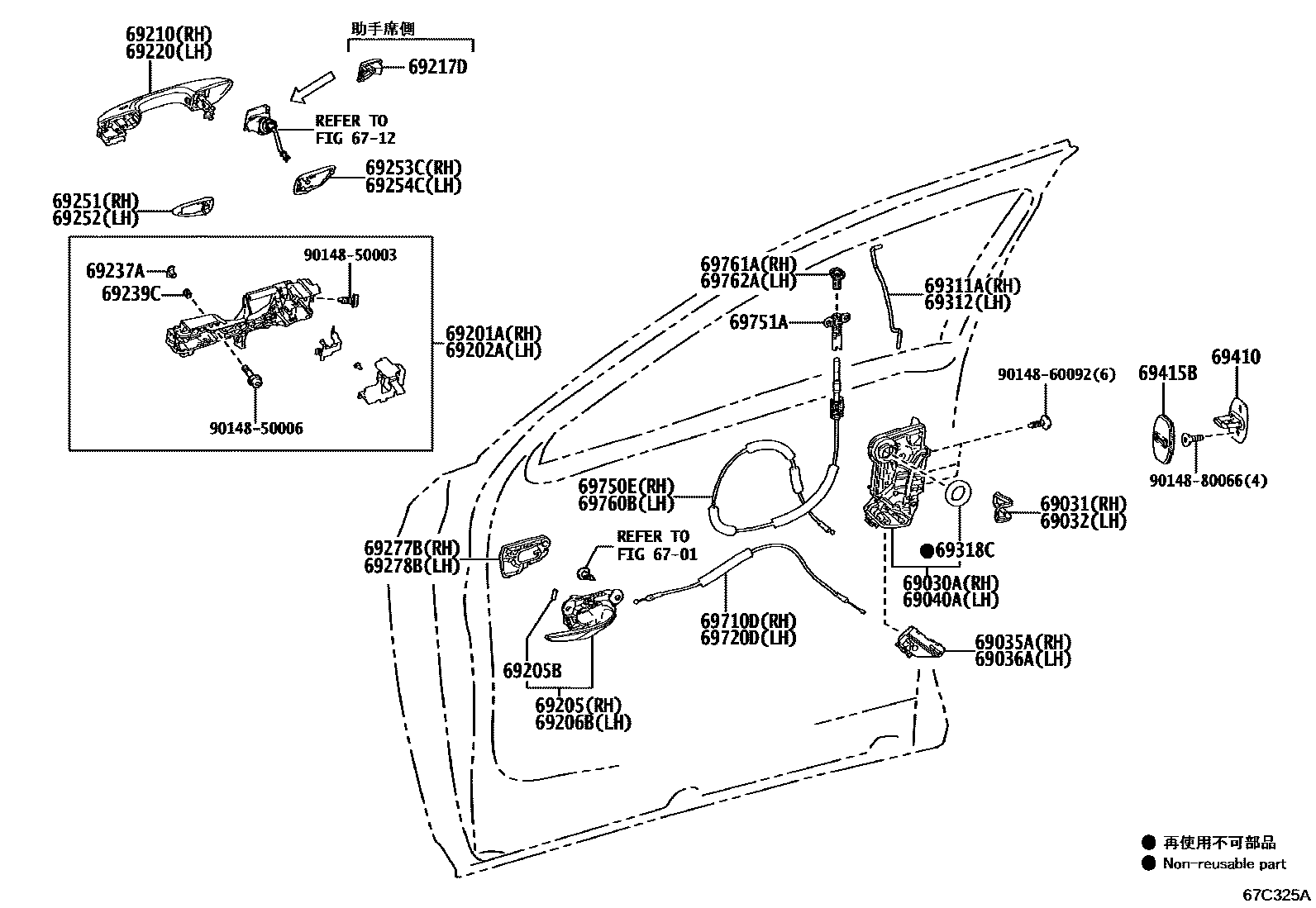

FRONT DOOR LOCK & HANDLE

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

6712LOCK CYLINDER SET

→ Go to FIG 67-12

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-76011iKMA10202207-202401

69031COVER SET, DOOR LOCK, RH

main69031-76010iKMA10202207-202401

69032COVER SET, DOOR LOCK, LH

main69032-76010iKMA10202207-202401

69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH

main69035-30010iKMA10202207-202401

69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH

main69036-30010iKMA10202207-202401

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-76011iKMA10202207-202401

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-76030iKMA10202207-202401

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-76040iKMA10202401-202512

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69270-76010iKMA10202207-202401

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main69275-30070×2iKMA10202207-202401

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69280-76010iKMA10202207-202401

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-33161-A0iMZAA10,MZAH10,15202207

WHITE NOVA GF.,083 ,2LJ ,2XN

main69210-33161-A1iKMA10202207-202401

SONIC QUARTZ,085

main69210-33161-B2iMZAA10,MZAH10,15202207

SONIC TITANIUM,1J7

main69210-33161-B3iMZAA10,MZAH10,15202207

SONIC CHROME,1L1 ,2XP ,2ZG

main69210-33161-B4iMZAA10,MZAH10,15202207

SONIC IRIDIUM,1L2 ,2XQ ,2ZH

main69210-33161-C0iKMA10202207-202401

BLACK,212

main69210-33161-C1iMZAA10,MZAH10,15202207

GRAPHITE BLACK GF.,223

main69210-33161-D1iMZAA10,MZAH10,15202207

MADDER RED,2LN ,2XR ,3T2

main69210-33161-E2iKMA10202304-202401

BLAZING CARNELIAN CONTRAS,4Y1

main69210-33161-G1iMZAA10,MZAH10,15202207

TERRANE KHAKI M.M.,6X4

main69210-33161-J0iMZAA10,MZAH10,15202207

HEAT BLUE CONTRAST LAYERI,2QF ,2XT ,8X1

main69210-33161-J2iMZAA10,MZAH10,15202207

CELESTIAL BLUE GF.,8Y6

main69210-76020-A0supersedes 69210-33161-A0iMZAH11,16202401

main69210-76020-A1supersedes 69210-33161-A1iKMA10,MZAH11,16202401-202512

main69210-76020-B0supersedes 69210-33161-B2iMZAH11,16202401

main69210-76020-B1supersedes 69210-33161-B3iMZAH11,16202401

main69210-76020-B2supersedes 69210-33161-B4iMZAH11,16202401

main69210-76020-C0supersedes 69210-33161-C0iKMA10,MZAH11,16202401-202512

main69210-76020-C1supersedes 69210-33161-C1iMZAH11,16202401

main69210-76020-D0supersedes 69210-33161-D1iKMA10; MZAH11,16202401-202512

main69210-76020-E0supersedes 69210-33161-E3iKMA10202401-202512

main69210-76020-G0supersedes 69210-33161-G1iKMA10202401-202512

main69210-76020-J0supersedes 69210-33161-J0iMZAH11,16202401

main69210-76020-J1supersedes 69210-33161-J2iKMA10,MZAH11,16202401-202512

69217DCOVER, FRONT DOOR OUTSIDE HANDLE

main69218-50060iMZAA10,MZAH10,15202207

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-33071-A0iMZAA10,MZAH10,15202207

WHITE NOVA GF.,083 ,2LJ ,2XN

main69220-33071-A1iKMA10202207-202401

SONIC QUARTZ,085

main69220-33071-B2iMZAA10,MZAH10,15202207

SONIC TITANIUM,1J7

main69220-33071-B3iMZAA10,MZAH10,15202207

SONIC CHROME,1L1 ,2XP ,2ZG

main69220-33071-B4iMZAA10,MZAH10,15202207

SONIC IRIDIUM,1L2 ,2XQ ,2ZH

main69220-33071-C0iMZAA10,MZAH10,15202207

BLACK,212

main69220-33071-C1iMZAA10,MZAH10,15202207

GRAPHITE BLACK GF.,223

main69220-33071-D1iMZAA10,MZAH10,15202207

MADDER RED,2LN ,2XR ,3T2

main69220-33071-E2iKMA10202304-202401

BLAZING CARNELIAN CONTRAS,4Y1

main69220-33071-G1iMZAA10,MZAH10,15202207

TERRANE KHAKI M.M.,6X4

main69220-33071-J0iMZAA10,MZAH10,15202207

HEAT BLUE CONTRAST LAYERI,2QF ,2XT ,8X1

main69220-33071-J2iKMA10202207-202401

CELESTIAL BLUE GF.,8Y6

main69220-76040-A0supersedes 69220-33071-A0iMZAH11,16202401

main69220-76040-A1supersedes 69220-33071-A1iKMA10,MZAH11,16202401-202512

main69220-76040-B0supersedes 69220-33071-B2iKMA10202401-202512

main69220-76040-B1supersedes 69220-33071-B3iMZAH11,16202401

main69220-76040-B2supersedes 69220-33071-B4iKMA10202401-202512

main69220-76040-C0supersedes 69220-33071-C0iKMA10,MZAH11,16202401-202512

main69220-76040-C1supersedes 69220-33071-C1iKMA10202401-202512

main69220-76040-D0supersedes 69220-33071-D1iKMA10; MZAH11,16202401-202512

main69220-76040-E0supersedes 69220-33071-E3iKMA10202401-202512

main69220-76040-G0supersedes 69220-33071-G1iMZAH11,16202401

main69220-76040-J0supersedes 69220-33071-J0iMZAH11,16202401

main69220-76040-J1supersedes 69220-33071-J2iKMA10,MZAH11,16202401-202512

69237ANUT, FRONT DOOR HANDLE

main69237-62010×2iKMA10202207-202401

69239CBUSH, FRONT DOOR HANDLE

main69239-47010×2iMZAA10,MZAH10,15202207

69251PAD, FRONT DOOR OUTSIDE HANDLE, FRONT RH

main69241-50040iKMA10202207-202401

69252PAD, FRONT DOOR OUTSIDE HANDLE, FRONT LH

main69242-50040iKMA10202207-202401

69253CPAD, FRONT DOOR OUTSIDE HANDLE, REAR RH

main69241-50050iKMA10202207-202401

69254CPAD, FRONT DOOR OUTSIDE HANDLE, REAR LH

main69242-50050iKMA10202207-202401

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-76040iKMA10202207-202401

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69278-76040iKMA10202207-202401

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-76020iKMA10202207-202401

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-76020iKMA10202207-202401

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010×2iKMA10202207-202401

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-30060×2iMZAA10,MZAH1#202207-202208

main69410-76010×2iKMA10202208-202401

69415BCOVER, DOOR LOCK STRIKER, FRONT

main69415-76011×2iKMA10202207-202401

69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)

main69710-76020iKMA10202207-202401

69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)

main69710-76020iKMA10202207-202401

69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)

main69750-76021iKMA10202207-202401

69751AHOLDER, DOOR LOCKING(FOR FRONT DOOR)

main69751-76010×2iKMA10202207-202401

69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)

main69750-76021iKMA10202207-202401

69761ABEZEL, DOOR LOCK CONTROL KNOB, RH

main69761-76010-C0iKMA10202304-202401

BLACK,TRIM0#,1#,2#,4#

69762ABEZEL, DOOR LOCK CONTROL KNOB, LH

main69761-76010-C0iKMA10202304-202401

BLACK,TRIM0#,1#,2#,4#

9014850003

main90148-50003

9014850006

main90148-50006

9014860092

main90148-60092

9014880066

main90148-80066

40 parts on this diagram · 1 diagram in section
