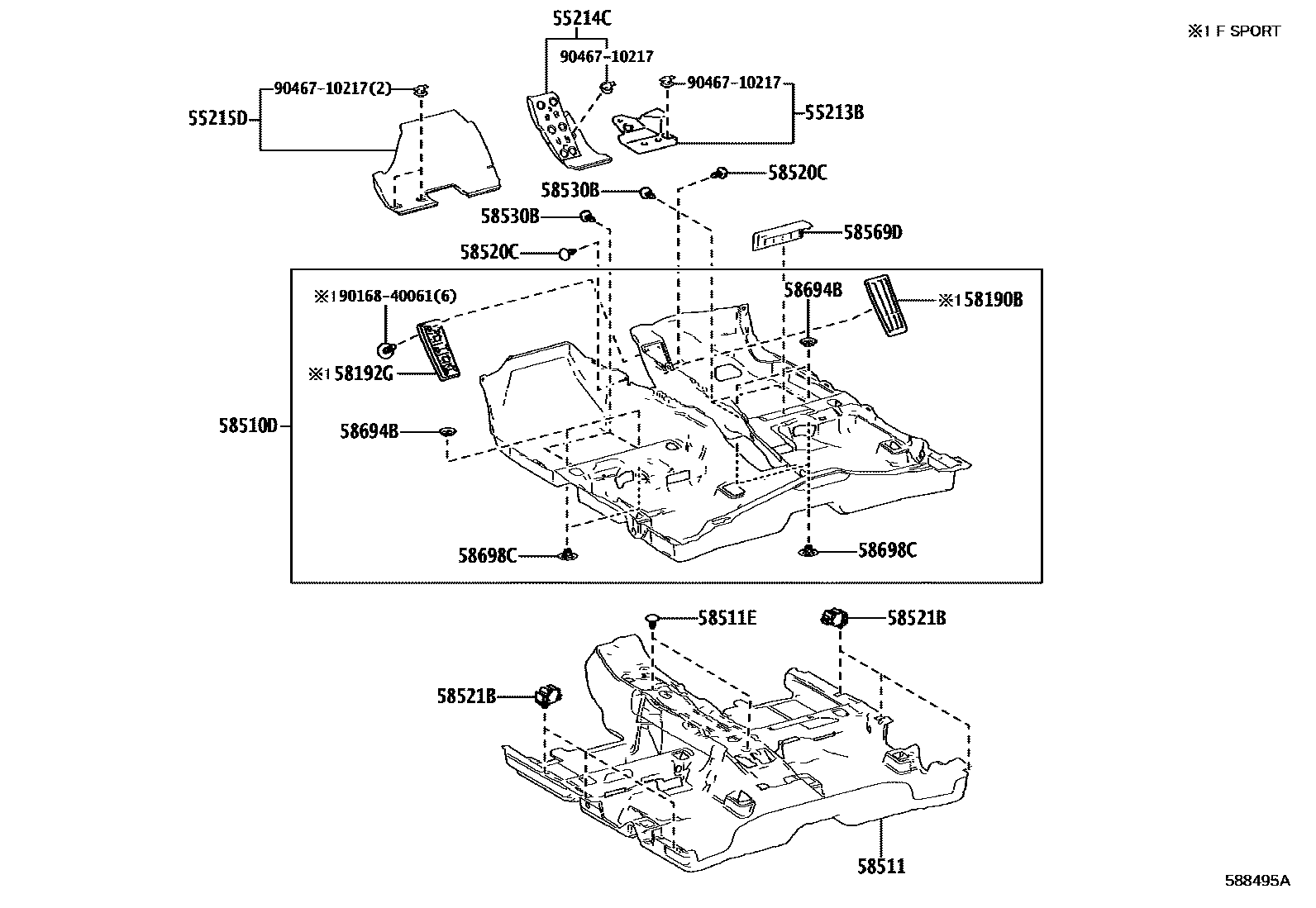

MAT & CARPET
55213BPAD, DASH PANEL INSULATOR, NO.1
55214CPAD, DASH PANEL INSULATOR, NO.2
55215DPAD, DASH PANEL INSULATOR, NO.3
58190BREST ASSY, FRONT FLOOR FOOT
58192GPANEL, FOOTREST, NO.2
58510DCARPET ASSY, FLOOR, FRONT
BLACK,TRIM0#,1#,2#,3#,4#,8#
BLACK,TRIM0#,1#,2#,3#,4#,8#
BLACK,TRIM0#,1#,2#,4#,8#
BLACK,TRIM0#,1#,2#,4#
58511MAT, FLOOR, FRONT
58511ECLIP(FOR FRONT FLOOR MAT)
BLACK
58520CCLIP(FOR FRONT FLOOR CARPET)
BLACK,TRIM0#,1#,2#,4#
58521BHOOK, FLOOR CARPET
58530BCLIP(FOR FRONT FLOOR CARPET)
BLACK,TRIM0#,1#,2#,3#,4#,8#
BLACK,TRIM0#,1#,2#,4#
58569DCOVER, FRONT FLOOR CAUTION PLATE
BLACK,TRIM0#,1#,2#,3#,4#,8#
BLACK,TRIM0#,1#,2#,4#
58694BPLATE, MAT SET, UPPER
58698CPLATE, MAT SET, LOWER
9016840061
main90168-40061
9046710217
main90467-10217
16 parts on this diagram · 4 diagrams in section
