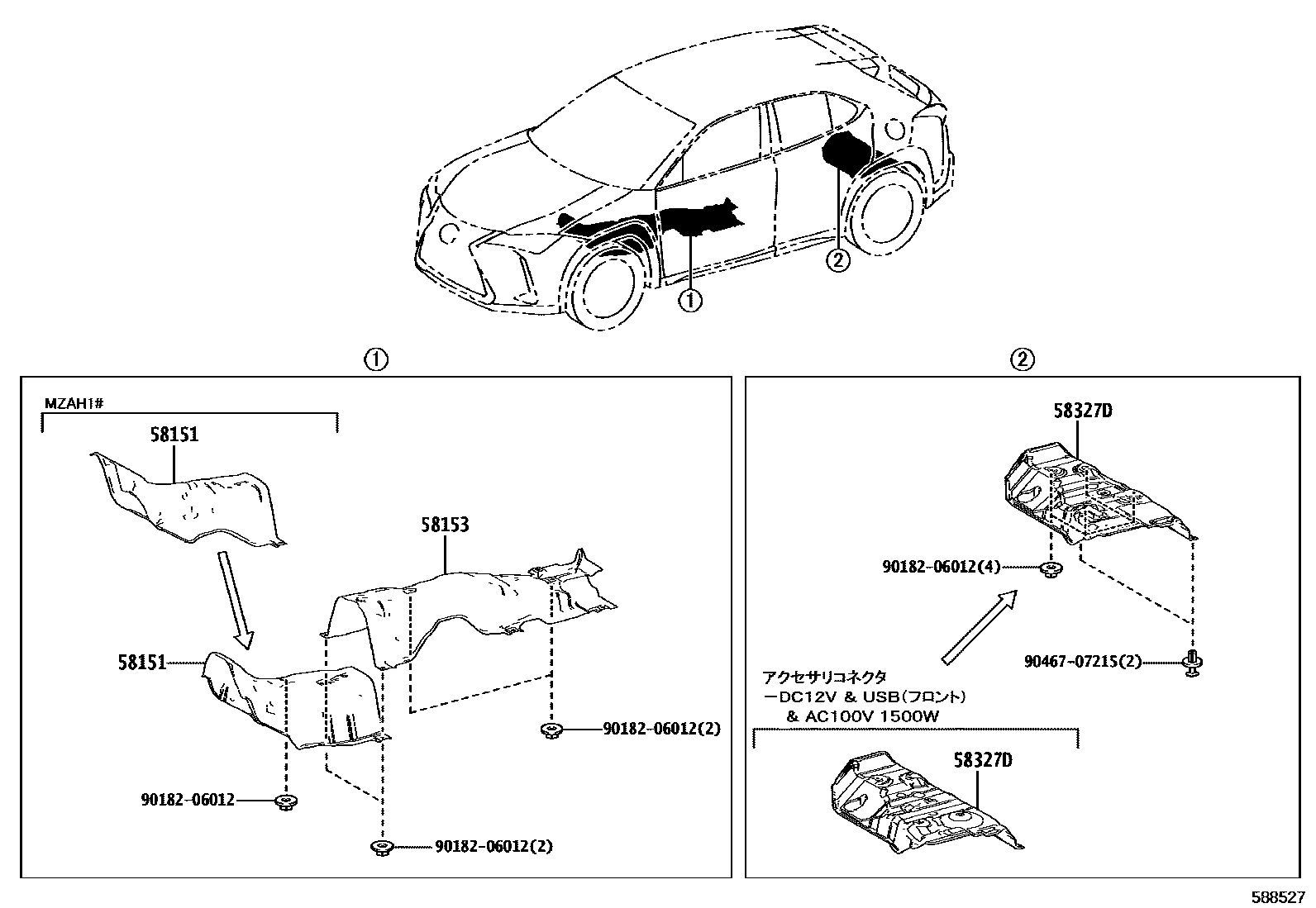

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-12410iMZAA10202207

main58151-76020iMZAH10,15202207

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-12231iMZAA10,MZAH10,15202207

58327DINSULATOR, MAIN MUFFLER HEAT, UPPER

main58327-76020iMZAA10,MZAH10,15202207

main58327-76030iMZAH10,15202207

main5832A-76020supersedes 5832A-76010iMZAH11,16202401

9018206012

main90182-06012

9046707215

main90467-07215

5 parts on this diagram · 1 diagram in section
