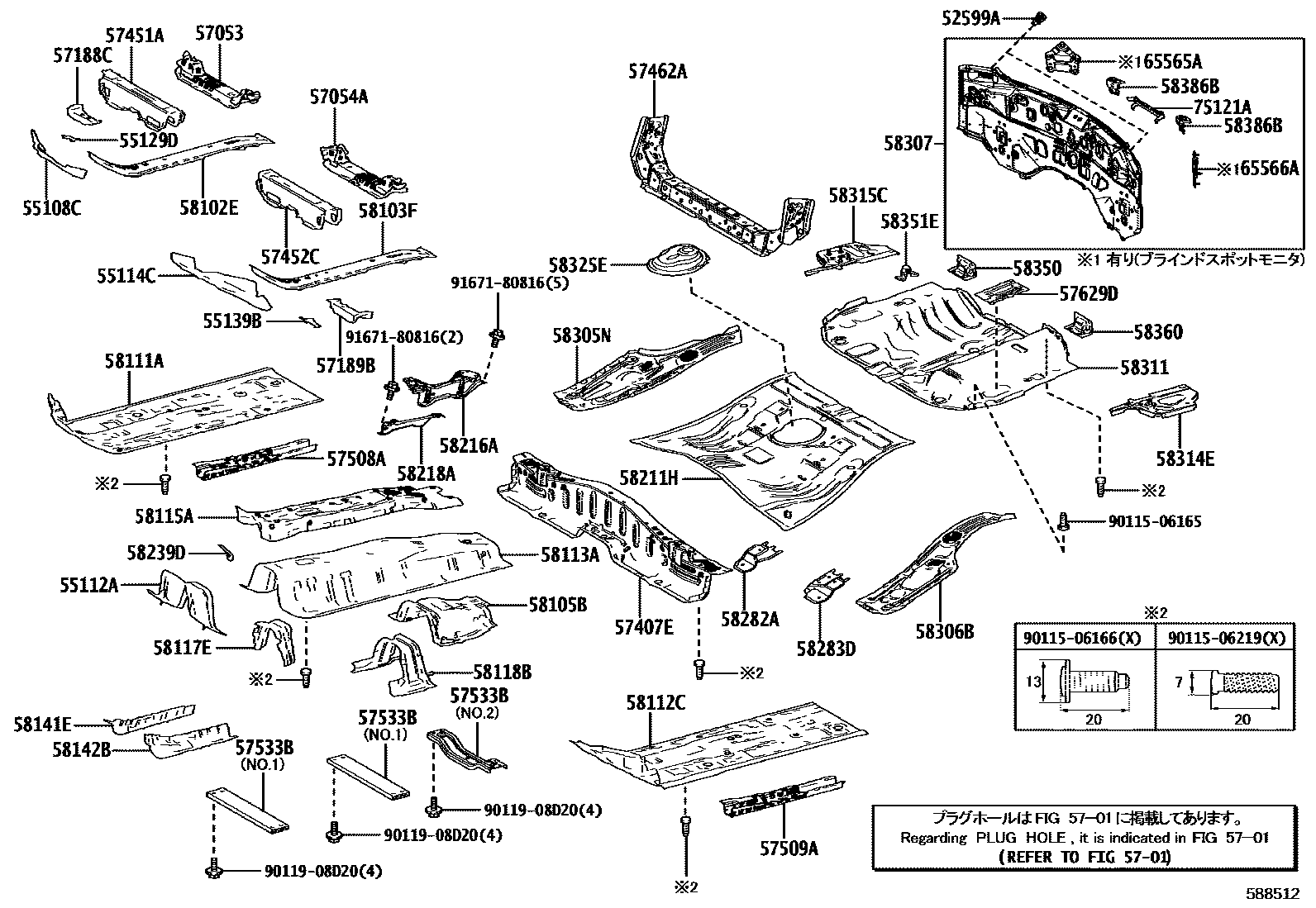

FLOOR PAN & LOWER BACK PANEL

0001 1������ & ����������� 0002 1������ & ����������� 0003 1������ & ����������� 0004 1������ & ����������� 0005 1������ & ����������� 0006 1����������� 0007 1����������� 0008 1������ & ����������� 0009 1����������� 1/2 0010 1����������� 2/2

52599ASTOPPER, REAR BUMPER, UPPER

main52599-76010×2iMZAA10,MZAH10,15202207

55108CBRACE SUB-ASSY, DASH TO FRAME, RH

main55108-76010iMZAA10,MZAH10,15202207

55112APANEL, DASH, NO.2

main55112-47040iMZAH11,16202401

main55112-76010iKMA10202401-202512

55114CPANEL, DASH, LOWER LH

main55114-47050iKMA10202207-202401

55129DCOVER, DASH PANEL HOLE, RH

main55129-47021iKMA10202207-202401

55139BCOVER, DASH PANEL HOLE, LH

main55139-47021iKMA10202207-202401

5701HOLE PLUG

→ Go to FIG 57-01

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-12041iMZAA10,MZAH10,15202207-202307

main57053-76010iMZAA10,MZAH10,15202307

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-76010iMZAA10,MZAH10,15202207

57188CREINFORCEMENT, FRONT SIDE MEMBER EXTENSION, RH

main57188-76010iMZAA10,MZAH10,15202207

main57188-76020iKMA10202401-202512

57189BREINFORCEMENT, FRONT SIDE MEMBER EXTENSION, LH

main57189-47020iMZAA10,MZAH10,15202207

main57189-76010iKMA10202304-202401

57407EMEMBER SUB-ASSY, CENTER FLOOR CROSS

main57407-10070iMZAA10202207

main57407-47021iMZAH10,15202207

main57407-76010iKMA10202304-202401

57451AMEMBER, FRONT FLOOR CROSS, RH

main57451-47040iMZAA10,MZAH10,15202207

57452CMEMBER, FRONT FLOOR CROSS, LH

main57452-47010iMZAA10,MZAH10,15202207

57462AMEMBER, CENTER FLOOR CROSS, NO.2

main57405-47011iMZAH11,16202401

57508AREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH

main57508-10010iMZAA10,MZAH10,15202207

57509AREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH

main57508-10010iMZAA10,MZAH10,15202207

57533BBRACE, FRONT FLOOR, CENTER

main57533-10010iMZAA10,MZAH10,15202207

main57533-47030×2iMZAH11,16202401

57629DPLATE, REAR FLOOR SIDE MEMBER, LH

main57629-12070iKMA10202207-202401

58102EREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH

main58102-47020iMZAA10,MZAH10,15202207

58103FREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH

main58102-47020iMZAA10,MZAH10,15202207

58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB

main58105-12010iMZAA10,MZAH10,15202207

58111PAN, FRONT FLOOR

main58111-76030iKMA10202304-202401

58111APAN, FRONT FLOOR, RH

main58111-10201iMZAA10,MZAH1#202207-202208

main58111-10210iMZAA10,MZAH10,15202208

58112CPAN, FRONT FLOOR, LH

main58112-10041iMZAA10,MZAH1#202207-202208

main58112-10050iMZAA10,MZAH10,15202208

main58113-76020iKMA10202401-202512

58113APANEL, FRONT FLOOR, CENTER

main58113-10080iMZAA10,MZAH10,15202207

main58113-76030iMZAH11,16202401

58115REINFORCEMENT, FRONT FLOOR PANEL, FRONT

main57045-76010iKMA10202304-202401

58115AREINFORCEMENT, FRONT FLOOR PANEL

main58015-47050iMZAA10,MZAH10,15202207

58117EPANEL, FRONT FLOOR SUB COVER

main58117-47040iMZAA10,MZAH10,15202207

58118BREINFORCEMENT, FRONT FLOOR PANEL, NO.2

main58118-47030iMZAA10,MZAH10,15202207

58141EREINFORCEMENT, FRONT SIDE MEMBER TO FLOOR PAN, RH

main58141-47011iMZAH11,16202401

58142BREINFORCEMNET, FRONT SIDE MEMBER TO FLOOR PAN, LH

main58142-47012iMZAA10,MZAH10,15202207

58211HPAN, CENTER FLOOR

main58211-12800iMZAA10202207

main58211-47100iMZAH10,15202207

main58211-76010iKMA10202304-202401

58216APANEL, SHIFT LEVER HOUSING, NO.1

main58216-76020iMZAA10,MZAH10,15202207

58218APANEL, SHIFT LEVER HOUSING, NO.2

main58218-76020iMZAA10,MZAH10,15202207

58239DBRACKET, CABLE CLAMP

main58239-12030iMZAA10,MZAH10,15202207

58282ABASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH

main58282-47050iMZAH11,16202401

main58282-76010iKMA10202401-202512

58283DBASE, BELT ANCHOR TO FLOOR PAN, NO.3 LH

main58283-47040iMZAA10,MZAH10,15202207

main58283-76010iKMA10202304-202401

58305NEXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, RH

main58305-12060iKMA10202207-202401

main58305-47051iMZAH10,15202207

58306BEXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, LH

main58306-12040iMZAA10202207

main58306-47051iMZAH10,15202207

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-76060iMZAH11,16202401

main58307-76021supersedes 58307-76041iMZAA10,MZAH10,15202207

58311PAN, REAR FLOOR

main58311-47130supersedes 58311-76020iKMA10202304-202401

main58311-76020iMZAA10,MZAH10202207

main58311-47140supersedes 58311-76030iMZAH15202207

58314EEXTENSION, REAR FLOOR SIDE PANEL, LH

main58316-76010iKMA10202207-202401

58315CEXTENSION, REAR FLOOR SIDE PANEL, RH

main58315-76010iKMA10202207-202401

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-10031iMZAA10202207

main58325-47051iMZAH11,16202401

58350REINFORCEMENT ASSY, REAR FLOOR PANEL, RH

main58350-47010iKMA10202207-202401

58351EBRACKET, SPARE WHEEL CLAMP

main58351-33020iMZAA10,MZAH10202207

main58351-12070iKMA10202304-202401

58360REINFORCEMENT ASSY, REAR FLOOR PANEL, LH

main58350-47010iMZAA10,MZAH10,15202207

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-47020×2iKMA10202401-202512

65565APATCH, SIDE PANEL REAR END, RH

main65565-50010iMZAH11,16202401

main65565-33050iMZAA10,MZAH10,15202207

65566APATCH, SIDE PANEL REAR END, LH

main65565-50010iMZAH11,16202401

main65565-33050iMZAA10,MZAH10,15202207

75121ABRACKET, REAR LICENSE PLATE

main75121-76010iKMA10202207-202401

9011506165

main90115-06165

9011506166

main90115-06166

9011506219

main90115-06219

9011908D20

main90119-08D20

9167180816

main91671-80816
