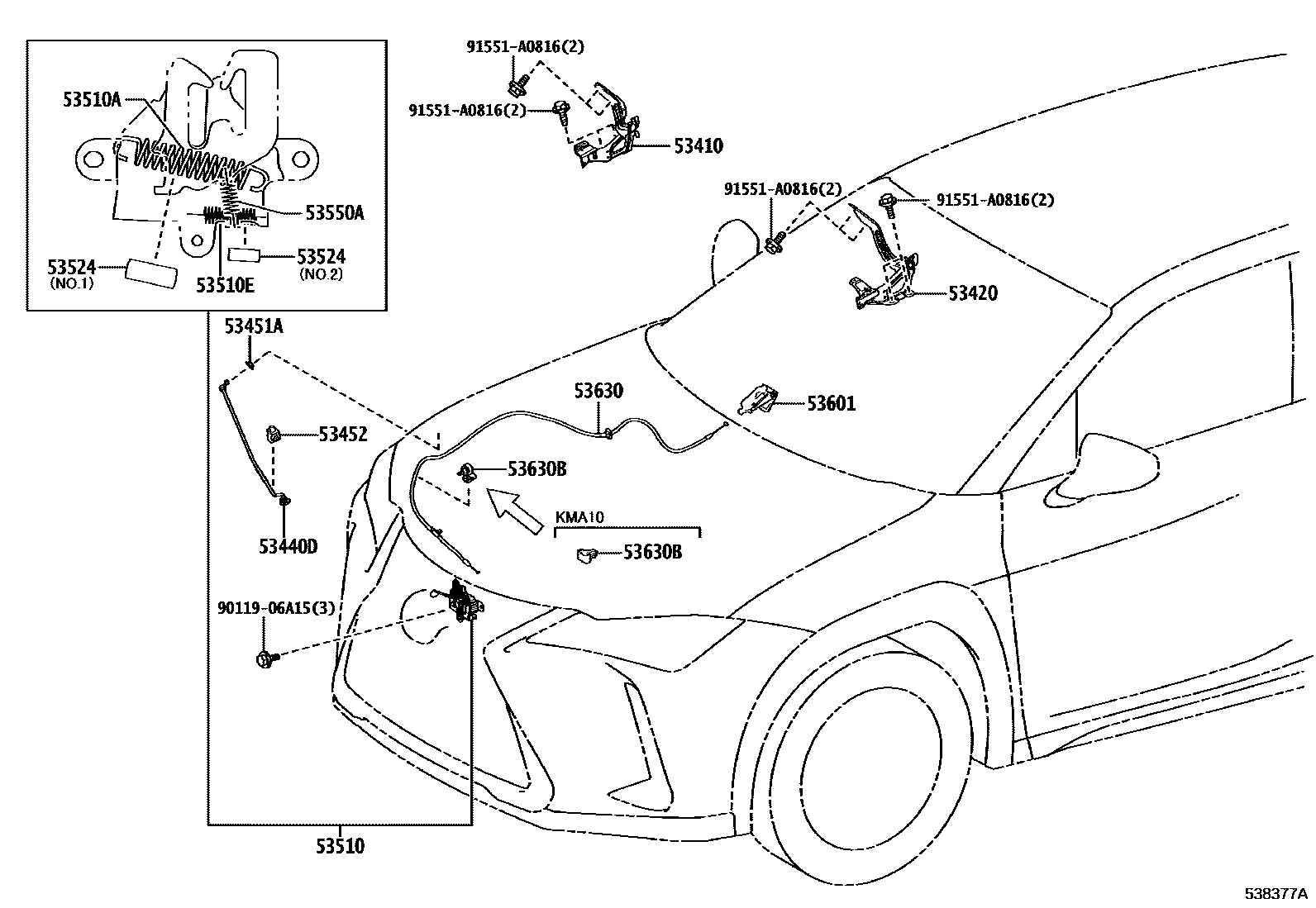

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-76051iMZAA10,MZAH10,15202207

53420HINGE ASSY, HOOD, LH

main53420-76051iKMA10202207-202401

53440DSUPPORT ASSY, HOOD

main53440-76020iKMA10,MZAA10,MZAH1#202207-202306

main53440-76021iKMA10202307-202401

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15025iKMA10202207-202401

53452HOLDER, HOOD STAY

main53452-76020iKMA10202207-202401

53510LOCK ASSY, HOOD

main53510-76051iKMA10202207-202401

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-16080iMZAH11,16202401

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-09055iKMA10202401-202512

53524DAMPER, HOOD LOCK SPRING

main53524-30020iMZAA10,MZAH10,15202207

main53524-30040iMZAH11,16202401

53550ASPRING, TORSION(FOR HOOD LOCK HOOK)

main90506-12063iKMA10202401-202512

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-30110-C0iMZAA10,MZAH10,15202207

BLACK,TRIM0#,1#,2#,3#,4#,8#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-76040iKMA10202401-202512

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main82711-1E340iKMA10202304-202401

main90959-01369iMZAA10,MZAH10,15202207

9011906A15

main90119-06A15

91551A0816

main91551-A0816

15 parts on this diagram · 1 diagram in section
