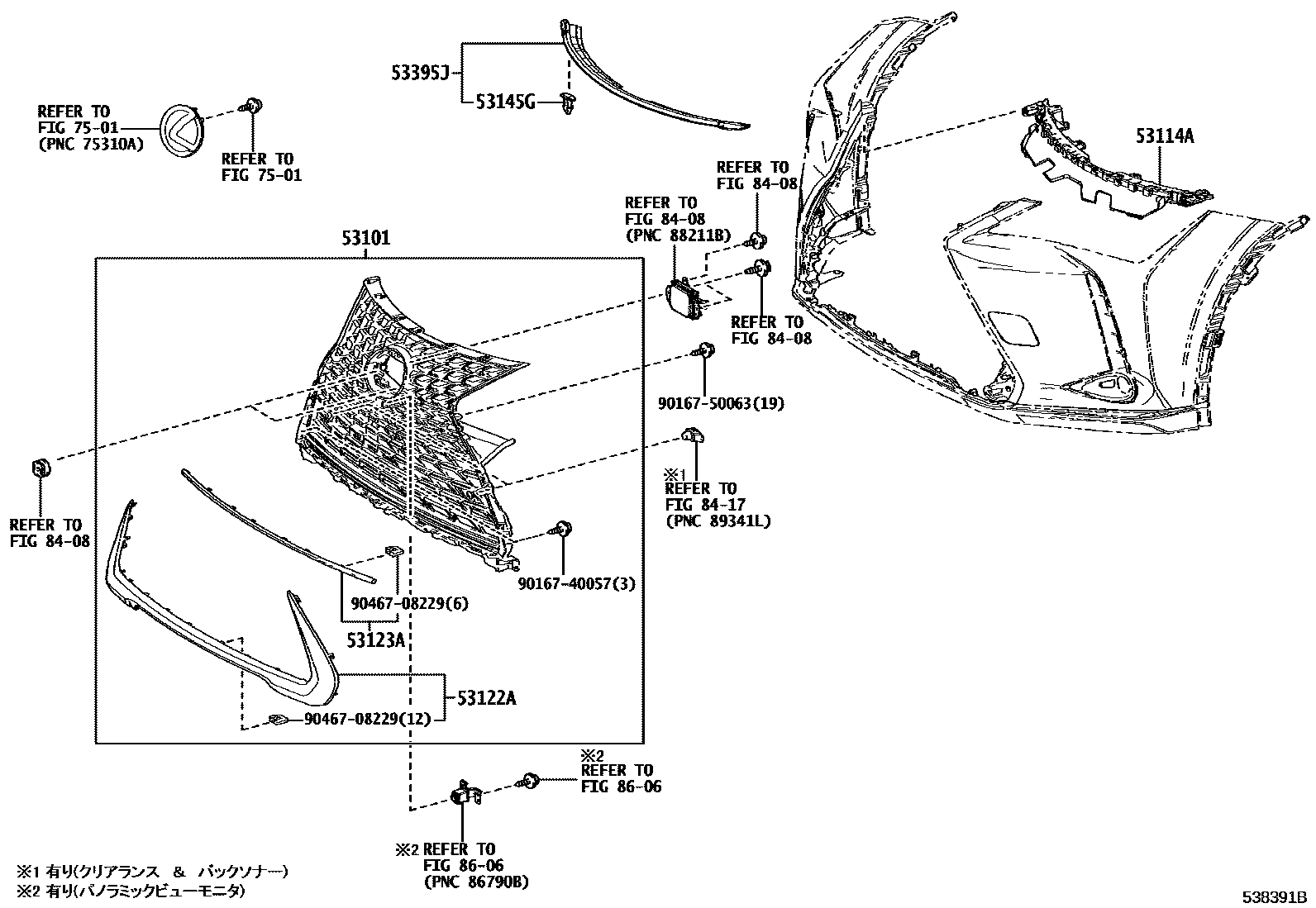

RADIATOR GRILLE

0001 1 0002 1F SPORT 0003 1

53101GRILLE SUB-ASSY, RADIATOR

main53101-76350supersedes 53101-76230iMZAA10,MZAH10,15202207

main53101-76680supersedes 53101-76230iMZAA10,MZAH10,15202207

main53101-76710supersedes 53101-76230iMZAA10,MZAH10,15202207

main53101-76730supersedes 53101-76B20iKMA10202304-202401

main53101-76750supersedes 53101-76230iMZAA10,MZAH10,15202207

main53101-76760supersedes 53101-76230iMZAA10,MZAH10,15202207

main53101-76860supersedes 53101-76850iMZAH11,16202401-202512

main53101-76A40supersedes 53101-76850iMZAH11,16202401

main53101-76A50supersedes 53101-76850iMZAH11,16202401

main53101-76B30supersedes 53101-76B20iKMA10202401-202512

main53101-76B80supersedes 53101-76850iMZAH11,16202411-202512

53114AGRILLE, RADIATOR, INNER

main53114-76010iKMA10202207-202401

main53114-76020supersedes 53114-76010iMZAA10,MZAH10,15202207

53122AMOULDING, RADIATOR GRILLE, LOWER

main53122-76060×2iMZAH11,16202411-202512

main53122-76080supersedes 53122-76060iMZAA10,MZAH10,15202207

53123ACUSHION, RADIATOR GRILLE

main53123-76020iMZAA10,MZAH10,15202207

53145GCLIP, RADIATOR GRILLE

main53145-60030×12iKMA10202207-202401

53395JSEAL, HOOD TO FRONT END PANEL

main53395-76030iKMA10202207-202401

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

8417CLEARANCE & BACK SONAR

→ Go to FIG 84-17

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

9016740057

main90167-40057

9016750063

main90167-50063

9046708229

main90467-08229

13 parts on this diagram · 3 diagrams in section
