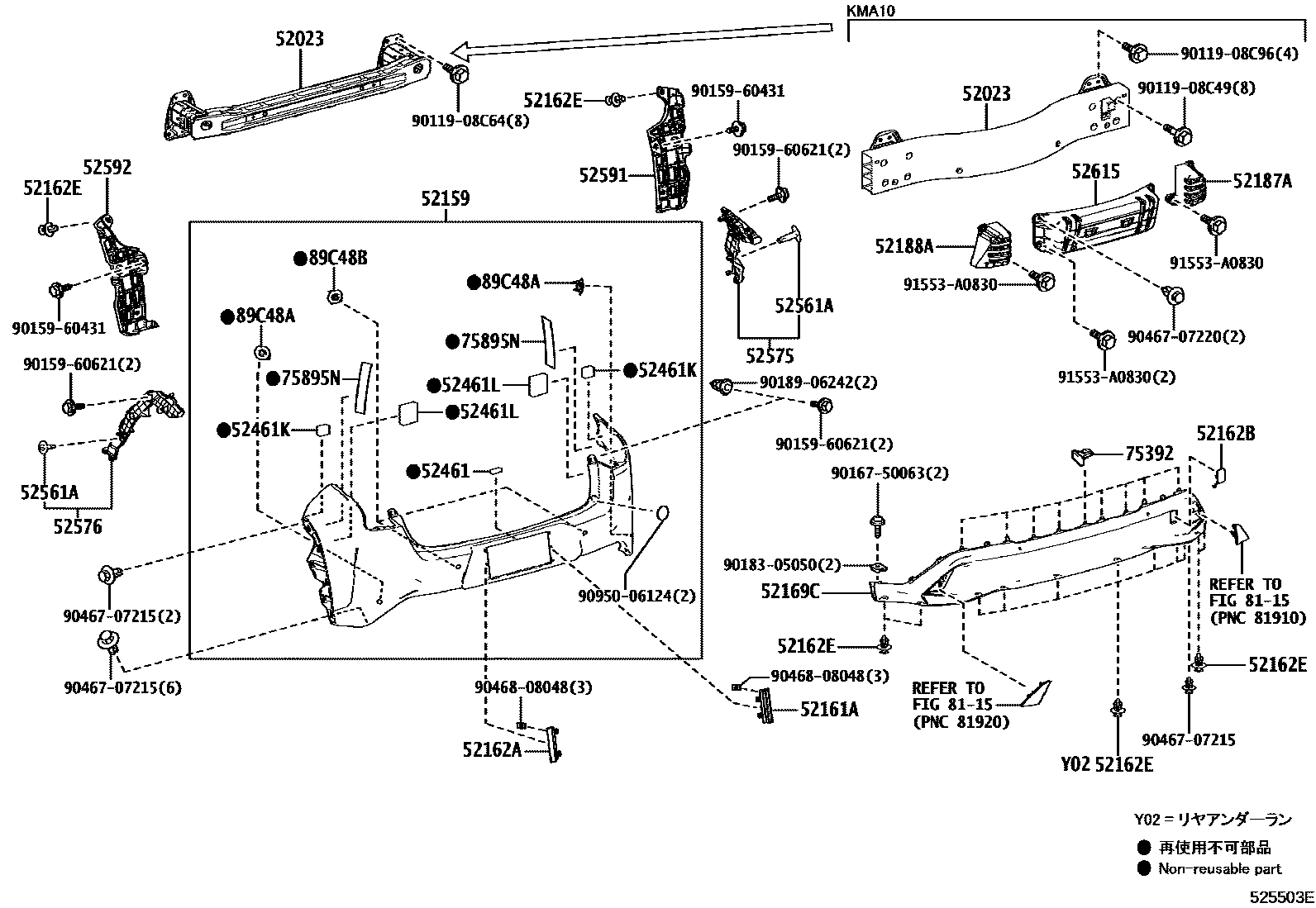

REAR BUMPER & BUMPER STAY
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
52159COVER, REAR BUMPER
SONIC QUARTZ,085
SONIC TITANIUM,1J7
SONIC IRIDIUM,1L2
BLACK,212
GRAPHITE BLACK GF.,223
MADDER RED,3T2
TERRANE KHAKI M.M.,6X4
CELESTIAL BLUE GF.,8Y6
SONIC QUARTZ,085
SONIC TITANIUM,1J7
BLACK,212
GRAPHITE BLACK GF.,223
MADDER RED,3T2
TERRANE KHAKI M.M.,6X4
CELESTIAL BLUE GF.,8Y6
52161APIECE, REAR BUMPER, RH
SONIC QUARTZ,085
SONIC TITANIUM,1J7
SONIC CHROME,1L1
SONIC IRIDIUM,1L2
BLACK,212
GRAPHITE BLACK GF.,223
MADDER RED,3T2
BLAZING CARNELIAN CONTRAS,4Y1
SONIC COPPER,4Y5
TERRANE KHAKI M.M.,6X4
CELESTIAL BLUE GF.,8Y6
52162APIECE, REAR BUMPER, LH
SONIC QUARTZ,085
SONIC TITANIUM,1J7
SONIC CHROME,1L1
SONIC IRIDIUM,1L2
BLACK,212
GRAPHITE BLACK GF.,223
MADDER RED,3T2
SONIC COPPER,4Y5
TERRANE KHAKI M.M.,6X4
CELESTIAL BLUE GF.,8Y6
52162BPLATE, REAR BUMPER, NO.1
52162EPIECE, REAR BUMPER
52169CCOVER, REAR BUMPER, LOWER
52187AREINFORCEMENT, REAR BUMPER ARM, RH
52188AREINFORCEMENT, REAR BUMPER ARM, LH
52461PAD, REAR BUMPER, CENTER
52461KPAD, REAR BUMPER, NO.1
52461LPAD, REAR BUMPER, NO.2
52561ACLIP(FOR REAR BUMPER RETAINER)
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
52591SEAL, REAR BUMPER SIDE, RH
52592SEAL, REAR BUMPER SIDE, LH
52615ABSORBER, REAR BUMPER ENERGY
75392RETAINER, OUTSIDE MOULDING
75895NTAPE, MOULDING, NO.1
8115REFLEX REFLECTOR
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
9011908C49
main90119-08C49
9011908C64
main90119-08C64
9011908C96
main90119-08C96
9015960431
main90159-60431
9015960621
main90159-60621
9016750063
main90167-50063
9018305050
main90183-05050
9018906242
main90189-06242
9046707215
main90467-07215
9046707220
main90467-07220
9046808048
main90468-08048
9095006124
main90950-06124
91553A0830
main91553-A0830
36 parts on this diagram · 2 diagrams in section
