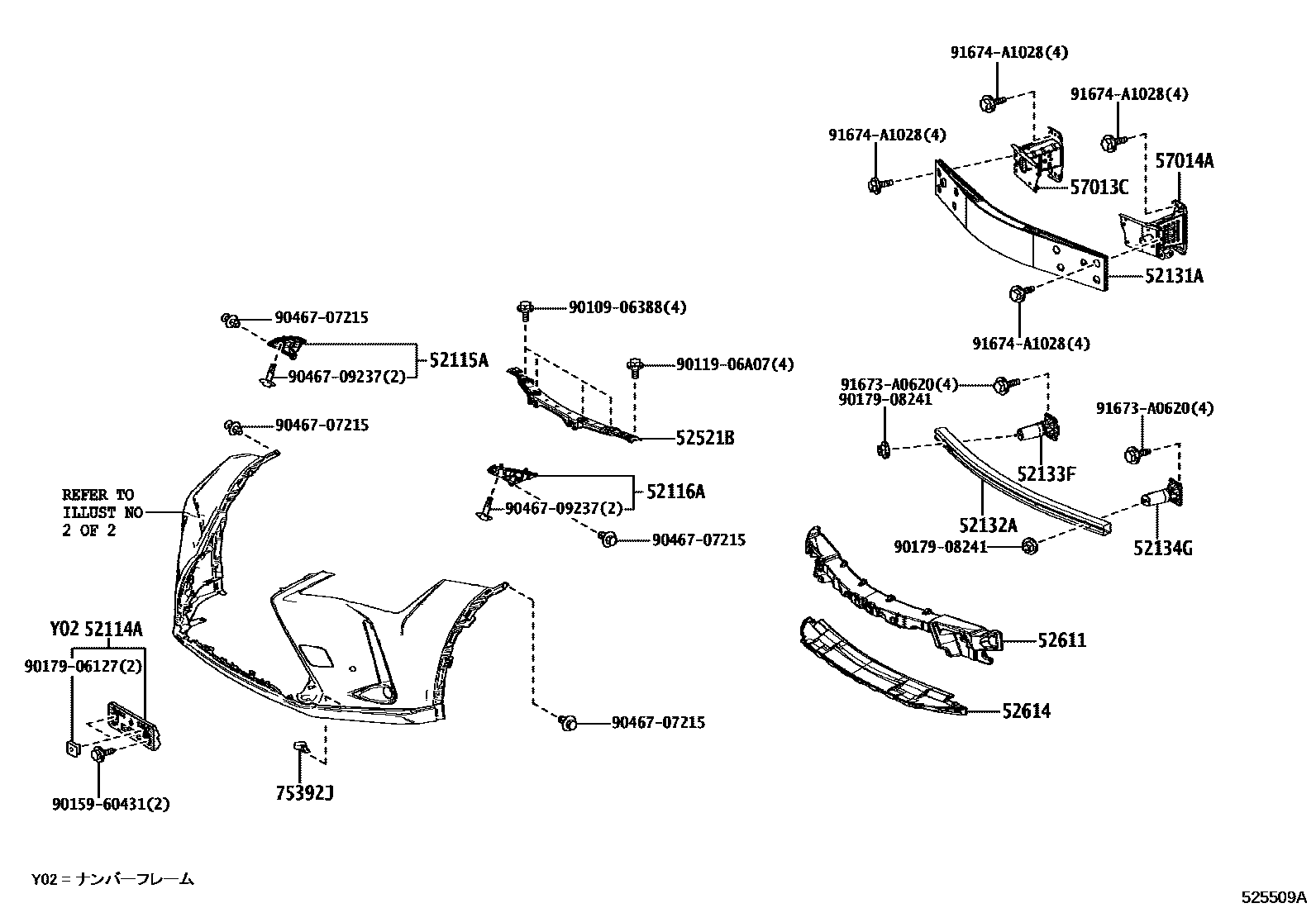

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1F SPORT 0004 1F SPORT

52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING

main52114-76250iKMA10,MZAA10,MZAH10,15202207

main52114-76290supersedes 52114-76250iMZAA10,MZAH10,15202207

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-76020iMZAA10,MZAH10,15202207

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-76020iKMA10202207-202401

52131AREINFORCEMENT, FRONT BUMPER

main52131-76050iKMA10,MZAA10,MZAH10,15202207

52132AREINFORCEMENT, FRONT BUMPER, NO.2

main52132-76030iKMA10202207-202401

main52132-76031iMZAH11,16202410

52133FBRACKET, FRONT BUMPER, RH

main52133-12190iKMA10202207-202401

52134GBRACKET, FRONT BUMPER, LH

main52133-12190iMZAH11,16202401

52521BRETAINER, FRONT BUMPER, UPPER

main52521-76010iMZAH11,16202401

52611ABSORBER, FRONT BUMPER ENERGY

main52611-76080iKMA10202207-202401

52614ABSORBER, FRONT BUMPER ENERGY, NO.2

main52614-76020iKMA10202401-202512

57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-76030iKMA10202304-202401

main57013-76040iMZAA10,MZAH10,15202207

57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-76030iKMA10202304-202401

main57014-76040iMZAH11,16202401

75392JRETAINER, OUTSIDE MOULDING

main75392-35220×4iMZAA10,MZAH10,15202207

9010906388

main90109-06388

9011906A07

main90119-06A07

9015960431

main90159-60431

9017906127

main90179-06127

9017908241

main90179-08241

9046707215

main90467-07215

9046709237

main90467-09237

91673A0620

main91673-A0620

91674A1028

main91674-A1028

22 parts on this diagram · 4 diagrams in section
