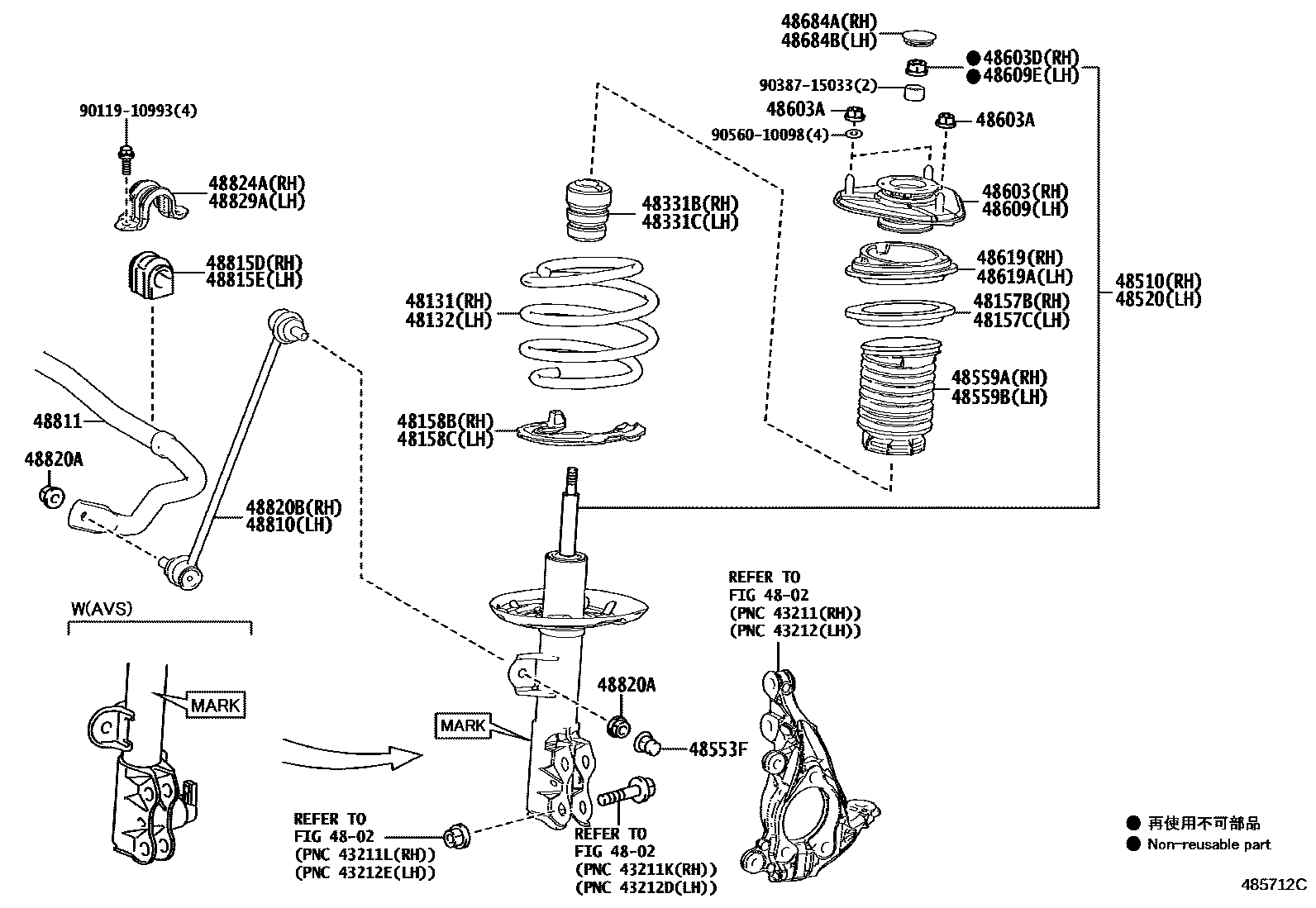

FRONT SPRING & SHOCK ABSORBER

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

48131SPRING, FRONT COIL, RH

main48131-76100iMZAH10,15202207

main48131-76110iMZAH11,16202401

main48131-76120iMZAA10202207

main48131-76130iKMA10202401-202512

main48131-76140iKMA10202304-202401

48132SPRING, FRONT COIL, LH

main48131-76100iMZAH10,15202207

main48131-76110iMZAH11,16202401

main48131-76120iMZAA10202207

main48131-76130iKMA10202401-202512

main48131-76140iKMA10202304-202401

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-47030iKMA10202207-202512

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-47030iMZAA10,MZAH10,15202207-202512

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-47020iMZAA10,MZAH10,15202207-202512

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-47020iKMA10202207-202512

48331BBUMPER, FRONT SPRING, RH

main48331-10120iKMA10202401-202512

main48331-47030iKMA10202207-202401

48331CBUMPER, FRONT SPRING, LH

main48331-10120iMZAH11,16202401-202512

main48331-47030iMZAA10,MZAH10,15202207-202401

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-79555iKMA10202401-202512

main48510-79675iMZAH11,16202207

main48510-79685iMZAA10202207

main48510-79695iKMA10202304-202512

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-79545iKMA10202401-202512

main48520-79665iMZAH11,16202207

main48520-79675iMZAA10202207

main48520-79685iKMA10202304-202512

48553FCAP

main48553-52030iMZAH11,16202207-202512

48559ACOVER, FRONT SHOCK ABSORBER DUST, RH NO.1

main48559-47010iKMA10202207-202512

48559BCOVER, FRONT SHOCK ABSORBER DUST, LH NO.1

main48559-47010iKMA10202207-202512

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-47060iKMA10202207-202512

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10029iKMA10202207-202512

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90177-14007iMZAA10,MZAH10,15202207-202512

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-47060iMZAA10,MZAH10,15202207-202512

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90177-14007iKMA10202207-202512

48619BEARING, STRUT MOUNTING, RH

main48619-47030iKMA10202310-202512

main48619-F4010iKMA10,MZAA10,MZAH1#202207-202309

48619ABEARING, STRUT MOUNTING, LH

main48619-47030iKMA10202310-202512

main48619-F4010iKMA10,MZAA10,MZAH1#202207-202309

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-52010iKMA10202207-202512

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-52010iKMA10202207-202512

48810LINK ASSY, FRONT STABILIZER, LH

main48820-47040iKMA10202207-202512

48811BAR, STABILIZER, FRONT

main48811-47090iMZAH11202207

main48811-76010iMZAH15202207

main48811-76020iKMA10202304-202512

48815DBUSH, FRONT STABILIZER BAR, RH

main48815-10130iMZAH16202207

main48815-76010iMZAA10,MZAH10202207

main48815-76020iKMA10202304-202512

48815EBUSH, FRONT STABILIZER BAR, LH

main48815-10130iMZAH15202207

main48815-76010iMZAH11202207

main48815-76020iKMA10202304-202512

48820ANUT(FOR FRONT STABILIZER LINK)

main94151-21241iKMA10202207-202512

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-47040iKMA10202207-202512

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-47020iKMA10202207-202512

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-47020iKMA10202207-202512

9011910993

main90119-10993

9038715033

main90387-15033

9056010098

main90560-10098

34 parts on this diagram · 1 diagram in section
