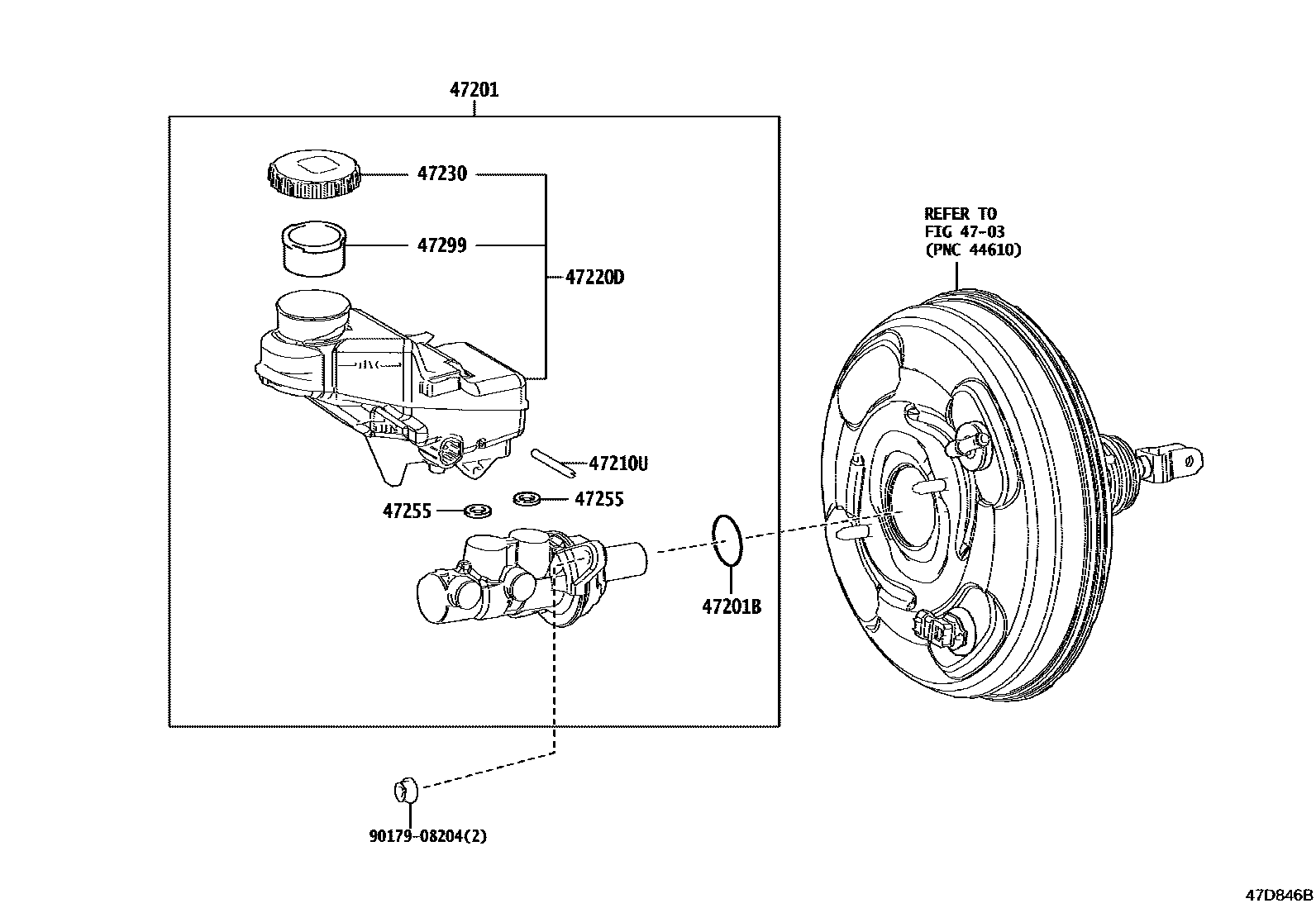

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-76010iMZAA10202207

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH001iMZAA10202207

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90015-AE401iMZAA10202207

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-76030iMZAA10202207

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-33072iMZAA10202207

main47230-47090iKMA10202401-202512

47255GROMMET, MASTER CYLINDER RESERVOIR

main90015-AT001×2iMZAA10202207

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-52110iMZAA10202207

9017908204

main90179-08204

9 parts on this diagram · 3 diagrams in section
