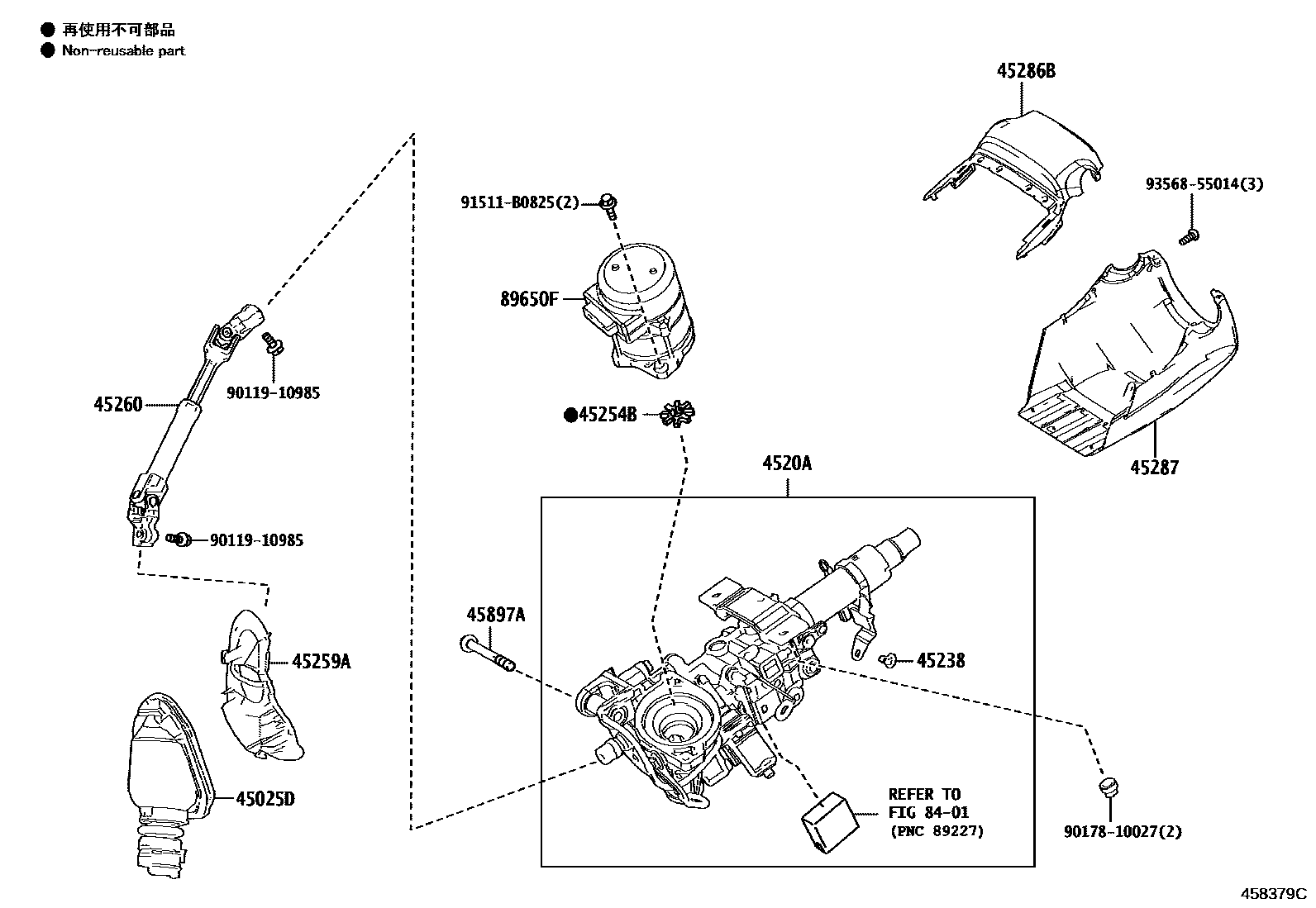

STEERING COLUMN & SHAFT

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-10110iKMA10202207-202401

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-76060iKMA10202207-202401

main4520A-76130iKMA10202401-202512

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-11010iKMA10202207-202401

45254BDAMPER, ELECTRIC POWER STEERING MOTOR SHAFT

main45254-28040iKMA10202207-202401

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-12170iKMA10202207-202401

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-76040iKMA10202207-202401

45286BCOVER, STEERING COLUMN, UPR

main45286-76020-C0iKMA10202304-202401

BLACK,TRIM0#,1#,2#,4#

45287COVER, STEERING COLUMN, LWR

main45024-76030-C0iKMA10202304-202401

BLACK,TRIM0#,1#,2#,4#

45897ABOLT, TILT STEERING PAWL SET

main90119-10981iKMA10202207-202401

main90119-10A34iMZAH11,16202401

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89650FCOMPUTER ASSY, POWER STEERING W/MOTOR

main89650-76540iMZAA10,MZAH10,15202207

main89650-76620iMZAH11,16202401

main89650-76580supersedes 89650-76620iKMA10202304-202401

9011910985

main90119-10985

9017810027

main90178-10027

91511B0825

main91511-B0825

9356855014

main93568-55014

15 parts on this diagram · 1 diagram in section
