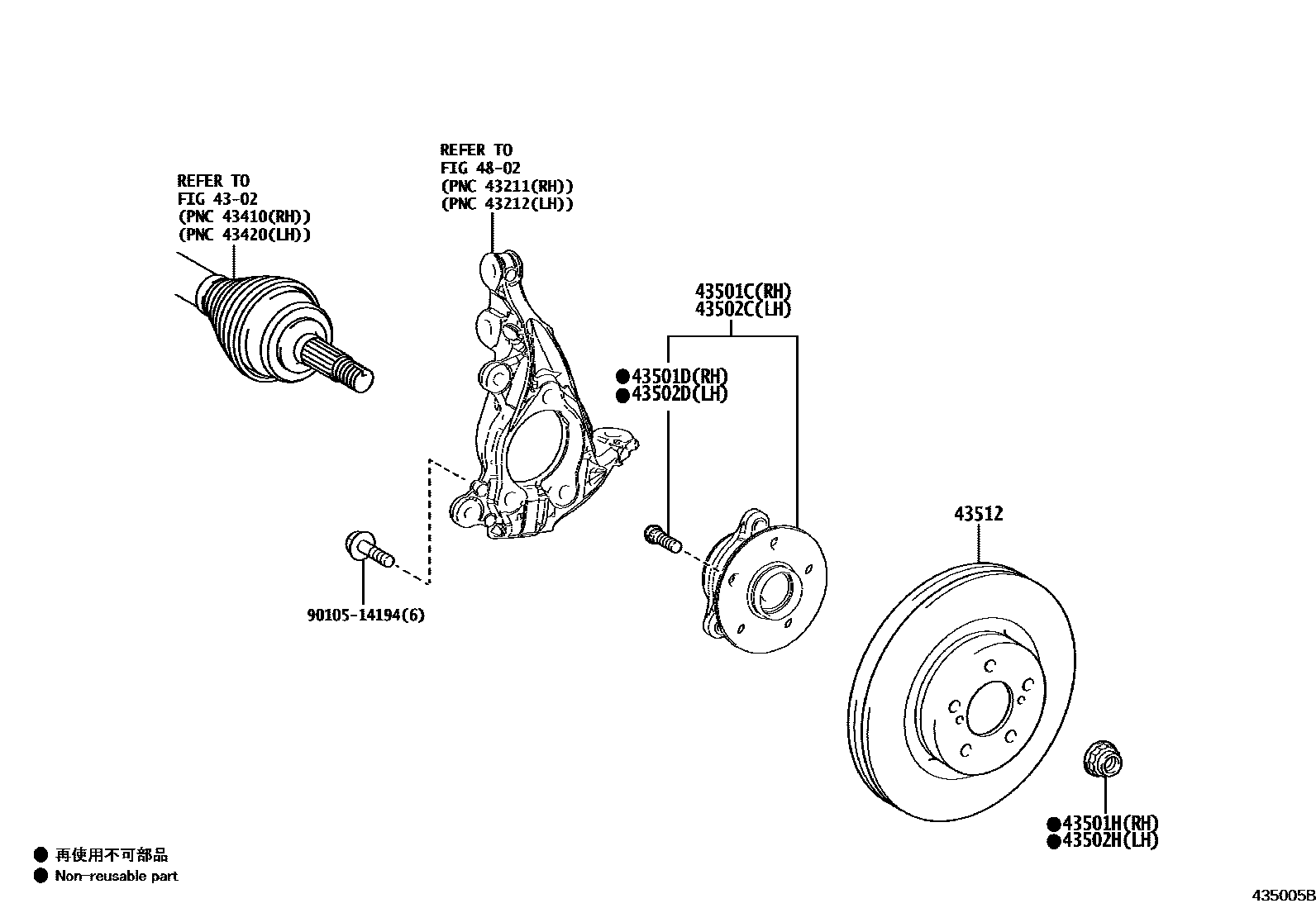

FRONT AXLE HUB

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-10010iMZAA10,MZAH10,15202207

main43550-76010iKMA10202401-202512

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5iMZAH11,16202401

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iKMA10202207-202401

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-10010iMZAH11,16202401

main43550-76010iKMA10202401-202512

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5iKMA10202207-202401

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iKMA10202207-202401

43512DISC, FRONT

main43512-76010×2iKMA10202207-202401

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

9010514194

main90105-14194

10 parts on this diagram · 1 diagram in section
