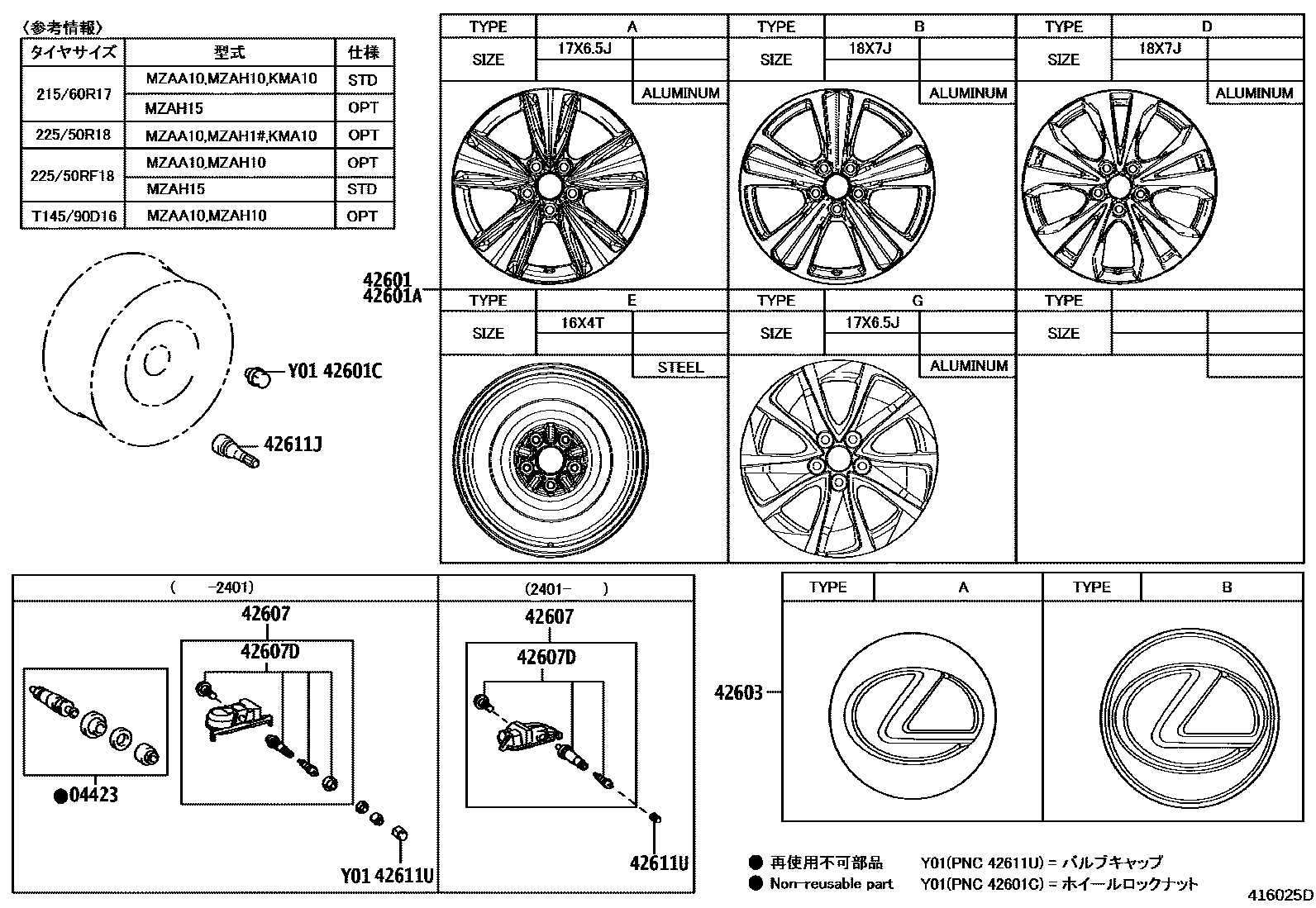

DISC WHEEL & WHEEL CAP

0001 1��������� & ������������� 0002 1���������

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-33060×4iMZAA10,MZAH10,15202207

42601WHEEL, DISC

main42611-76290×4iMZAA10,MZAH10,15202207

main42611-76340×4supersedes 42611-76330iKMA10202304-202401

main42611-76400×4iMZAA10,MZAH10,15202207

main4261A-76140×4iMZAH11,16202401

main4261A-76170×4iMZAA10,MZAH10,15202207

42601AWHEEL, DISC (FOR SPARE)

main42611-21280iMZAA10,MZAH10202207

42601CNUT, HUB (FOR AXLE)

main90942-01033×20iKMA10202207-202401

main90942-01115×20supersedes 90942-01033iMZAA10,MZAH10,15202207

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-50381×4supersedes 42603-50370iKMA10202401-202512

main42603-53110×4iMZAH11,16202411-202512

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-53020×4iKMA10202207-202401

main42607-76020×4iKMA10202401-202512

42607DVALVE, TIRE PRESSURE MONITOR

main90942-05044×4iKMA10202207-202401

main90942-05051×4iKMA10202401-202512

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iMZAH11202401

42611UCAP, TIRE VALVE

main90942-05042×4iKMA10202207-202401

main90942-05048×4iKMA10202401-202512

9 parts on this diagram · 2 diagrams in section
