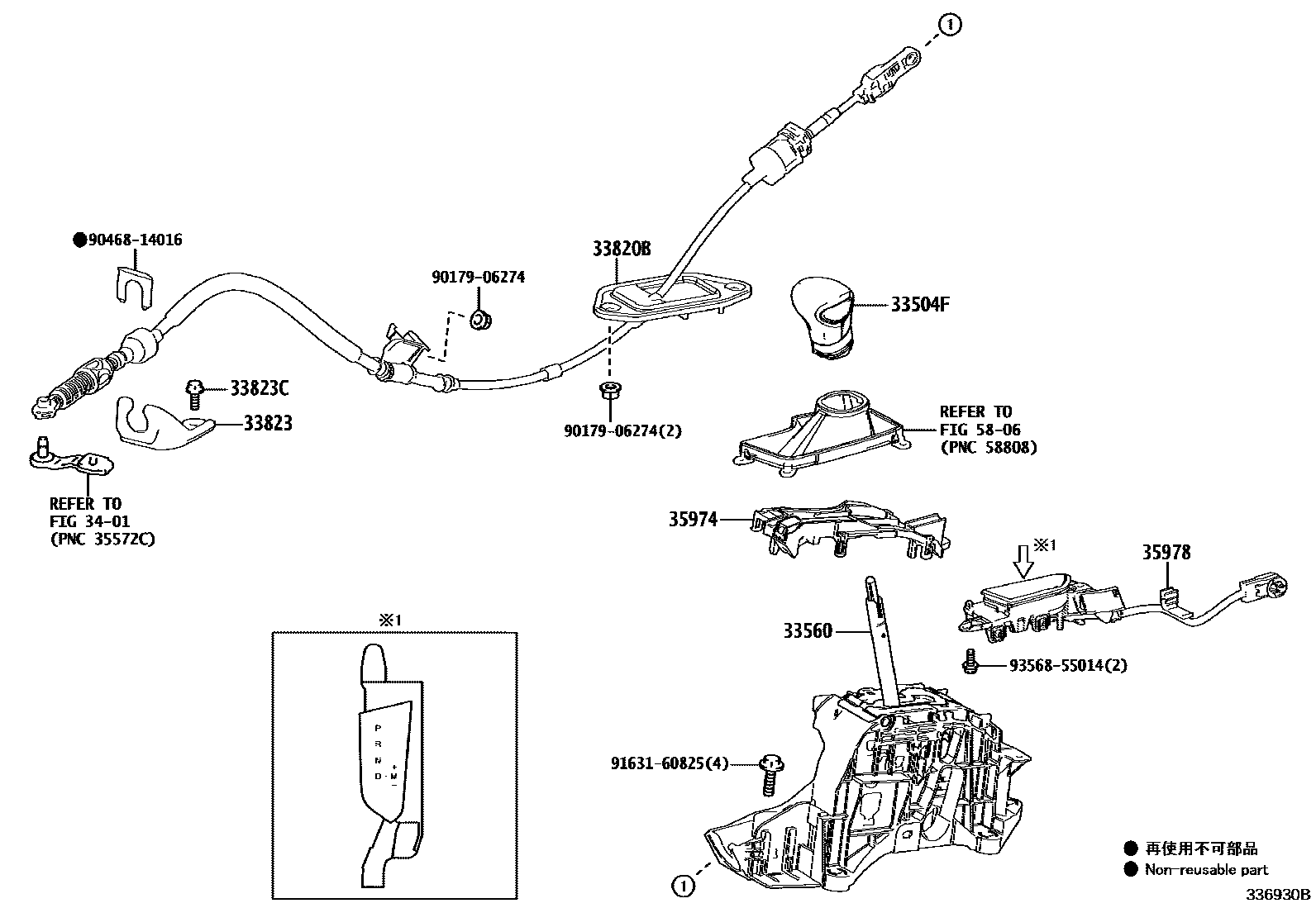

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-33220-C0iMZAA10,MZAH10,15202207

BLACK,TRIM0#,1#,2#,4#,8#

main33504-76090-C3iKMA10202401-202512

BLACK/BLACK,TRIM0#,1#,2#,4#

main33504-78030-C0iMZAH11,16202401

BLACK,TRIM0#,1#,2#,4#,8#

main33504-33230-C0iMZAA10,MZAH10,15202207

main33504-48140-C0iMZAH11,16202411-202512

main33504-78020-C0iMZAH11,16202401

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-76040iMZAA10,MZAH10,15202207

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-76021iMZAA10202207

main33820-76042iMZAH10,15202207

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-12310iMZAA10202207

main33823-12350iMZAH10,15202207

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main90119-08079×2iMZAA10,MZAH10,15202207

3401TRANSAXLE ASSY(CVT)

→ Go to FIG 34-01

35974HOUSING, POSITION INDICATOR, LOWER

main35974-76020iMZAA10,MZAH10,15202207

35978INDICATOR, SHIFT POSITION

main35978-76030iMZAA10202207

main35978-76040iMZAH10,15202207

main35978-76060iKMA10202304-202401

5806CONSOLE BOX & BRACKET

→ Go to FIG 58-06

9017906274

main90179-06274

9046814016

main90468-14016

9163160825

main91631-60825

9356855014

main93568-55014

13 parts on this diagram · 4 diagrams in section
