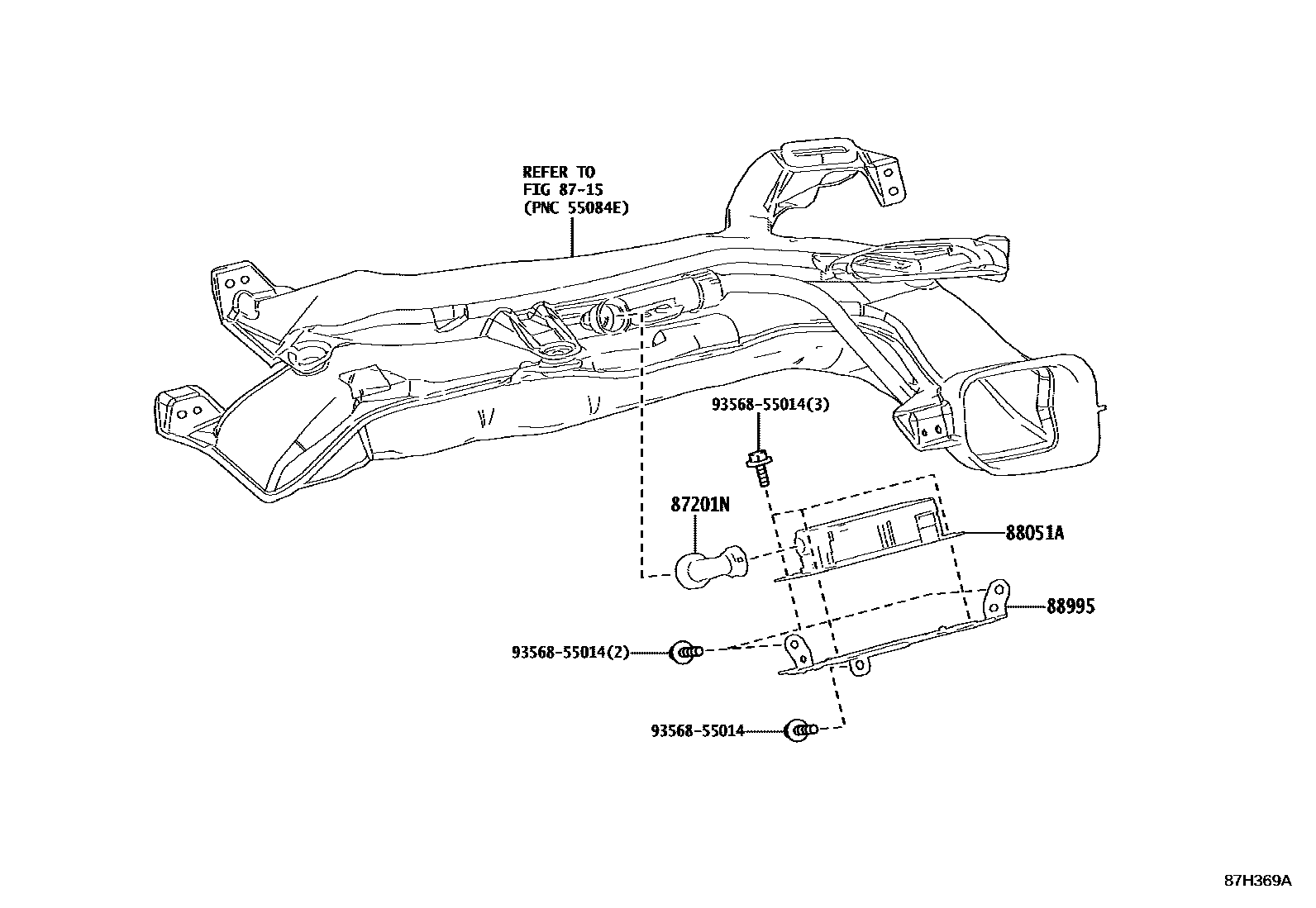

AIR PURIFIER OR ION GENERATOR

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

87201NDUCT SUB-ASSY, AIR

main55848-76020iMZAA10,MZAH1#201810-202207

88051AGENERATOR SUB-ASSY,ION

main88051-28060iMZAA10,MZAH1#201810-202108

main88051-48010iMZAA10,MZAH1#202108-202207

88995BRACKET,ION GENERATOR, NO.1

main88995-76020iMZAA10,MZAH1#201810-202207

9356855014

main93568-55014

5 parts on this diagram · 1 diagram in section
