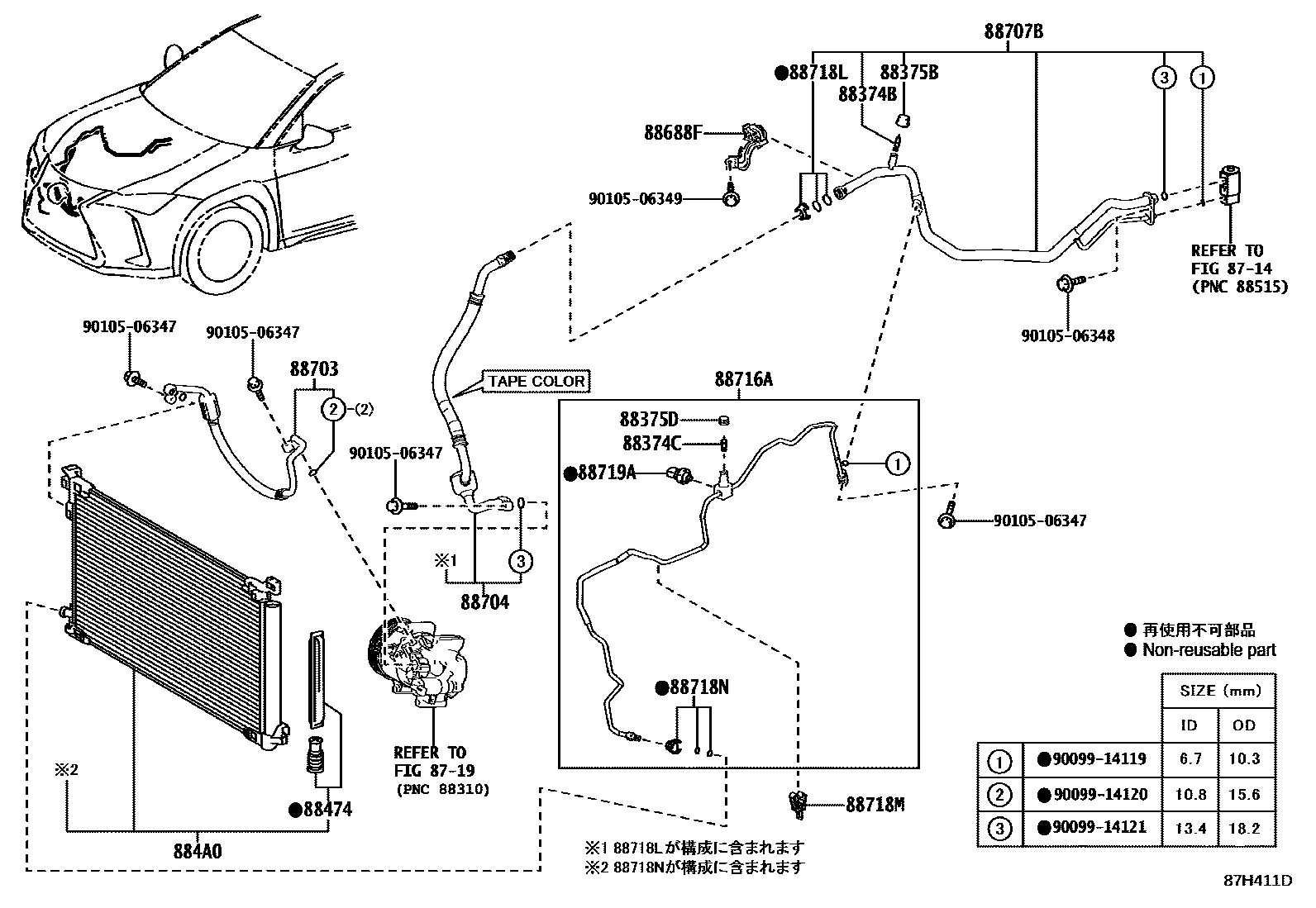

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374BVALVE, SERVICE, NO.1

main88374-30010iMZAA10,MZAH1#201810-202207

88374CVALVE, SERVICE, NO.2

main88374-30010iMZAA10,MZAH1#201810-201910

88375BCAP, SERVICE VALVE, NO.1

main88375-30310iMZAA10,MZAH1#201810-202207

88375DCAP, SERVICE VALVE, NO.2

main88375-30320iMZAA10,MZAH1#201810-202207

88474DRYER, COOLER

main88474-12020iMZAA10,MZAH1#201810-202207

884A0CONDENSER ASSY, COOLER

main884A0-12010iMZAA10201810-202207

main884A0-76010iMZAH1#201811-202207

88688FBRACKET, COOLER REFRIGERANT HOSE, NO.2

main88688-12A40iMZAA10201810-202207

main88688-76060iMZAH1#201811-202207

88703HOSE SUB-ASSY, DISCHARGE

main88703-76020iMZAH1#201811-202207

main88703-76030iMZAA10201810-202207

88704HOSE SUB-ASSY, SUCTION

main88704-12A20iMZAA10201810-202010

main88704-12A90iMZAA10202010-202207

main88704-76020iMZAH1#201811-202207

88707BTUBE SUB-ASSY, SUCTION, B

main88707-76010iMZAH1#201811-202207

main88710-76120iMZAA10201810-202207

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88710-76040iMZAH1#201811-201910

main88710-76080iMZAA10201810-201910

main88710-76170iMZAH1#201910-202207

main88710-76210iMZAA10201910-202207

88718LCLAMP, PIPING

main88718-52280iMZAA10,MZAH1#201810-202207

88718MCLAMP, PIPING

main88718-47110iMZAA10,MZAH1#201810-202207

88718NCLAMP, PIPING

main88718-1E150iMZAA10,MZAH1#201810-202207

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-11010iMZAA10,MZAH1#201810-202207

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9010506347

main90105-06347

9010506348

main90105-06348

9010506349

main90105-06349

23 parts on this diagram · 2 diagrams in section
