RADIO COMMUNICATION & ETC

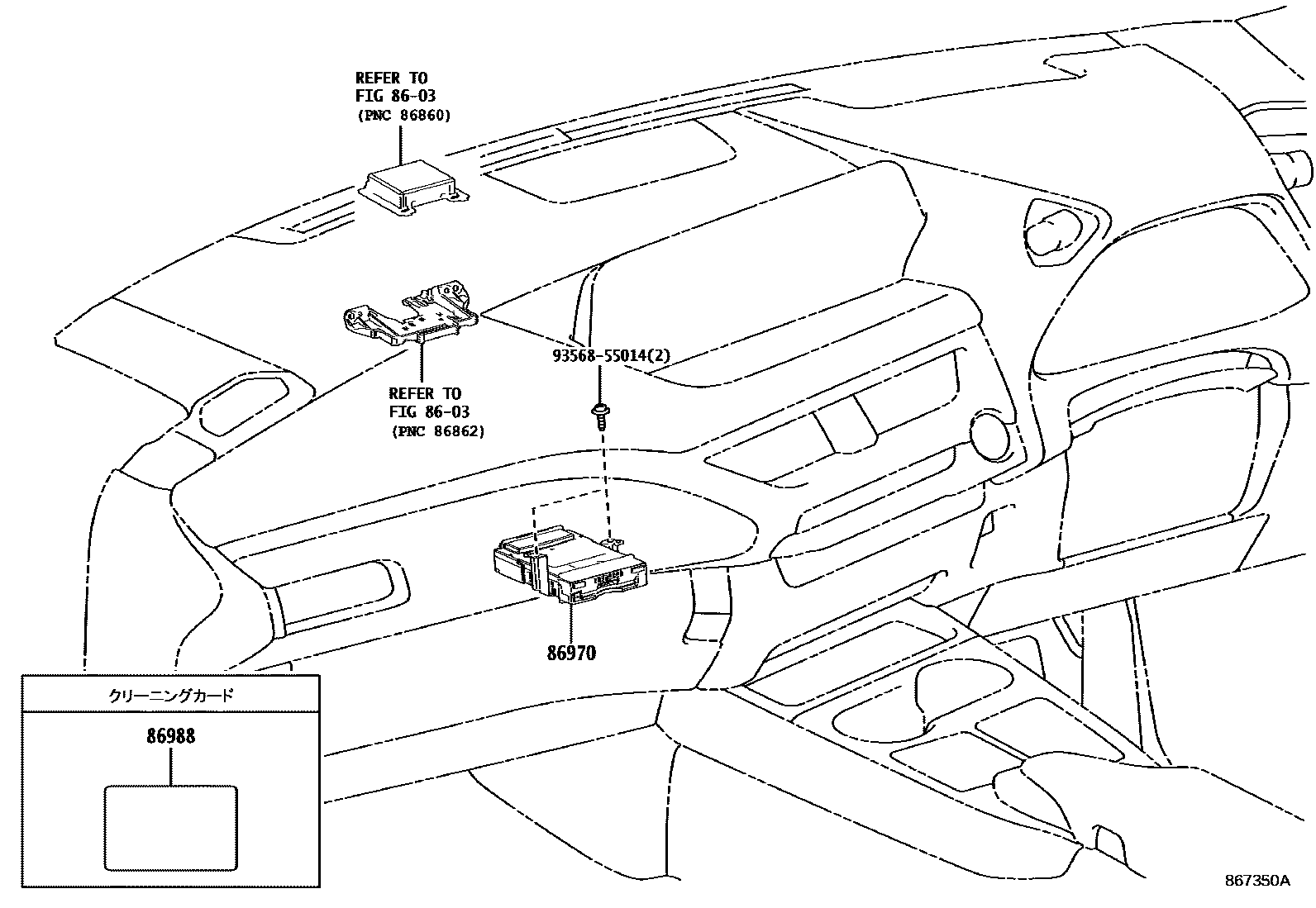

Parts diagram

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

86970TOLL COLLECTION ASSY

main86970-76010i201810-202010

main86970-76020i202010-202207

86988CARD, TOLL COLLECTION CLEANING

main86988-11010i201810-202202

9356855014

main93568-55014

4 parts on this diagram · 1 diagram in section
