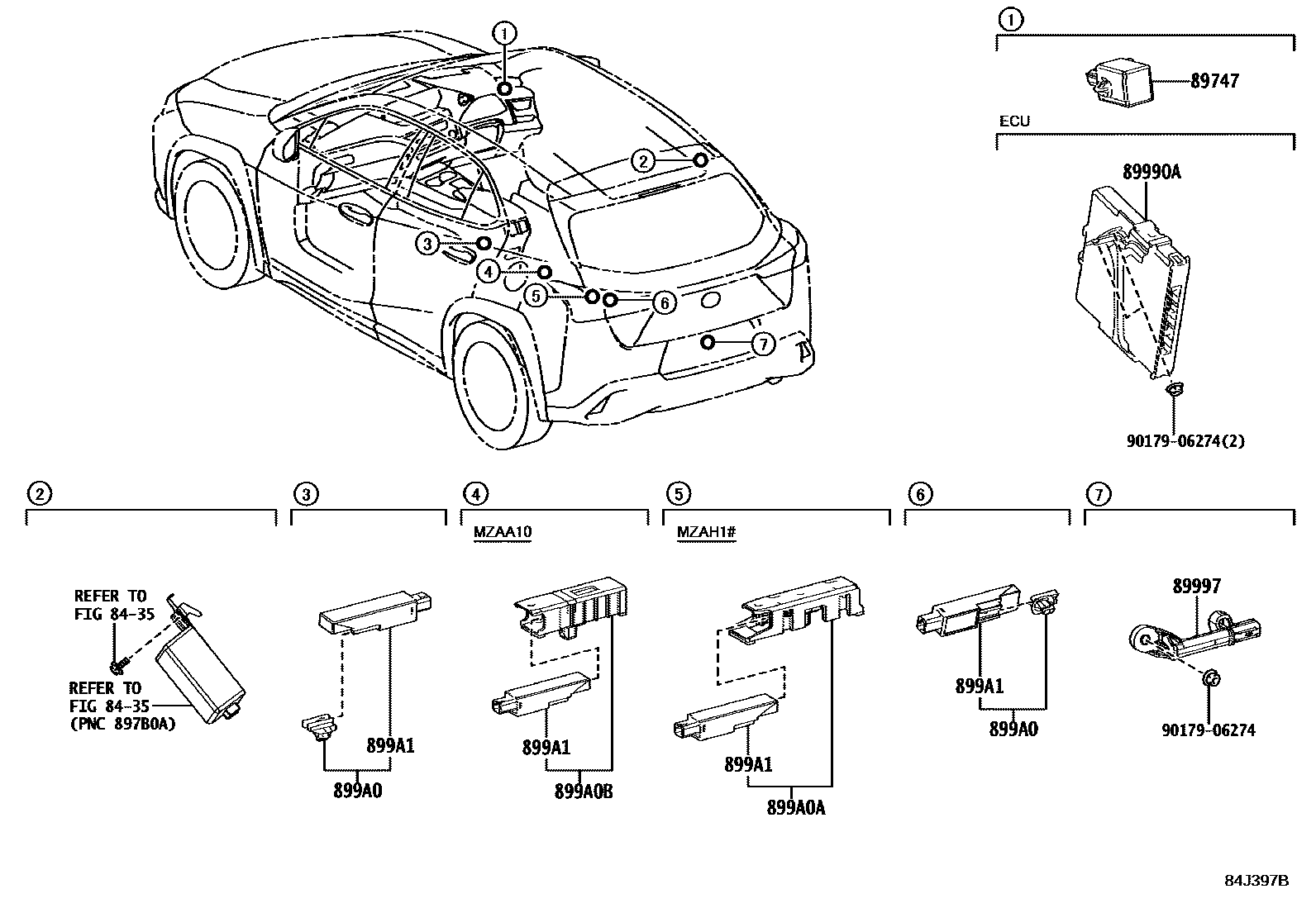

WIRELESS DOOR LOCK

8435TIRE PRESSURE WARNING SYSTEM

→ Go to FIG 84-35

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iMZAA10,MZAH1#201810-202207

89990ACOMPUTER ASSY, SMART KEY

main899H0-76030iMZAH1#201811-201910

main899H0-76040iMZAA10201810-201910

main899H0-76110iMZAH1#201910-202010

main899H0-76120iMZAA10201910-202010

main899H0-76270iMZAH1#202010-202108

main899H0-76280iMZAA10202010-202108

main899H0-76420iMZAH1#202108-202204

main899H0-76421iMZAH1#202205-202207

main899H0-76430iMZAA10202108-202207

89997ANTENNA, ELECTRICAL KEY

main89997-30100iMZAA10,MZAH1#201810-202207

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-47010×2iMZAA10,MZAH1#201810-202207

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-47050iMZAH1#201811-202108

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-10010iMZAA10201810-202108

899A1ANTENNA, INDOOR ELECTRICAL KEY

main899A1-60010×2iMZAA10,MZAH1#201810-202108

9017906274

main90179-06274

9 parts on this diagram · 1 diagram in section
