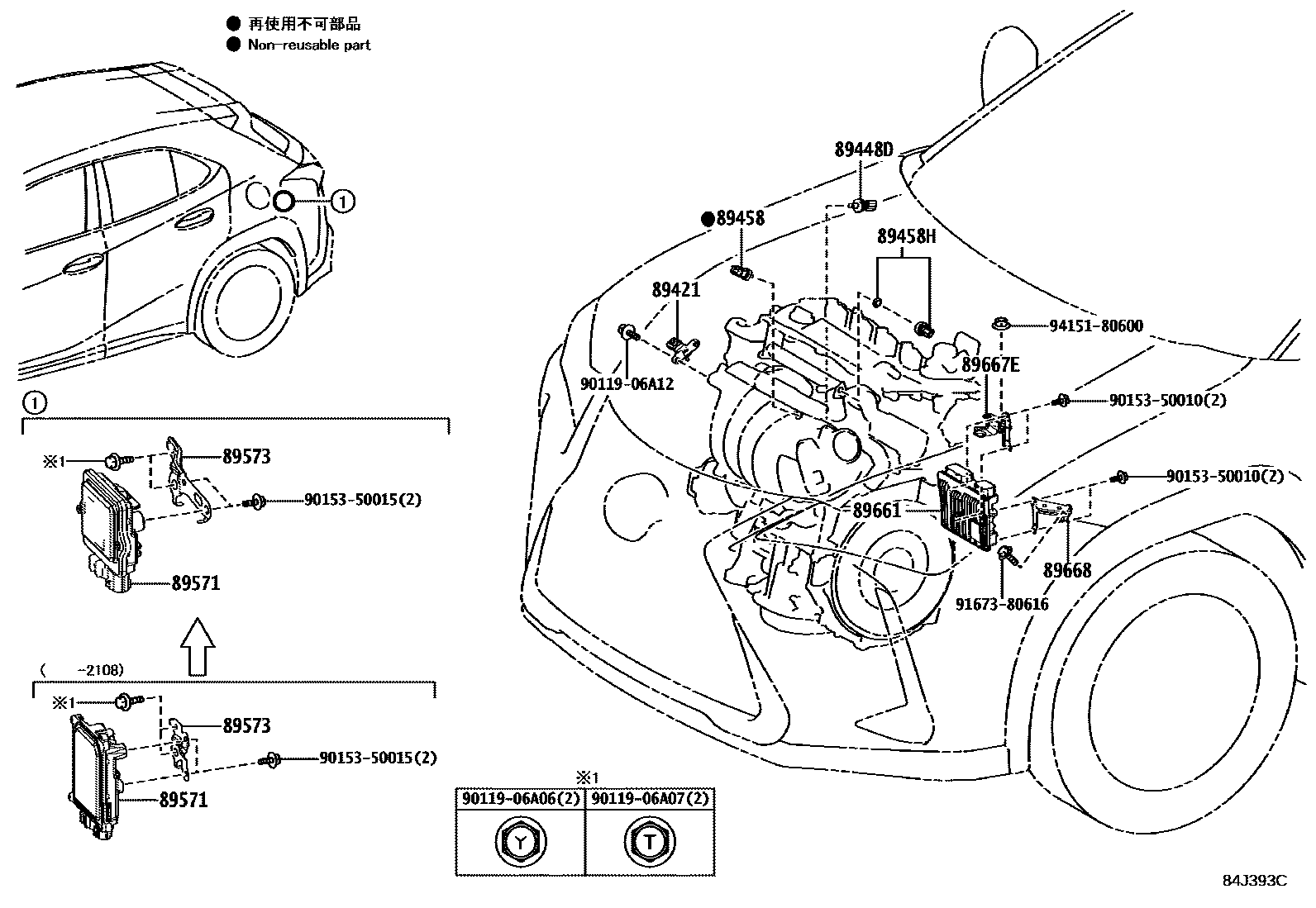

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-33010iMZAA10,MZAH1#201810-202207

89448DSENSOR, OIL PRESSURE & TEMPERATURE

main89448-33010iMZAA10,MZAH1#201810-202207

89458SENSOR, FUEL PRESSURE

main89458-33030iMZAA10,MZAH1#201810-202207

89458HSENSOR, FUEL PRESSURE, NO.2

main89458-33041iMZAA10,MZAH1#201810-202207

89571COMPUTER, FUEL PUMP CONTROL

main89571-12010iMZAA10,MZAH1#201810-202108

main89571-48010iMZAA10,MZAH1#202108-202207

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-76010iMZAA10,MZAH1#202108-202207

main89573-76020iMZAA10,MZAH1#201810-202108

89661COMPUTER, ENGINE CONTROL

main89661-76250iMZAH1#201811-202207

main89661-76270iMZAA10201810-202010

main89661-76520iMZAA10202010-202207

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-12350iMZAA10201810-202207

main89667-76010iMZAH1#201811-202207

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-12280iMZAA10201810-202207

main89668-76010iMZAH1#201811-202207

9011906A06

main90119-06A06

9011906A07

main90119-06A07

9011906A12

main90119-06A12

9015350010

main90153-50010

9015350015

main90153-50015

9167380616

main91673-80616

9415180600

main94151-80600

16 parts on this diagram · 2 diagrams in section
