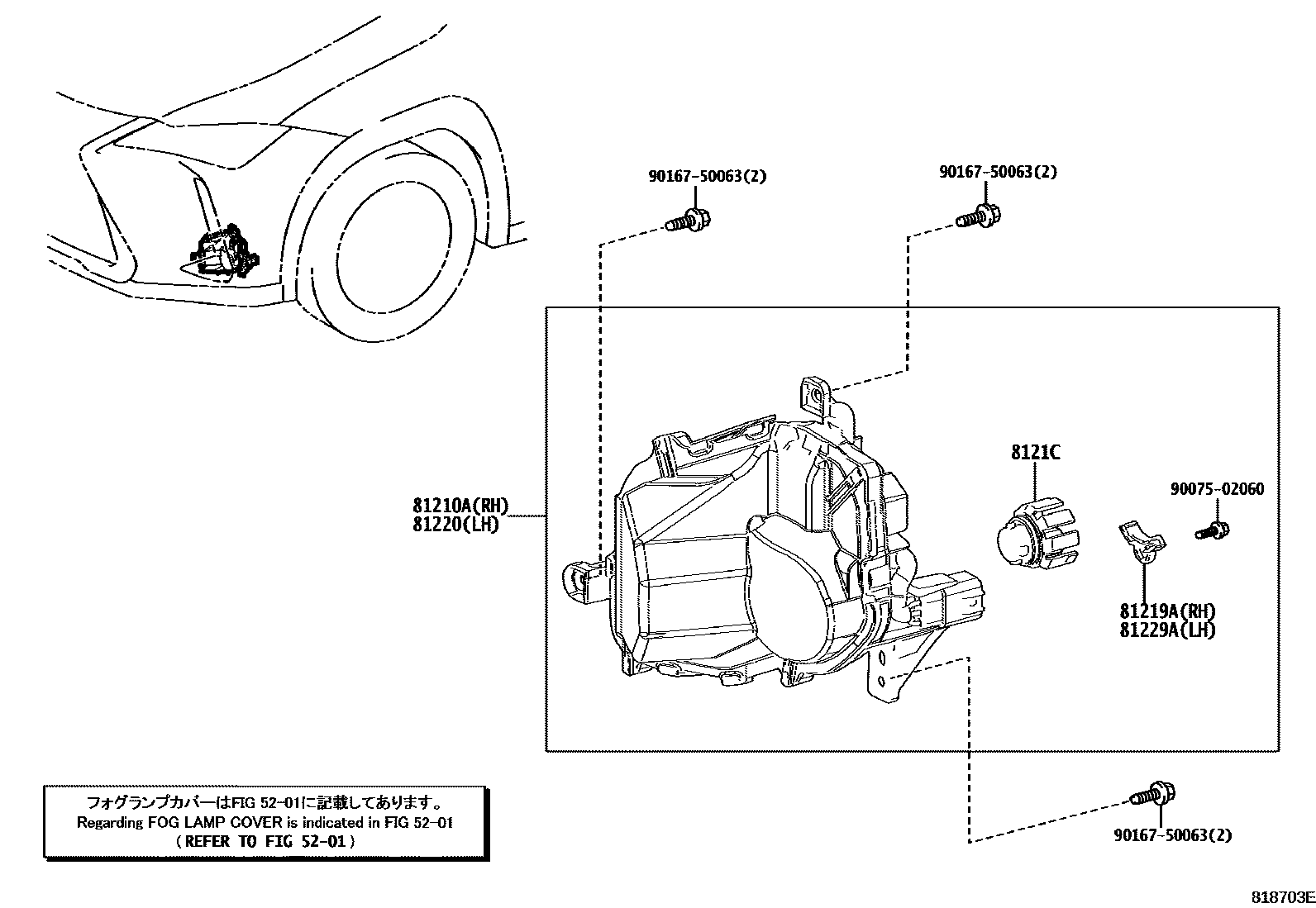

FOG LAMP

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

81210ALAMP ASSY, FOG, RH

main81210-76020iMZAA10,MZAH1#201810-202207

81219ABRACKET, FOG LAMP, RH

main81219-76020iMZAA10,MZAH1#201810-202207

8121CLED, FOG LAMP

main8121C-76020×2iMZAA10,MZAH1#201810-202207

81220LAMP ASSY, FOG, LH

main81220-76020iMZAA10,MZAH1#201810-202207

81229ABRACKET, FOG LAMP, LH

main81219-76020iMZAA10,MZAH1#201810-202207

9007502060

main90075-02060

9016750063

main90167-50063

8 parts on this diagram · 1 diagram in section
