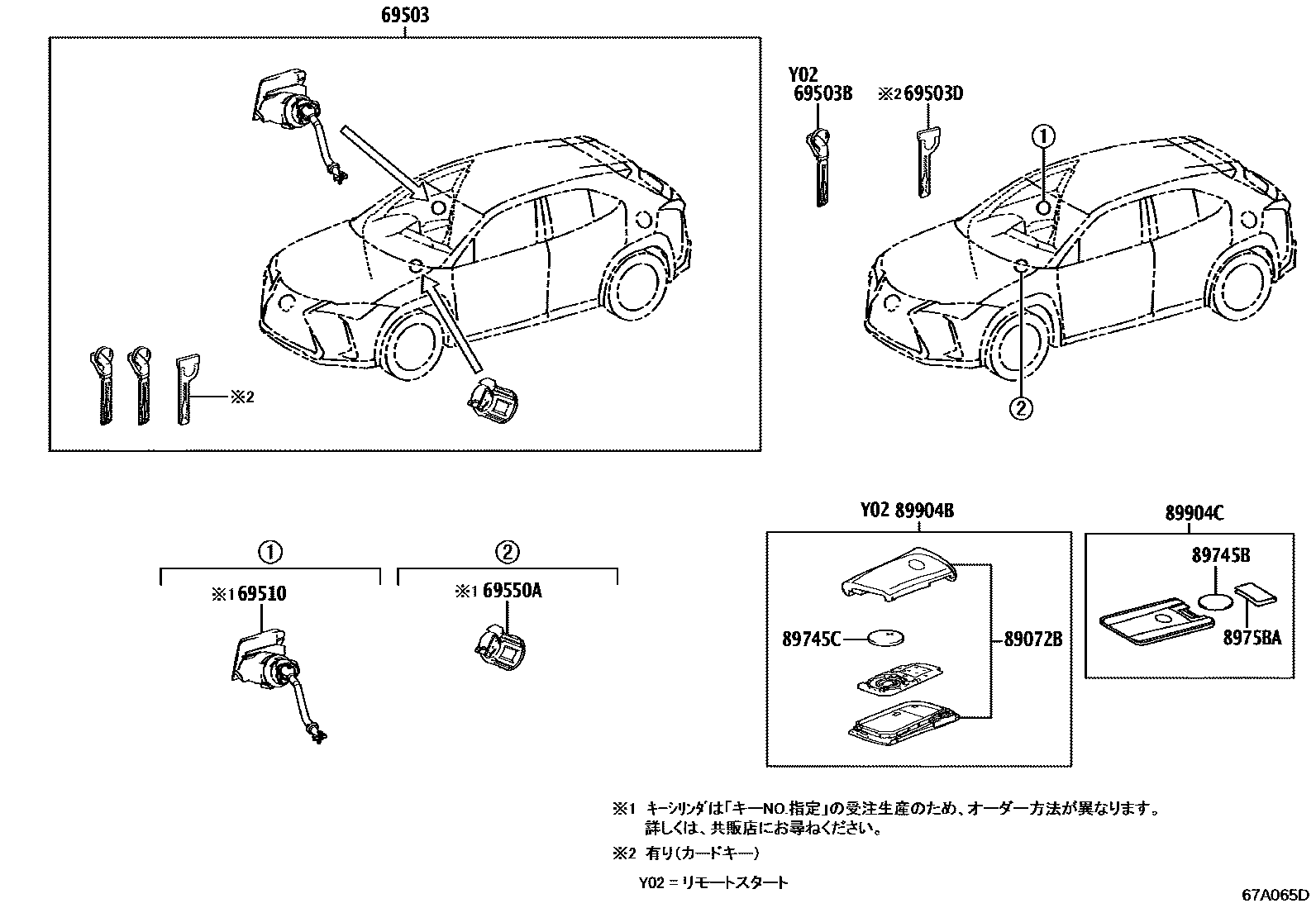

LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-76100supersedes 69005-76090iMZAA10,MZAH1#201810-202207

69503BKEY, CUT

main69515-33140×2iMZAA10,MZAH1#201810-202207

69503DKEY, CUT(CARD KEY)

main69515-30330iMZAA10,MZAH1#201810-202207

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-76030iMZAA10,MZAH1#201810-202207

69550ACYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK

main69550-50040iMZAA10,MZAH1#201810-202207

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

main89072-76100×2supersedes 89072-76090iMZAA10201810-202207

main89072-76120×2supersedes 89072-76110iMZAH1#201811-202207

89745BBATTERY, TRANSMITTER(CARD KEY)

main89745-50030iMZAA10,MZAH1#201810-202207

89745CBATTERY, TRANSMITTER

main89745-45010iMZAA10,MZAH1#201810-202010

main89745-50020iMZAA10,MZAH1#202010-202207

8975BACOVER, TRANSMITTER BATTERY HOUSING(CARD KEY)

main8975B-50030iMZAA10,MZAH1#201810-202207

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main8990H-76060×2supersedes 8990H-76050iMZAA10201810-202010

main8990H-76080×2supersedes 8990H-76070iMZAH1#201811-202010

main8990H-76630×2supersedes 8990H-76620iMZAA10202010-202207

main8990H-76650×2supersedes 8990H-76640iMZAH1#202010-202207

89904CTRANSMITTER SUB-ASSY, ELECTRICAL KEY(CARD KEY)

main8990H-50190iMZAA10201810-202010

main8990H-50200iMZAH1#201811-202010

main8990H-76580iMZAH1#202010-202207

main8990H-76B50iMZAA10202010-202207

11 parts on this diagram · 1 diagram in section
