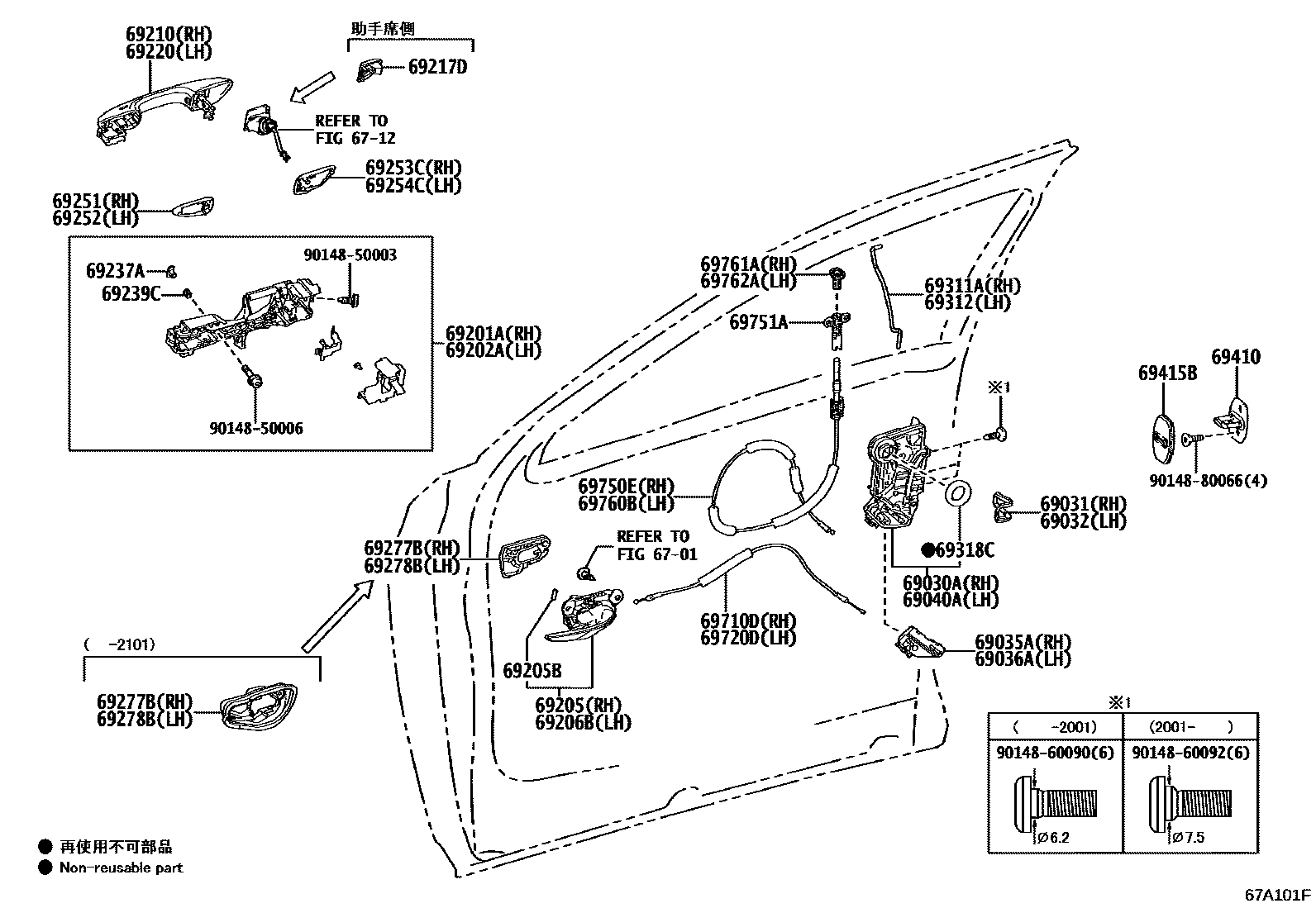

FRONT DOOR LOCK & HANDLE

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

6712LOCK CYLINDER SET

→ Go to FIG 67-12

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-76010iMZAA10,MZAH1#201810-201908

main69030-76011iMZAA10,MZAH1#201908-202207

69031COVER SET, DOOR LOCK, RH

main69031-76010iMZAA10,MZAH1#201810-202207

69032COVER SET, DOOR LOCK, LH

main69032-76010iMZAA10,MZAH1#201810-202207

69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH

main69035-30010iMZAA10,MZAH1#201810-202207

69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH

main69036-30010iMZAA10,MZAH1#201810-202207

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-76010iMZAA10,MZAH1#201810-201908

main69040-76011iMZAA10,MZAH1#201908-202207

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-76030iMZAA10,MZAH1#201810-202207

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-76040iMZAA10,MZAH1#201810-202207

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69270-76010iMZAA10,MZAH1#201810-202207

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main69275-30070×4iMZAA10,MZAH1#201810-202207

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69280-76010iMZAA10,MZAH1#201810-202207

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-33161-A0iMZAA10,MZAH1#201810-202207

WHITE NOVA GF.,083

main69210-33161-A1iMZAA10,MZAH1#201810-202207

SONIC QUARTZ,085

main69210-33161-B0iMZAA10,MZAH1#201810-202207

MERCURY GRAY MC.,1H9

main69210-33161-B1iMZAA10,MZAH1#201810-202108

PLATINUM SILVER ME.,1J4

main69210-33161-B2iMZAA10,MZAH1#201810-202207

SONIC TITANIUM,1J7

main69210-33161-B3iMZAA10,MZAH1#202108-202207

SONIC CHROME,1L1

main69210-33161-C0iMZAA10,MZAH1#201810-202207

BLACK,212

main69210-33161-C1iMZAA10,MZAH1#201810-202207

GRAPHITE BLACK GF.,223

main69210-33161-D1iMZAA10,MZAH1#201810-202207

MADDER RED,3T2

main69210-33161-E1iMZAA10,MZAH1#201810-202108

AMBER CS.,4X2

main69210-33161-E2iMZAA10,MZAH1#201810-202207

BLAZING CARNELIAN CONTRAS,4Y1

main69210-33161-G1iMZAA10,MZAH1#201810-202207

TERRANE KHAKI M.M.,6X4

main69210-33161-J0iMZAA10,MZAH1#201810-202207

HEAT BLUE CONTRAST LAYERI,8X1

main69210-33161-J2iMZAA10,MZAH1#201810-202207

CELESTIAL BLUE GF.,8Y6

69217DCOVER, FRONT DOOR OUTSIDE HANDLE

main69218-50060iMZAA10,MZAH1#201810-202207

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-33071-A0iMZAA10,MZAH1#201810-202207

WHITE NOVA GF.,083

main69220-33071-A1iMZAA10,MZAH1#201810-202207

SONIC QUARTZ,085

main69220-33071-B0iMZAA10,MZAH1#201810-202207

MERCURY GRAY MC.,1H9

main69220-33071-B1iMZAA10,MZAH1#201810-202108

PLATINUM SILVER ME.,1J4

main69220-33071-B2iMZAA10,MZAH1#201810-202207

SONIC TITANIUM,1J7

main69220-33071-B3iMZAA10,MZAH1#202108-202207

SONIC CHROME,1L1

main69220-33071-C0iMZAA10,MZAH1#201810-202207

BLACK,212

main69220-33071-C1iMZAA10,MZAH1#201810-202207

GRAPHITE BLACK GF.,223

main69220-33071-D1iMZAA10,MZAH1#201810-202207

MADDER RED,3T2

main69220-33071-E1iMZAA10,MZAH1#201810-202108

AMBER CS.,4X2

main69220-33071-E2iMZAA10,MZAH1#201810-202207

BLAZING CARNELIAN CONTRAS,4Y1

main69220-33071-G1iMZAA10,MZAH1#201810-202207

TERRANE KHAKI M.M.,6X4

main69220-33071-J0iMZAA10,MZAH1#201810-202207

HEAT BLUE CONTRAST LAYERI,8X1

main69220-33071-J2iMZAA10,MZAH1#201810-202207

CELESTIAL BLUE GF.,8Y6

69237ANUT, FRONT DOOR HANDLE

main69237-62010×2iMZAA10,MZAH1#201810-202207

69239CBUSH, FRONT DOOR HANDLE

main69239-47010×2iMZAA10,MZAH1#201810-202207

69251PAD, FRONT DOOR OUTSIDE HANDLE, FRONT RH

main69241-50040iMZAA10,MZAH1#201810-202207

69252PAD, FRONT DOOR OUTSIDE HANDLE, FRONT LH

main69242-50040iMZAA10,MZAH1#201810-202207

69253CPAD, FRONT DOOR OUTSIDE HANDLE, REAR RH

main69241-50050iMZAA10,MZAH1#201810-202207

69254CPAD, FRONT DOOR OUTSIDE HANDLE, REAR LH

main69242-50050iMZAA10,MZAH1#201810-202207

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-76030iMZAA10,MZAH1#201810-202101

main69277-76040iMZAA10,MZAH1#202101-202207

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69278-76030iMZAA10,MZAH1#201810-202101

main69278-76040iMZAA10,MZAH1#202101-202207

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-76020iMZAA10,MZAH1#201810-202207

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-76020iMZAA10,MZAH1#201810-202207

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010×2iMZAA10,MZAH1#201810-202207

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-30060×2iMZAA10,MZAH1#201810-202207

69415BCOVER, DOOR LOCK STRIKER, FRONT

main69415-76010×2iMZAA10,MZAH1#201810-202010

main69415-76011×2iMZAA10,MZAH1#202011-202207

69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)

main69710-76020iMZAA10,MZAH1#201810-202207

69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)

main69710-76020iMZAA10,MZAH1#201810-202207

69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)

main69750-76021iMZAA10,MZAH1#201810-202207

69751AHOLDER, DOOR LOCKING(FOR FRONT DOOR)

main69751-76010×2iMZAA10,MZAH1#201810-202207

69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)

main69750-76021iMZAA10,MZAH1#201810-202207

69761ABEZEL, DOOR LOCK CONTROL KNOB, RH

main69761-76010-C0iMZAA10,MZAH1#201810-202207

BLACK,TRIM0#,1#,2#,3#,4#,8#

69762ABEZEL, DOOR LOCK CONTROL KNOB, LH

main69761-76010-C0iMZAA10,MZAH1#201810-202207

BLACK,TRIM0#,1#,2#,3#,4#,8#

9014850003

main90148-50003

9014850006

main90148-50006

9014860090

main90148-60090

9014860092

main90148-60092

9014880066

main90148-80066

41 parts on this diagram · 1 diagram in section
