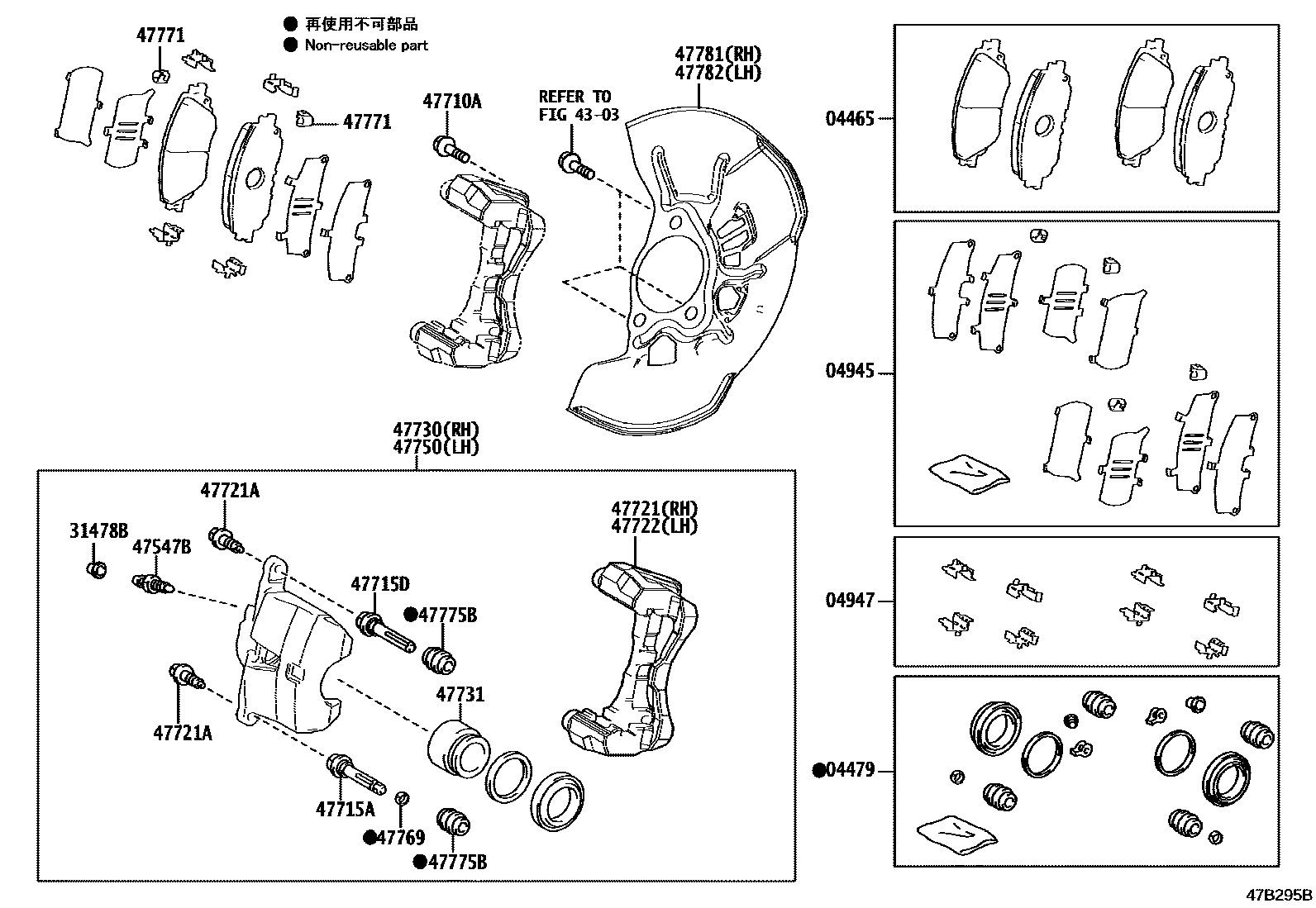

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-33480iMZAA10,MZAH1#201810-202207

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-33160iMZAA10,MZAH1#201810-202207

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-76010iMZAA10,MZAH1#201810-202207

04947FITTING KIT, DISC BRAKE, FRONT

main04947-33281iMZAA10,MZAH1#201810-202207

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iMZAA10,MZAH1#201810-202207

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iMZAA10,MZAH1#201810-202207

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iMZAA10,MZAH1#201810-202207

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-12A10iMZAA10,MZAH1#201810-202207

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-52190iMZAA10,MZAH1#201810-202207

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-76010iMZAA10,MZAH1#201810-202207

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164iMZAA10,MZAH1#201810-202207

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-76010iMZAA10,MZAH1#201810-202207

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-76010iMZAA10,MZAH1#201810-202207

47731PISTON, FRONT DISC BRAKE

main47731-12A10iMZAA10,MZAH1#201810-202207

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-76010iMZAA10,MZAH1#201810-202207

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iMZAA10,MZAH1#201810-202207

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-33380iMZAA10,MZAH1#201810-202207

47775BBOOT, BUSH DUST, NO.1

main47775-52190iMZAA10,MZAH1#201810-202207

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-76010iMZAA10,MZAH1#201810-202207

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-76010iMZAA10,MZAH1#201810-202207

21 parts on this diagram · 1 diagram in section
