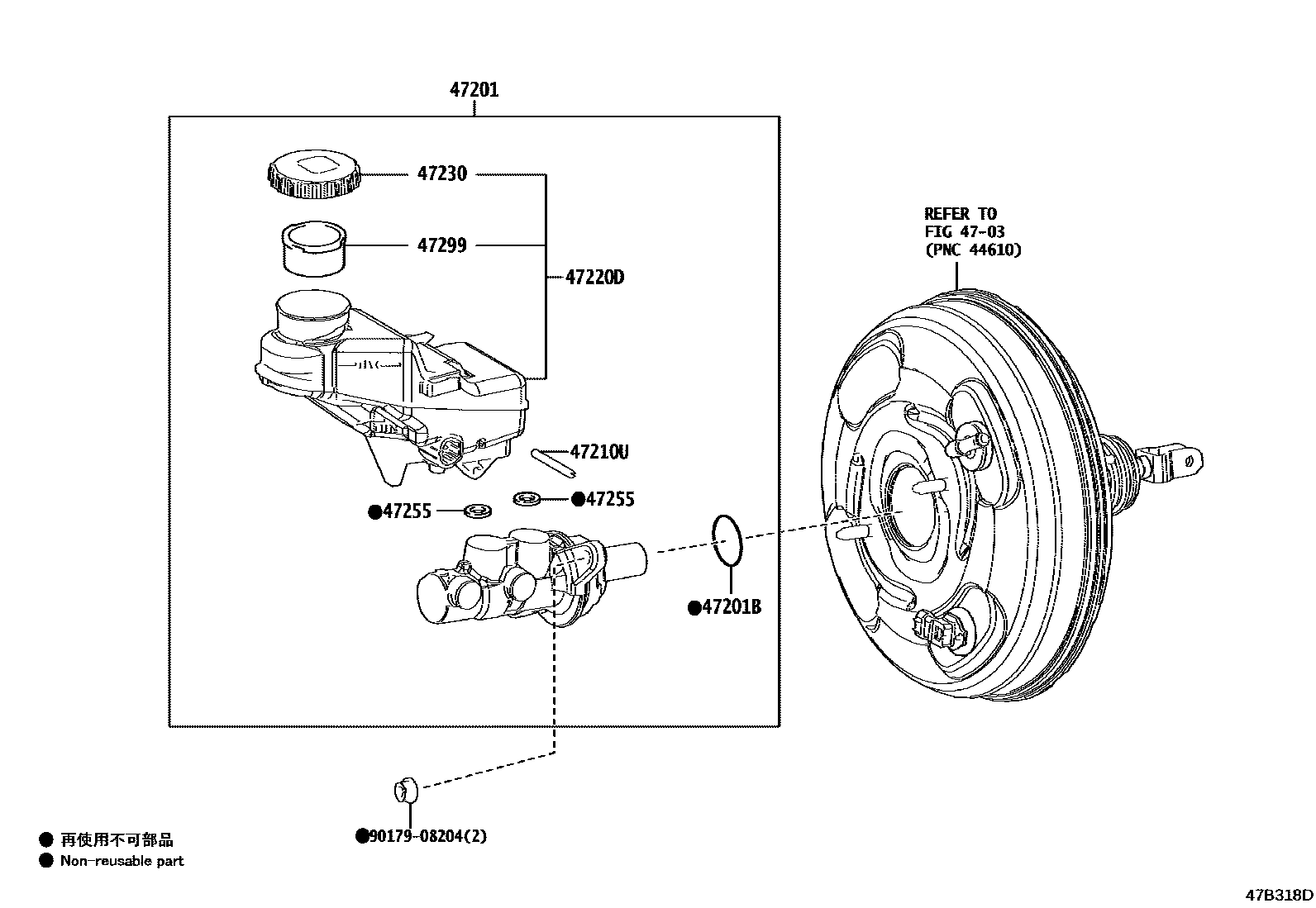

BRAKE MASTER CYLINDER

0001 1 0002 1

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-76010iMZAA10201810-202207

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH001iMZAA10201810-202207

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90015-AE401iMZAA10201810-202207

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-76030iMZAA10201810-202207

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-33072iMZAA10201810-202207

main47230-33330iMZAH1#202002-202006

main47230-47090iMZAH1#201811-202207

47255GROMMET, MASTER CYLINDER RESERVOIR

main90015-AT001iMZAA10201810-202207

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-52110iMZAA10201810-202207

9017908204

main90179-08204

9 parts on this diagram · 2 diagrams in section
