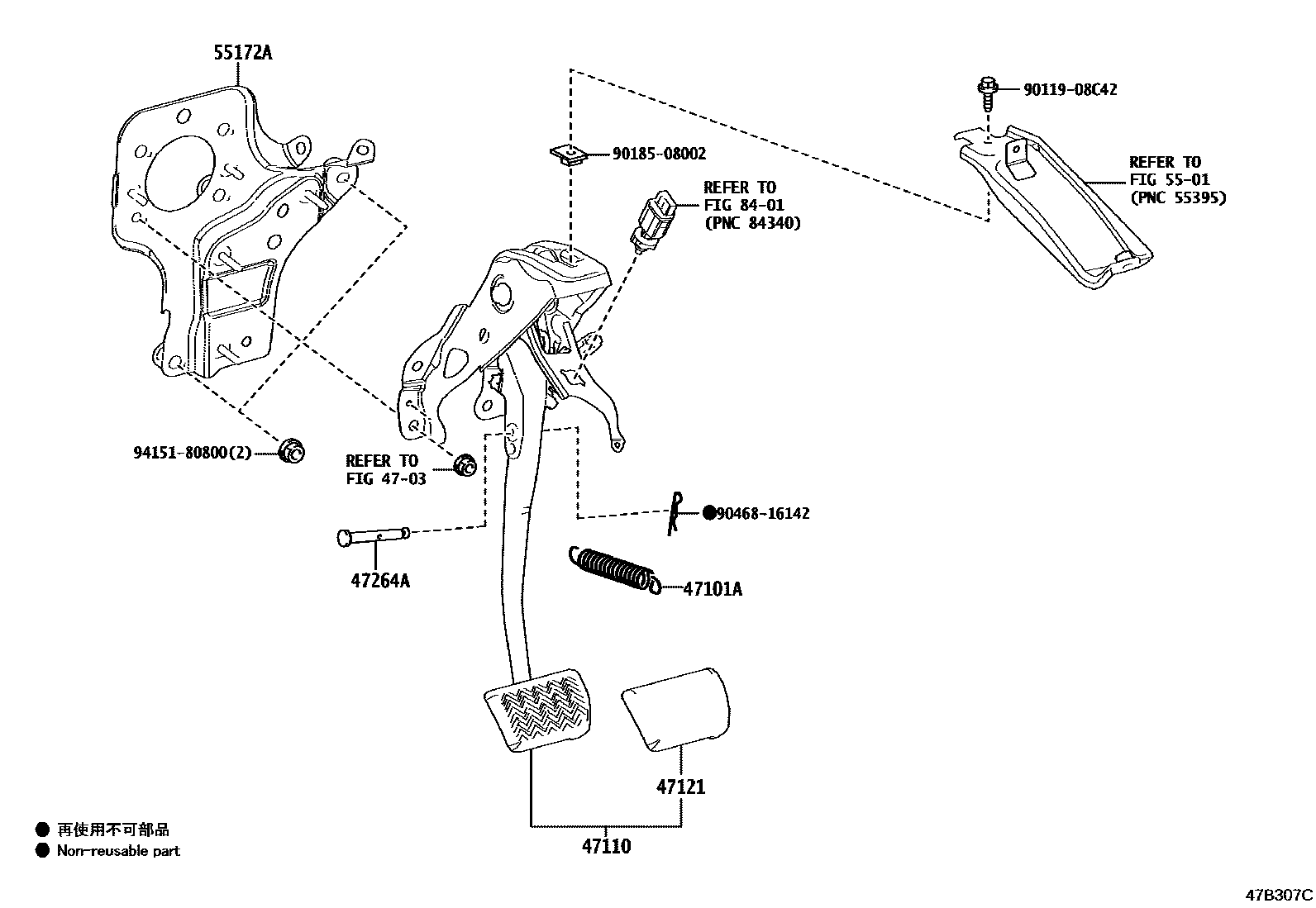

BRAKE PEDAL & BRACKET

0001 1 0002 1

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-15010iMZAA10201810-202207

main90507-15013iMZAH1#201811-202207

47110SUPPORT ASSY, BRAKE PEDAL

main47110-76100supersedes 47110-47070iMZAH1#201811-202207

main47110-76120supersedes 47110-76110iMZAA10201810-202207

47121PAD, BRAKE PEDAL

main47121-76010supersedes 47121-47010iMZAA10,MZAH1#201810-202207

47264APIN(FOR PUSH ROD)

main90249-06187iMZAA10201810-202207

main90249-08309iMZAH1#201811-202207

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

55172ABASE, BRAKE PEDAL SUPPORT

main55172-12170iMZAA10,MZAH1#201810-202207

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908C42

main90119-08C42

9018508002

main90185-08002

9046816142

main90468-16142

9415180800

main94151-80800

12 parts on this diagram · 2 diagrams in section
