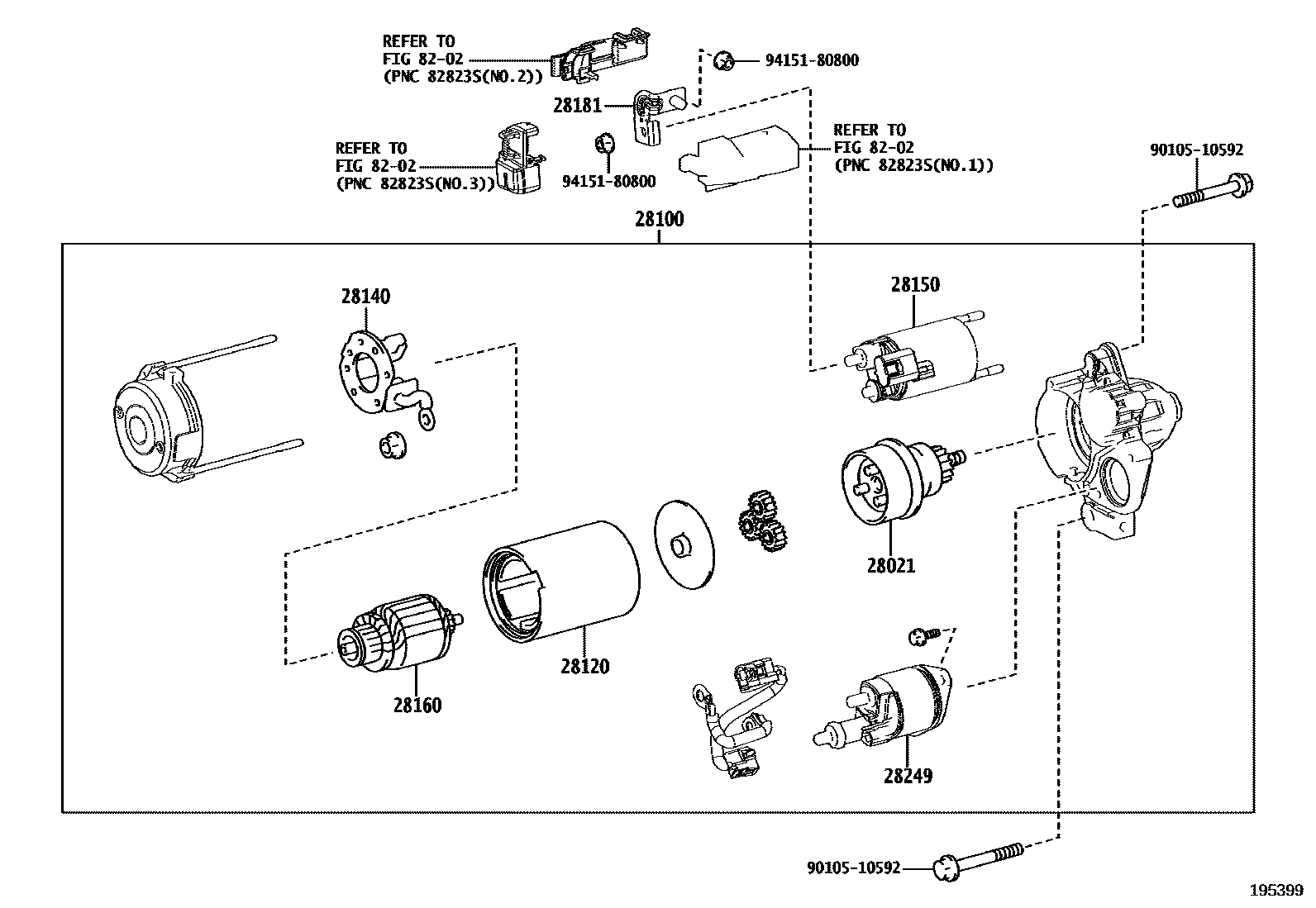

STARTER

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-25070iM20AFKS..MZAA10201810-202207

28100STARTER ASSY

main28100-25070iM20AFKS..MZAA10201810-201910

main28100-25080iM20AFKS..MZAA10201911-202207

28120YOKE ASSY, STARTER

main28120-25070iM20AFKS..MZAA10201810-202207

28140HOLDER ASSY, STARTER BRUSH

main28140-21100iM20AFKS..MZAA10201810-202207

28150SWITCH ASSY, MAGNET STARTER

main28226-25070iM20AFKS..MZAA10201810-202207

28160ARMATURE ASSY, STARTER

main28160-36110iM20AFKS..MZAA10201810-202207

28181TERMINAL, STARTER

main28181-24020iM20AFKS..MZAA10201810-202207

28249RELAY, STARTER INRUSH CURRENT REDUCTION

main28249-37100iM20AFKS..MZAA10201810-202207

8202WIRING & CLAMP

→ Go to FIG 82-02

9010510592

main90105-10592

9415180800

main94151-80800

11 parts on this diagram · 1 diagram in section
