IGNITION COIL & SPARK PLUG / GLOW PLUG

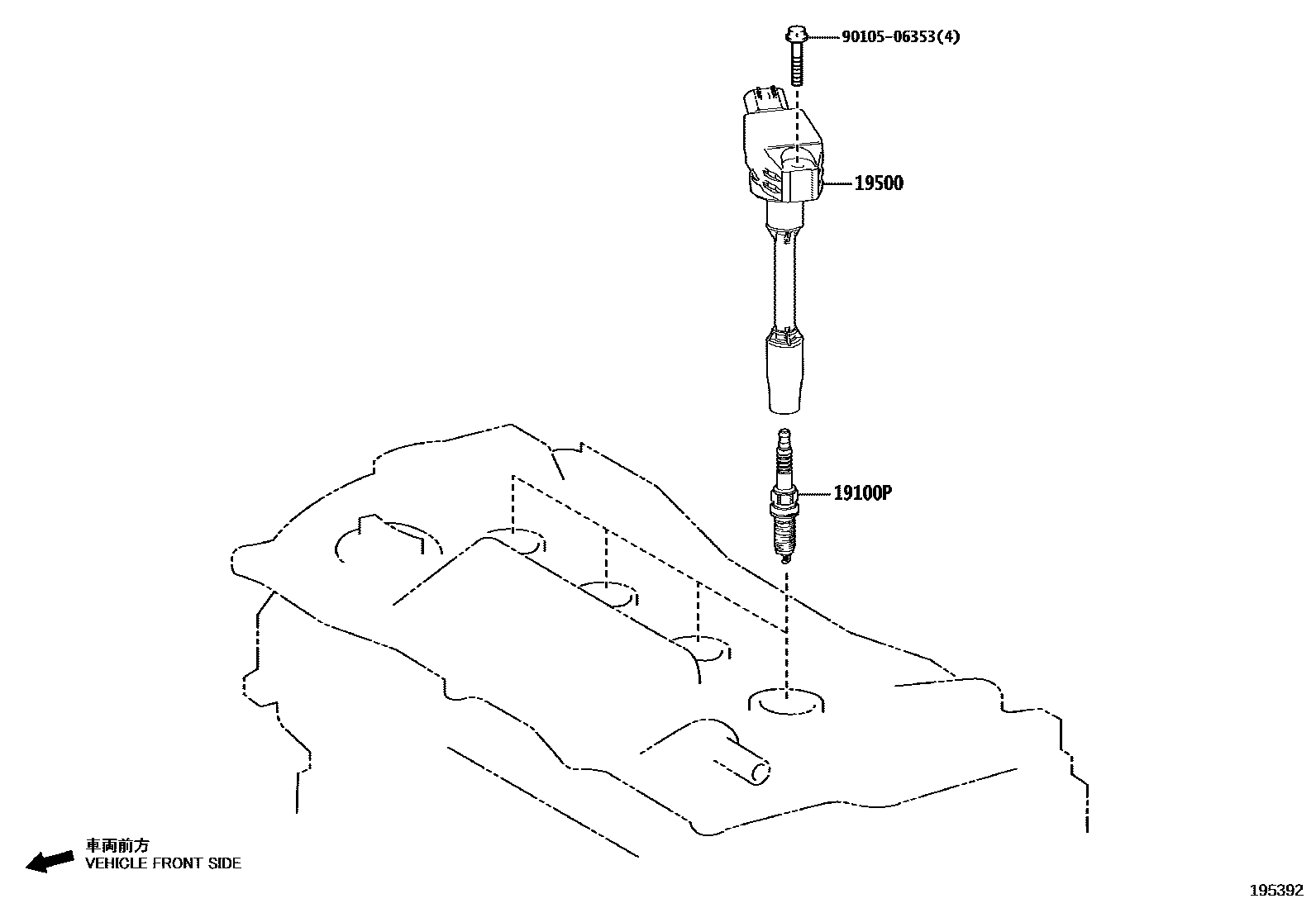

Parts diagram

19100PPLUG, SPARK

main90919-01289×4i201811-202207

main90919-01297×4i201810-202207

19500COIL ASSY, IGNITION

main90919-02276×4i201810-202207

main90919-02277×4i201811-202207

9010506353

main90105-06353

3 parts on this diagram · 1 diagram in section
