MIRROR

0001 1������������������ 0002 1������������������ 0003 1������������������� 0004 1������������������� 0005 1������������ 0006 1������������

8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

→ Go to FIG 81-06

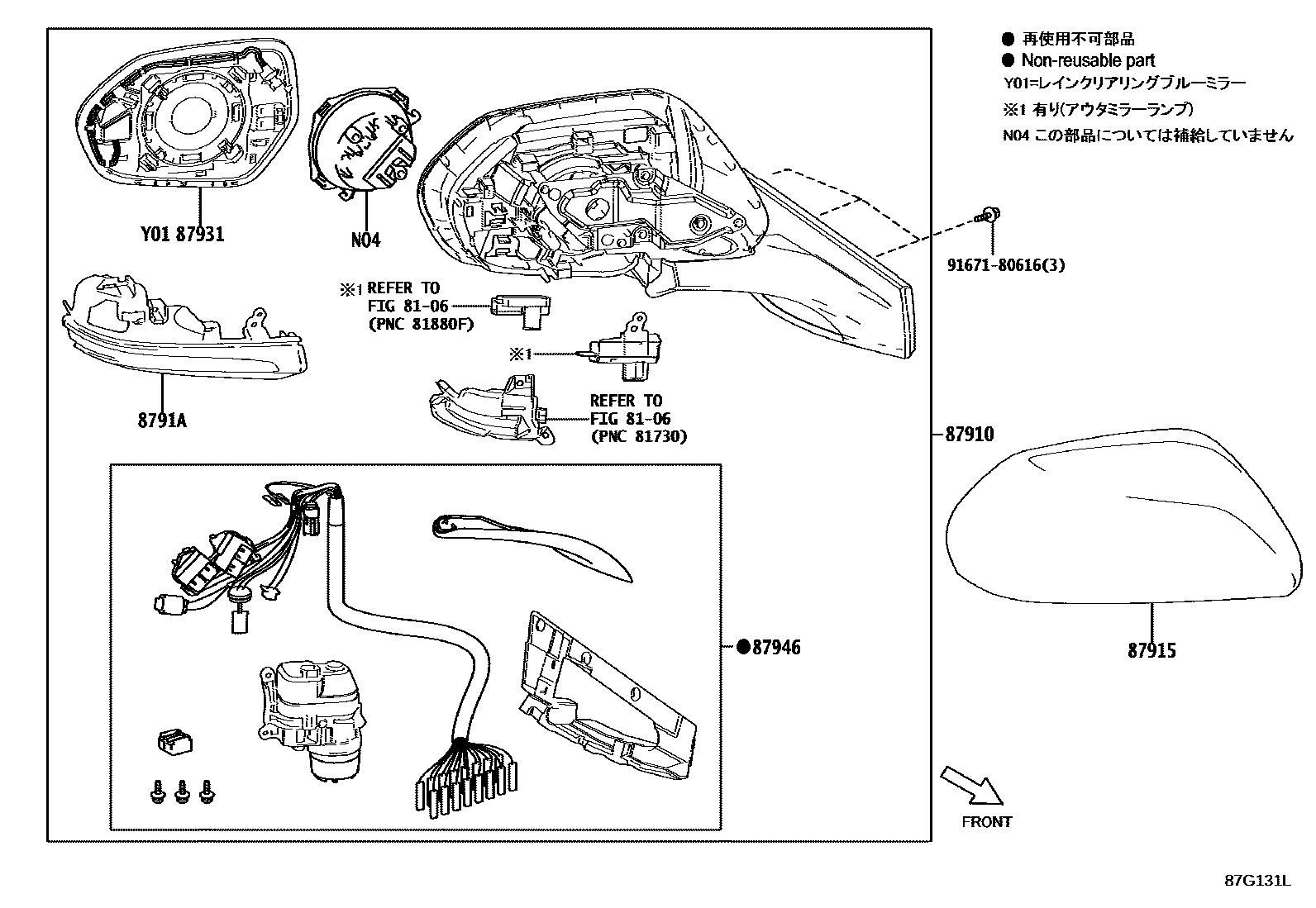

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-10850iNGX50,ZYX10..S,ST201612-201710

main87910-10851iNGX10,50,ZYX10..S,ST201711-201906

main87910-10852iNGX10,50,ZYX10..S,ST201907-201910

main87910-10860iNGX50,ZYX10..G,GT201612-201710

main87910-10861iNGX10,50,ZYX10..G,GT201711-201910

main87910-10A00supersedes 87910-10852iNGX10,50,ZYX11..S,ST201910

main87910-10A10iNGX10,50,ZYX11..G,GT; ZYX11..S;NGX10..6F..ST201910

87915COVER, OUTER MIRROR, RH

main87915-10010-A0iNGX10,50,ZYX10201612-201910

WHITE,2JU ,2NC ,2ND ,2NE ,2NG ,2NJ ,2PR

main87915-10010-A1iNGX10,50,ZYX10201612-201910

WHITE PEARL CS.,070

main87915-10010-A3iNGX10,50,ZYX11202109

PLATINUM WHITE PEARL MC.,089

main87915-10010-B0iNGX10,50,ZYX11201910

METAL STREAM ME,1K0 ,2TA ,2TD

main87915-10010-B3iNGX10,50,ZYX11202208

CEMENT GRAY ME.,1H5

main87915-10010-C0iNGX10,50,ZYX11..G,GT; NGX10,50,ZYX11..S,ST201910

main87915-10010-C1iNGX10,50,ZYX11201910

BLACK MC.,209

main87915-10010-C2iNGX10,50,ZYX10..G,GT201812-201910

BLACKISH AGEHA GF.,221

main87915-10010-D0iNGX10,50,ZYX10201612-201910

RED MC.,3T3

main87915-10010-D1iNGX10,50,ZYX11201910

EMOTIONAL RED 2,3U5

main87915-10010-E0iNGX10,50,ZYX10..G,GT; NGX10,50,ZYX10..S,ST201612-201910

DK. BROWN M.M.,2TP ,4U3; DK. BROWN M.M.,4U3

main87915-10010-E1iNGX10,50,ZYX11201910-202008

ORANGE ME.,4R8

main87915-10010-F0iNGX10,50,ZYX11201910

YELLOW,5A3

main87915-10010-G0iNGX10,50,ZYX10201612-201910

RADIANT GREEN ME.,6W9

main87915-10010-G1iNGX10,50,ZYX11201910-202208

OXIDE BRONZE ME.,6X1

main87915-10010-J0iNGX50,ZYX10201612-201805

BLUE ME.,8T7

main87915-10010-J1iNGX10,50,ZYX10201805-201910

NEBULA BLUE ME.,8X2

main87915-10010-J4iNGX10,50,ZYX11202208

DK.BLUE M.M.,8W7

main87915-10010-C3iNGX10,50,ZYX11..CVT..(G,GT)202106-202208

main87915-10010-C4iNGX10,50,ZYX11..CVT..(G,GT)202208

main87915-10010-J2iNGX10,50,ZYX11..CVT..(G,GT)202008-202106

8791ACOVER, OUTER MIRROR, RH NO.2

main8791A-10850iNGX10,50,ZYX10..S,ST201612-201907

main8791A-10851iNGX10,50,ZYX11..S,ST201910

main8791A-10860iNGX10,50,ZYX10..G,GT201612-201910

main8791A-52K00iNGX10,50,ZYX11; ZYX11..S;NGX10..6F..ST201910

87931OUTER MIRROR, RH

main87931-10850iNGX10,50,ZYX10..S,ST201612-201910

main87931-10860iNGX10,50,ZYX11..G,GT; ZYX11..S;NGX10..6F..ST201910

87946RETRACTOR, OUTER MIRROR, RH

main87946-10850iNGX10,50,ZYX10..S,ST201612-201910

main87946-10860iNGX10,50,ZYX11..G,GT; ZYX11..S;NGX10..6F..ST201910

main00000-00000iNGX10,50,ZYX11; ZYX11..S;NGX10..6F..ST201910

9167180616

main91671-80616

7 parts on this diagram · 6 diagrams in section
