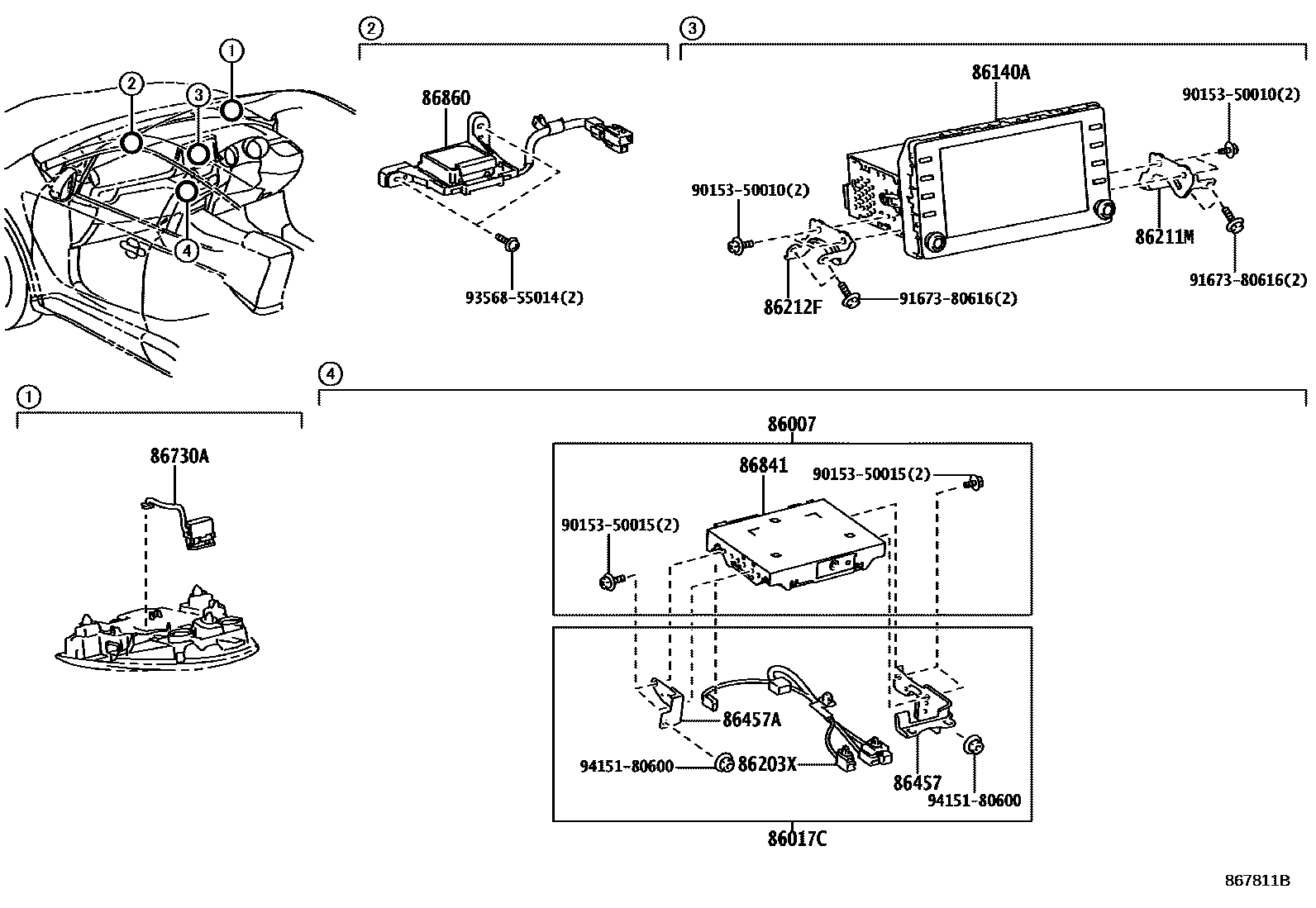

NAVIGATION & FRONT MONITOR DISPLAY

86007COMPUTER SET, NAVIGATION

main86007-52010

main86007-52020

86017CFITTING SET, NAVIGATION SETTING

86140ARECEIVER ASSY, RADIO & DISPLAY

main86140-10070iNGX10,50,ZYX11201910-202008

main86140-10070iNGX10,50,ZYX11201910-202008

main86140-10150iNGX10,50,ZYX11201910-202008

main86140-10150iNGX10,50,ZYX11201910-202008

main86140-10160iNGX10,50,ZYX11202008

main86140-10170iNGX10,50,ZYX11202008

86203XWIRING SUB-ASSY, RADIO

86211MBRACKET, RADIO RECEIVER, NO.3

main86211-10160iNGX10,50,ZYX11201910

86212FBRACKET, RADIO RECEIVER, NO.4

main86212-10160iNGX10,50,ZYX11201910

86457BRACKET, MULTI-MEDIA MODULE NO.1

main86457-10010

main86457-10020

86457ABRACKET, MULTI-MEDIA MODULE NO.2

86730AMICROPHONE ASSY, TELEPHONE

main86730-48050iNGX10,50,ZYX11201910

86841COMPUTER, NAVIGATION

main86840-12030

main86840-K0031

main86840-K0032

main86840-K0033

main86840-K0034

main86840-K0035

main86840-K0036

main86840-K0037

main86840-K0038

main86840-K0042

main86840-K0043

main86840-K0044

main86840-K0045

main86840-K0046

main86840-K0047

main86840-K0048

86860ANTENNA ASSY, NAVIGATION

main868A0-10020iNGX10,50,ZYX11201910

9015350010

main90153-50010

9015350015

main90153-50015

9167380616

main91673-80616

9356855014

main93568-55014

9415180600

main94151-80600

16 parts on this diagram · 1 diagram in section
