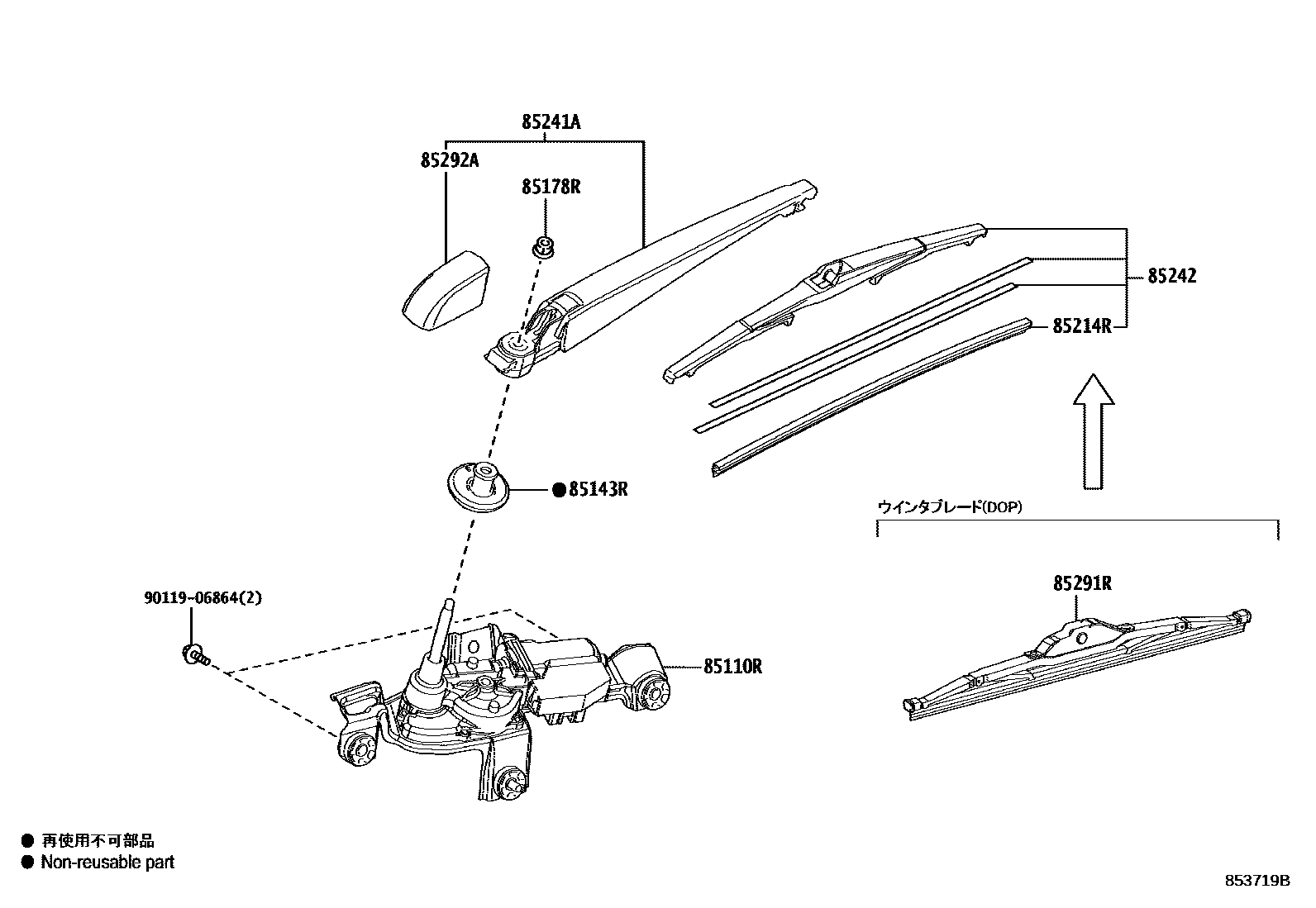

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-10350iNGX10,50,ZYX10201612-201910

85143RGROMMET, REAR WIPER MOTOR

main85143-28070iNGX10,50,ZYX10201612-201910

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iNGX10,50,ZYX10201612-201910

85214RRUBBER, REAR WIPER

main85214-30280iNGX10,50,ZYX10201612-201910

85241AARM, REAR WIPER

main85241-10030iNGX10,50,ZYX10201612-201910

85242BLADE, RR WIPER

main85242-10030iNGX10,50,ZYX10201612-201910

85291RBLADE,REAR WIPER, WINTER

85292ACAP, REAR WIPER ARM HEAD

main85292-47060iNGX10,50,ZYX10201612-201910

9011906864

main90119-06864

9 parts on this diagram · 1 diagram in section
