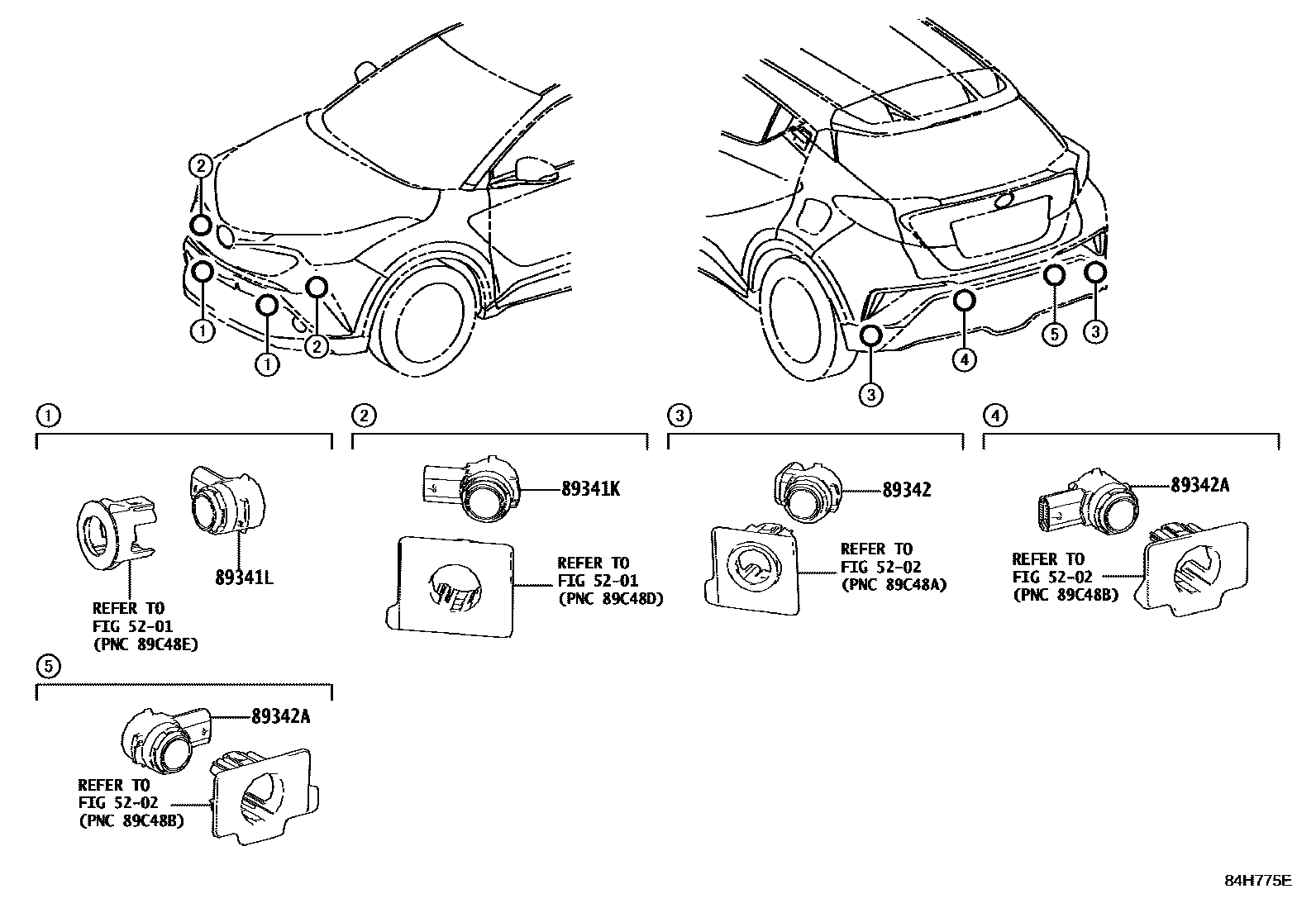

CLEARANCE & BACK SONAR

0001 1���� 0002 1���� 0003 1�������� & ����� 0004 1�������� & �����

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

5202REAR BUMPER & BUMPER STAY

→ Go to FIG 52-02

89341KSENSOR, ULTRASONIC, FRONT CORNER

main89341-0W010-A0×2iNGX10,50,ZYX10..G,GT201612-201910

WHITE PEARL CS.,070 ,2NA ,2TP

main89341-0W010-B0×2iNGX10,50,ZYX10..G,GT201612-201910

METAL STREAM ME,1K0 ,2NK

main89341-0W010-C0×2iNGX10,50,ZYX10..G,GT201612-201910

BLACK MC.,209 ,2ND ,2TA

main89341-0W010-C2×2iNGX10,50,ZYX10..G,GT201812-201910

BLACKISH AGEHA GF.,221 ,2TR

main89341-0W010-D0×2iNGX10,50,ZYX10..G,GT201612-201910

RED MC.,2NE ,2NF ,3T3

main89341-0W010-E0×2iNGX10,50,ZYX10..G,GT201612-201910

DK. BROWN M.M.,2NC ,4U3

main89341-0W010-F0×2iNGX10,50,ZYX10..G,GT201612-201910

YELLOW,2JU ,2PQ ,5A3

main89341-0W010-G0×2iNGX10,50,ZYX10..G,GT201612-201910

RADIANT GREEN ME.,2NJ ,6W9

main89341-0W010-J0×2iNGX50,ZYX10..G,GT201612-201805

BLUE ME.,2PR ,2RW ,8T7

main89341-0W010-J2×2iNGX10,50,ZYX10..G,GT201805-201910

NEBULA BLUE ME.,2NG ,2NH ,8X2

main89341-33220-C4×2iNGX10,50,ZYX11..CVT..(G,GT); NGX10..6F..GT201910-202008

89341LSENSOR, ULTRASONIC, FRONT CENTER

main89341-F4020-C1×2iNGX10,50,ZYX10..G,GT201612-201910

BLACK

main89341-33220-C4×2iNGX10,50,ZYX11..CVT..(G,GT); NGX10..6F..GT202008

89342SENSOR, ULTRASONIC, REAR CORNER

main89341-F4030-C1×2iNGX10,50,ZYX10..G,GT201612-201910

BLACK

main89341-33220-C4×2iNGX10,50,ZYX11..CVT..(G,GT); NGX10..6F..GT202008

89342ASENSOR, ULTRASONIC, REAR CENTER

main89341-F4020-C1×2iNGX10,50,ZYX10..G,GT201612-201910

BLACK

main89341-33220-C4×2iNGX10,50,ZYX11..CVT..(G,GT); NGX10..6F..GT201910-202008

6 parts on this diagram · 4 diagrams in section
