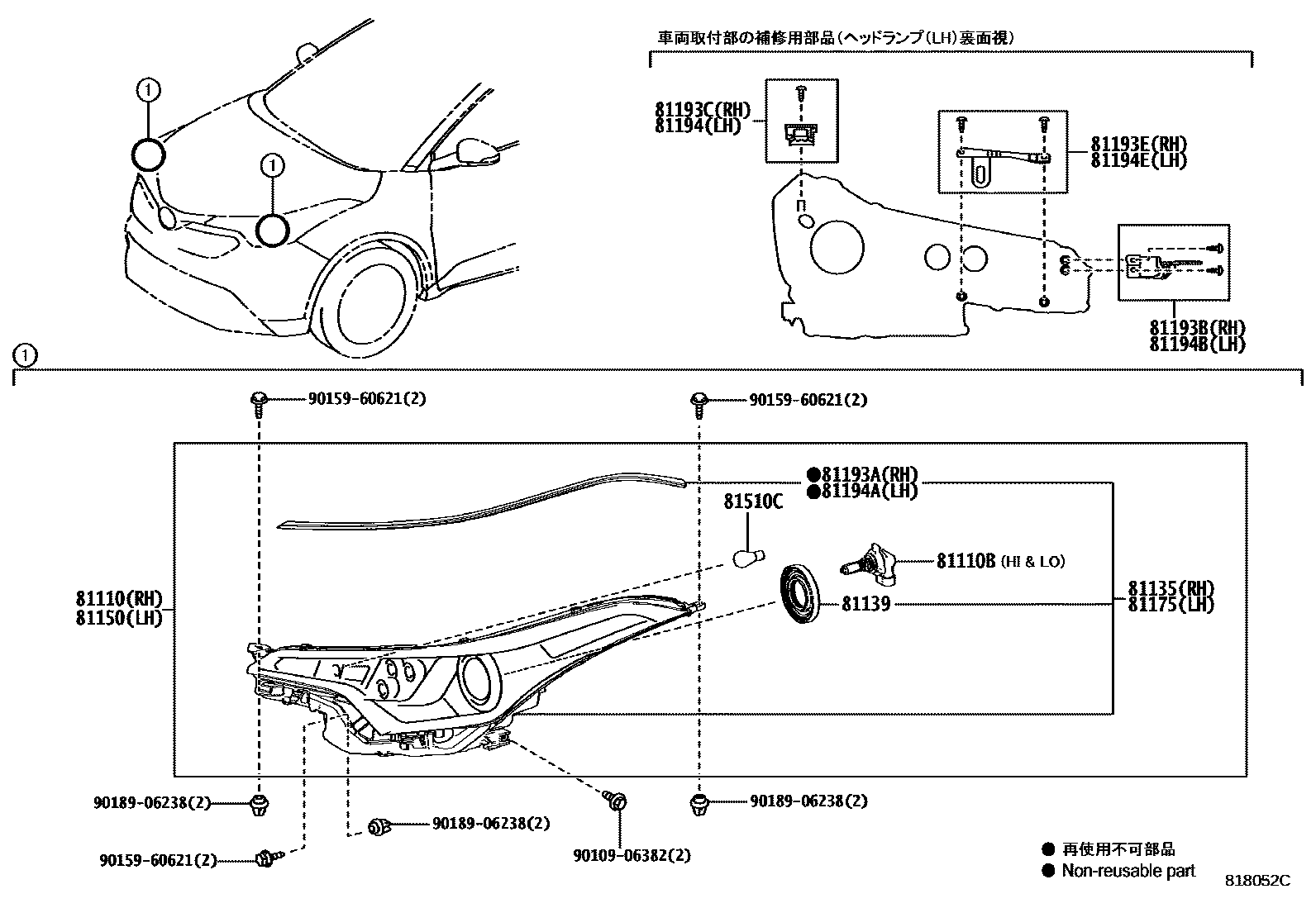

HEADLAMP

0001 1������������� 0002 1LED�������� 0003 1LED�������� 0004 1LED��������(�������� ����) 0006 1LED��������(�������� ����)

81110HEADLAMP ASSY, RH

main00000-00000supersedes 81110-10870iNGX10,50,ZYX10..G,GT; NGX10,50,ZYX10..S,ST201805-201910

main81110-10870iNGX50,ZYX10..G,GT201612-201805

main81110-10890iNGX50,ZYX10; NGX50,ZYX10..S,ST201612-201805

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13091×2iNGX10,50,ZYX10..S,ST201612-201910

81135UNIT ASSY, HEADLAMP, RH

main81130-10870iNGX50,ZYX10..G,GT201612-201805

main81140-10A60iNGX10,50,ZYX11..S,ST201910

main81145-10A20iNGX10,50,ZYX10..G,GT; NGX10,50,ZYX10..S,ST201805-201910

main81145-10A90iNGX10,50,ZYX11..G,GT201910

main81145-10890iNGX50,ZYX10; NGX50,ZYX10..S,ST201612-201805

main81145-10B10iNGX10,50..CVT..ST202008

main81145-10B30iNGX10,50,ZYX11..CVT..(G,GT)202106-202208

81139COVER, HEADLAMP SOCKET

main90075-65006×2iNGX10,50,ZYX10..S,ST201612-201910

81150HEADLAMP ASSY, LH

main00000-00000supersedes 81150-10870iNGX10,50,ZYX10..G,GT; NGX10,50,ZYX10..S,ST201805-201910

main81150-10870iNGX50,ZYX10..G,GT201612-201805

main81150-10890iNGX50,ZYX10; NGX50,ZYX10..S,ST201612-201805

81175UNIT ASSY, HEADLAMP, LH

main81070-10A60iNGX10,50,ZYX11..S,ST201910

main81170-10870iNGX50,ZYX10..G,GT201612-201805

main81185-10A20iNGX10,50,ZYX10..G,GT; NGX10,50,ZYX10..S,ST201805-201910

main81185-10A90iNGX10,50,ZYX11..G,GT201910

main81185-10890iNGX50,ZYX10; NGX50,ZYX10..S,ST201612-201805

main81185-10B10iZYX11..S;NGX10..6F..ST201910

main81185-10B30iNGX10,50,ZYX11..CVT..(G,GT)202208

81193APROTECTOR, HEADLAMP, RH

main81193-10040iNGX10,50,ZYX10201612-201910

main81193-10050iNGX10,50,ZYX11201910

81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

main81193-10020iNGX10,50,ZYX11201910

81193CRETAINER, RH HEADLAMP PROTECTOR, UPPER RH

main81193-10010iNGX10,50,ZYX11201910

81193ERETAINER, HEADLAMP PROTECTOR, UPPER RH NO.3

main81193-10030iNGX10,50,ZYX11201910

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-10010iNGX10,50,ZYX10201612-201910

81194APROTECTOR, HEADLAMP, LH

main81194-10040iNGX10,50,ZYX10201612-201910

main81194-10050iNGX10,50,ZYX11201910

81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

main81194-10020iNGX10,50,ZYX11201910

81194ERETAINER, HEADLAMP PROTECTOR, UPPER LH NO.3

main81194-10030iNGX10,50,ZYX10201612-201910

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021×2iNGX10,50,ZYX11..S,ST201910

main90981-15028×2iNGX50,ZYX10..G,GT201612-201805

9010906382

main90109-06382

9015960621

main90159-60621

9018906238

main90189-06238

18 parts on this diagram · 5 diagrams in section
