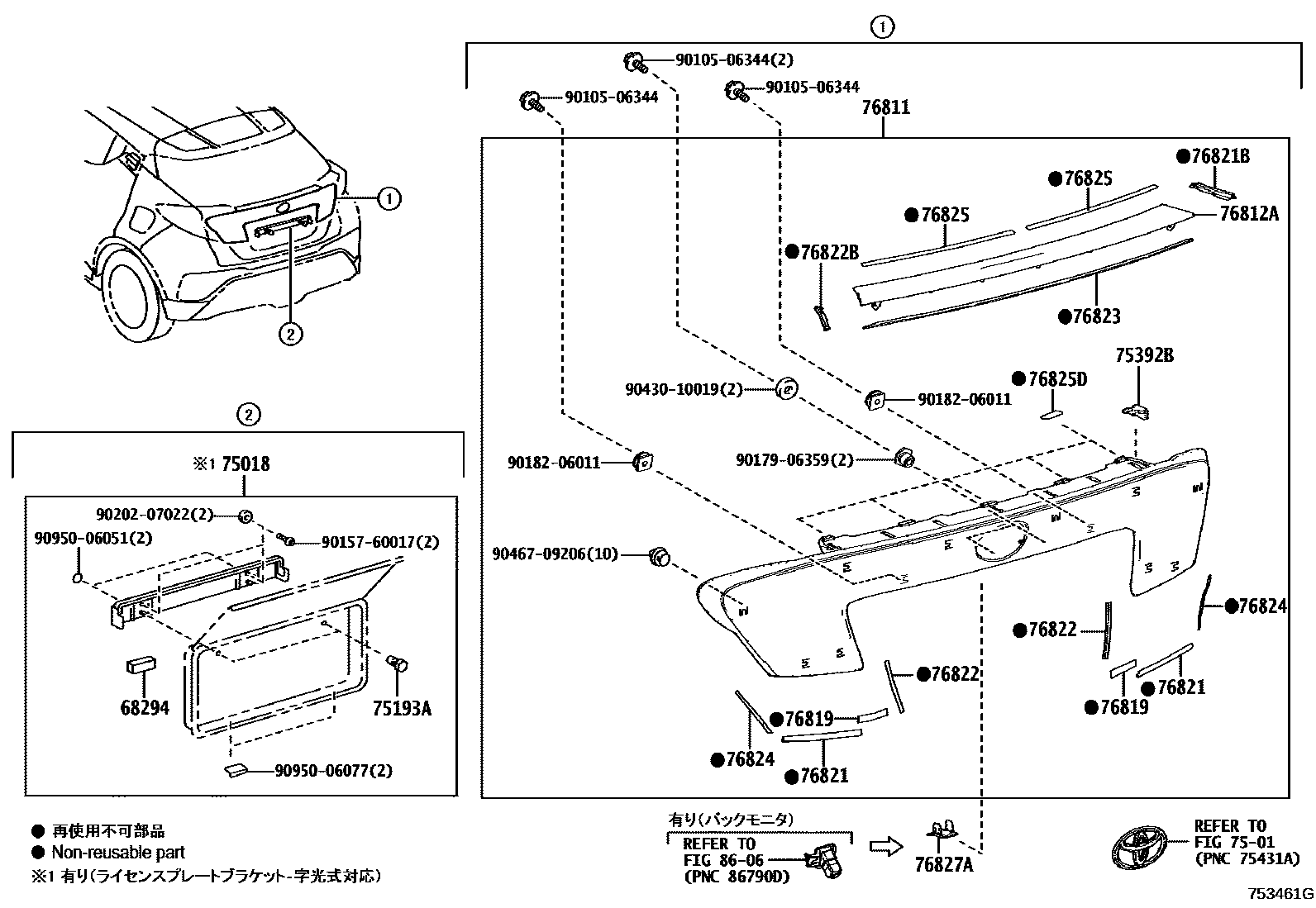

REAR MOULDING

0001 1 0002 1

68294DAM, BACK DOOR GLASS ADHESIVE

main68294-44030

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

75018FRAME SUB-ASSY, REAR LICENSE PLATE

main75010-48020

75193AHOLDER, REAR LICENSE PLATE

75392BRETEINER, OUTSIDE MOULDING, NO.1

main75392-35200iNGX10,50,ZYX10201612-201910

76811GARNISH, BACK DOOR, OUTSIDE

main76801-10170-A0iNGX10,50..GT201612-201910

main76801-10170-A0iZYX10201612-201910

main76801-10170-A0iNGX10,50201612-201910

WHITE PEARL CS.,070 ,2NA

main76801-10170-B0iZYX10201612-201910

main76801-10170-B0iZYX10201612-201910

METAL STREAM ME,1K0 ,2NK

main76801-10170-C0iNGX50..GT201612-201910

main76801-10170-C0iZYX10201612-201910

main76801-10170-C0iNGX10,50201612-201910

BLACK MC.,209 ,2ND

main76801-10170-D0iZYX10201612-201910

RED MC.,2NE ,2NF ,3T3

main76801-10170-D0iZYX10201612-201910

main76801-10170-E0iNGX10,50201612-201910

main76801-10170-E0iZYX10201612-201910

DK. BROWN M.M.,2NC ,4U3

main76801-10170-F0iZYX10201612-201910

main76801-10170-F0iZYX10201612-201910

YELLOW,2JU ,2PQ ,5A3

main76801-10170-G0iZYX10201612-201910

RADIANT GREEN ME.,2NJ ,6W9

main76801-10170-G0iZYX10201612-201910

main76801-10170-J0iNGX50201612-201805

BLUE ME.,2PR ,2RW ,8T7

main76801-10170-J0iNGX50201612-201805

main76801-10170-J1iZYX10201805-201910

NEBULA BLUE ME.,2NG ,2NH ,8X2

main76801-10170-J1iZYX10201805-201910

main76801-10220-A0iNGX10,50,ZYX11..G,GT201910-202109

WHITE PEARL CS.,070 ,2NA

main76801-10220-A0iZYX11..S;NGX10..6F..ST201910-202109

main76801-10220-A1iNGX10,50..CVT..ST202109

main76801-10220-A1iNGX10,50,ZYX11..G,GT202109

PLATINUM WHITE PEARL MC.,089 ,2VP

main76801-10220-A1iNGX10,50,ZYX11..G,GT202109

main76801-10220-A1iNGX10,50,ZYX11..G,GT202109

main76801-10220-A1iNGX10,50,ZYX11..G,GT202109

main76801-10220-B1iZYX11..S;NGX10..6F..ST201910

METAL STREAM ME,1K0 ,2NK

main76801-10220-B1iZYX11..S;NGX10..6F..ST201910

main76801-10220-B2iNGX10,50,ZYX11..G,GT202208

CEMENT GRAY ME.,1H5

main76801-10220-C0iZYX11..S;NGX10..6F..ST201910

BLACK MC.,209 ,2TA

main76801-10220-C0iNGX10,50,ZYX11..G,GT201910

main76801-10220-C1iNGX10,50,ZYX11..CVT..(G,GT)202106-202208

SPARKLING BLACK PEARL CS.,220

main76801-10220-C2iNGX10,50,ZYX11..CVT..(G,GT)202208

INAZUMA SPARKING BLACK GF,224

main76801-10220-D0iNGX10,50,ZYX11..G,GT201910

EMOTIONAL RED 2,2TB ,3U5

main76801-10220-D0iNGX10,50,ZYX11..G,GT201910

main76801-10220-E0iNGX10,50,ZYX11..G,GT201910-202012

ORANGE ME.,2TC ,4R8

main76801-10220-F0iNGX10,50,ZYX11..G,GT201910

main76801-10220-F0iZYX11..S;NGX10..6F..ST201910

YELLOW,2PQ ,5A3

main76801-10220-G0iNGX10,50,ZYX11..G,GT201910-202208

OXIDE BRONZE ME.,2TD ,6X1

main76801-10220-J0iNGX10,50,ZYX11..G,GT201910-202208

NEBULA BLUE ME.,2NH ,8X2

main76801-10220-J0iZYX11..S;NGX10..6F..ST201910-202208

main76801-10220-J1iNGX10,50,ZYX11..CVT..(G,GT)202008-202106

DK.BLUE MC.,8S6

main76801-10220-J2iZYX11..S;NGX10..6F..ST202208

main76801-10220-J2iZYX11..S;NGX10..6F..ST202208

main76801-10220-J2iZYX11..S;NGX10..6F..ST202208

main76801-10220-J2iZYX11..S;NGX10..6F..ST202208

DK.BLUE M.M.,8W7

main76801-10220-J2iNGX10,50..CVT..ST202208

main76801-10230-A0iNGX10,50,ZYX11..S,ST201910-202109

WHITE PEARL CS.,070 ,2NA

main76801-10230-A1iNGX10,50,ZYX11..S,ST202109

PLATINUM WHITE PEARL MC.,089 ,2VP

main76801-10230-B1iNGX10,50,ZYX11..S,ST201910

METAL STREAM ME,1K0 ,2NK

main76801-10230-B2iNGX10,50,ZYX11..S,ST202208

CEMENT GRAY ME.,1H5

main76801-10230-C0iNGX10,50,ZYX11..S,ST201910

BLACK MC.,209 ,2TA

main76801-10230-D0iNGX10,50,ZYX11..S,ST201910

EMOTIONAL RED 2,2TB ,3U5

main76801-10230-E0iNGX10,50,ZYX11..S,ST201910-202012

ORANGE ME.,2TC ,4R8

main76801-10230-F0iNGX10,50,ZYX11..S,ST201910

YELLOW,2PQ ,5A3

main76801-10230-G0iNGX10,50,ZYX11..S,ST201910-202208

OXIDE BRONZE ME.,2TD ,6X1

main76801-10230-J0iNGX10,50,ZYX11..S,ST201910-202208

NEBULA BLUE ME.,2NH ,8X2

main76801-10230-J1iNGX10,50,ZYX11..S,ST202208

DK.BLUE M.M.,8W7

76812AGARNISH, BACK DOOR, OUTSIDE NO.2

main76812-10030-A0iNGX10,50,ZYX10..G,GT201612-201910

WHITE PEARL CS.,070 ,2NA

main76812-10030-A0iNGX10,50,ZYX10..S,ST201612-201910

WHITE PEARL CS.,070 ,2NA ,2TP

main76812-10030-B0iNGX10,50,ZYX10201612-201910

METAL STREAM ME,1K0 ,2NK

main76812-10030-C0iNGX10,50,ZYX10..S,ST201612-201910

BLACK MC.,209 ,2ND

main76812-10030-C0iNGX10,50,ZYX10..S,ST201612-201910

BLACK MC.,209 ,2ND ,2TA

main76812-10030-D0iNGX10,50,ZYX10201612-201910

RED MC.,2NE ,2NF ,3T3

main76812-10030-E0iNGX10,50,ZYX10201612-201910

DK. BROWN M.M.,2NC ,4U3

main76812-10030-F0iNGX10,50,ZYX10201612-201910

YELLOW,2JU ,2PQ ,5A3

main76812-10030-G0iNGX10,50,ZYX10201612-201910

RADIANT GREEN ME.,2NJ ,6W9

main76812-10030-J0iNGX50,ZYX10201612-201805

BLUE ME.,2PR ,2RW ,8T7

main76812-10030-J1iNGX10,50,ZYX10201805-201910

NEBULA BLUE ME.,2NG ,2NH ,8X2

main76812-10040-A0iNGX10,50,ZYX11..S,ST201910-202109

WHITE PEARL CS.,070 ,2NA

main76812-10040-A1iNGX10,50,ZYX11..S,ST202109

PLATINUM WHITE PEARL MC.,089 ,2VP

main76812-10040-B1iNGX10,50,ZYX11..S,ST201910

METAL STREAM ME,1K0 ,2NK

main76812-10040-B2iNGX10,50,ZYX11..S,ST202208

CEMENT GRAY ME.,1H5

main76812-10040-C0iNGX10,50,ZYX11..S,ST201910

BLACK MC.,209 ,2TA

main76812-10040-D1iNGX10,50,ZYX11..S,ST201910

EMOTIONAL RED 2,2TB ,3U5

main76812-10040-E0iNGX10,50,ZYX11..S,ST201910-202012

ORANGE ME.,2TC ,4R8

main76812-10040-F0iNGX10,50,ZYX11..S,ST201910

YELLOW,2PQ ,5A3

main76812-10040-G1iNGX10,50,ZYX11..S,ST201910-202208

OXIDE BRONZE ME.,2TD ,6X1

main76812-10040-J0iNGX10,50,ZYX11..S,ST201910-202208

NEBULA BLUE ME.,2NH ,8X2

main76812-10040-J2iNGX10,50,ZYX11..S,ST202208

DK.BLUE M.M.,8W7

main76812-10050iNGX10,50,ZYX11..G,GT201910

76819SEAL, BACK DOOR OUTSIDE GARNISH

main76819-10010iNGX10,50,ZYX10201612-202008

76821PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER

main76821-10010iNGX10,50,ZYX11201612-201910

76821BPROTECTOR, BACK DOOR GARNISH SIDE, RH

main76841-10010iNGX10,50,ZYX10201612-201910

main76841-10020iNGX10,50,ZYX11..G,GT201910

76822PROTECTOR, BACK DOOR GARNISH MOULDING, LOWER

main76822-10010iNGX10,50,ZYX11201612-201910

76822BPROTECTOR, BACK DOOR GARNISH SIDE, LH

main76841-10020iNGX10,50,ZYX11..G,GT201910

main76842-10010iNGX10,50,ZYX10201612-201910

76823PROTECTOR, BACK DOOR GARNISH MOULDING, RH

main76823-10020iNGX10,50,ZYX10201612-201910

main76823-10030iNGX10,50,ZYX11..S,ST201910

main76823-10040iZYX11..S;NGX10..6F..ST201910

76824PROTECTOR, BACK DOOR GARNISH MOULDING, LH

main76824-10020iZYX11..S;NGX10..6F..ST201910

main76824-10020iNGX10,50,ZYX10201612-201910

76825PROTECTOR, BACK DOOR OUTSIDE GARNISH

main76825-10040iNGX10,50,ZYX11201612-201910

76825DPROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.1

main76835-10020iNGX10,50,ZYX11201612-201910

76827ARETAINER, BACK DOOR GARNISH, NO.2

main76827-10060iNGX10,50,ZYX10201612-202008

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

9010506344

main90105-06344

9015760017

main90157-60017

9017906359

main90179-06359

9018206011

main90182-06011

9020207022

main90202-07022

9043010019

main90430-10019

9046709206

main90467-09206

9095006051

main90950-06051

9095006077

main90950-06077

27 parts on this diagram · 2 diagrams in section
