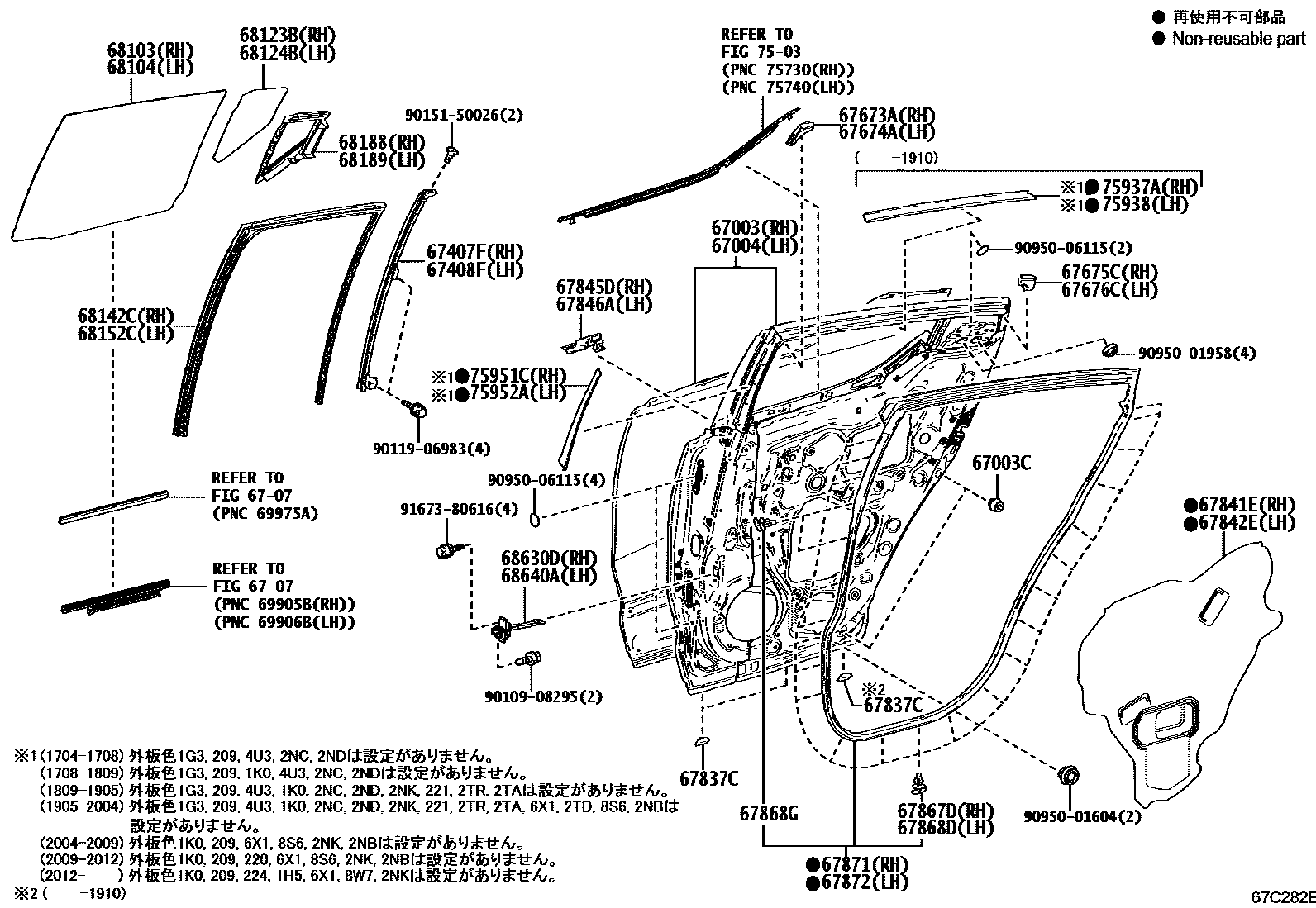

REAR DOOR PANEL & GLASS

0001 1������� 0002 1������

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-10180iNGX10,50,ZYX10201612-201901

main67003-10181iNGX10,50,ZYX10201901-201910

67003CCUSHION, REAR DOOR PANEL

main90541-09124×4iNGX10,50,ZYX10201612-201910

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-10190iNGX10,50,ZYX10201612-201901

main67004-10191iNGX10,50,ZYX10201901-201910

6707REAR DOOR WINDOW REGULATOR & HINGE

→ Go to FIG 67-07

67407FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH

main67407-10080iNGX10,50,ZYX10201612-201910

main67407-10081iNGX10,50,ZYX11202003

67408FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH

main67408-10080iNGX10,50,ZYX11201910-202002

main67408-10081iNGX10,50,ZYX11202003

67673AGARNISH, REAR DOOR FRAME, RH

main67673-10010iNGX10,50,ZYX10201612-201910

67674AGARNISH, REAR DOOR FRAME, LH

main67674-10010iNGX10,50,ZYX10201612-201910

67675CGARNISH, REAR DOOR FRAME, NO.2 RH

main67675-10010iNGX50,ZYX10201612-201802

main67675-10011iNGX10,50,ZYX10201803-201910

67676CGARNISH, REAR DOOR FRAME, NO.2 LH

main67676-10010iNGX50,ZYX10201612-201802

main67676-10011iNGX10,50,ZYX11201910

67837CSEAL, REAR DOOR DUST PROOF

main67837-10040×6iNGX50,ZYX10201612-201711

main67837-10041×6iNGX10,50,ZYX10201712-201910

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-10060iNGX10,50,ZYX10201612-201910

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-10020iNGX10,50,ZYX10201612-201910

67845DSEAL, REAR DOOR FRONT OUTSIDE, RH

main67845-10010iNGX10,50,ZYX10201612-201910

67846ASEAL, REAR DOOR FRONT OUTSIDE, LH

main67846-10010iNGX10,50,ZYX10201612-201910

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150×24iNGX10,50,ZYX10201612-201806

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150×24iNGX10,50,ZYX10201612-201806

67868GRETAINER, DOOR WEATHERSTRIP

main67867-52010×4iNGX10,50,ZYX10201806-201910

67871WEATHERSTRIP, REAR DOOR, RH

main67871-10100iNGX10,50,ZYX10201612-201910

67872WEATHERSTRIP, REAR DOOR, LH

main67872-10100iNGX10,50,ZYX10201612-201910

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-10200iNGX10,50,ZYX10201612-201910

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-10200iNGX10,50,ZYX10201612-201910

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-10220iNGX10,50,ZYX10201612-201910

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-10220iNGX10,50,ZYX10201612-201910

68142CRUN, REAR DOOR GLASS, RH

main68142-10080iNGX10,50,ZYX10201612-201901

main68142-10081iNGX10,50,ZYX10201905-201910

main68142-10090iNGX10,50,ZYX10201901-201905

68152CRUN, REAR DOOR GLASS, LH

main68152-10040iNGX10,50,ZYX10201612-201901

main68152-10041iNGX10,50,ZYX10201905-201910

main68152-10050iNGX10,50,ZYX10201901-201905

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-10060iNGX10,50,ZYX10201612-201910

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-10060iNGX10,50,ZYX10201612-201910

68630DCHECK ASSY, REAR DOOR, RH

main68630-10060iNGX10,50,ZYX10201612-201910

68640ACHECK ASSY, REAR DOOR, LH

main68630-10060iNGX10,50,ZYX10201612-201910

7503SIDE MOULDING

→ Go to FIG 75-03

75937ATAPE, BLACK OUT, INNER UPPER RH

main75987-10360iNGX10,50,ZYX10201612-201905

main75987-10361iNGX10,50,ZYX10201906-201910

75938TAPE, BLACK OUT, INNER UPPER LH

main75988-10360iNGX10,50,ZYX10201612-201811

main75988-10361iNGX10,50,ZYX10201812-201910

75951CTAPE, BLACK OUT, INNER FRONT RH

main75977-10080iNGX10,50,ZYX10201612-201910

75952ATAPE, BLACK OUT, INNER FRONT LH

main75978-10070iNGX10,50,ZYX10201612-201910

9010908295

main90109-08295

9011906983

main90119-06983

9015150026

main90151-50026

9095001604

main90950-01604

9095001958

main90950-01958

9095006115

main90950-06115

9167380616

main91673-80616

42 parts on this diagram · 2 diagrams in section
