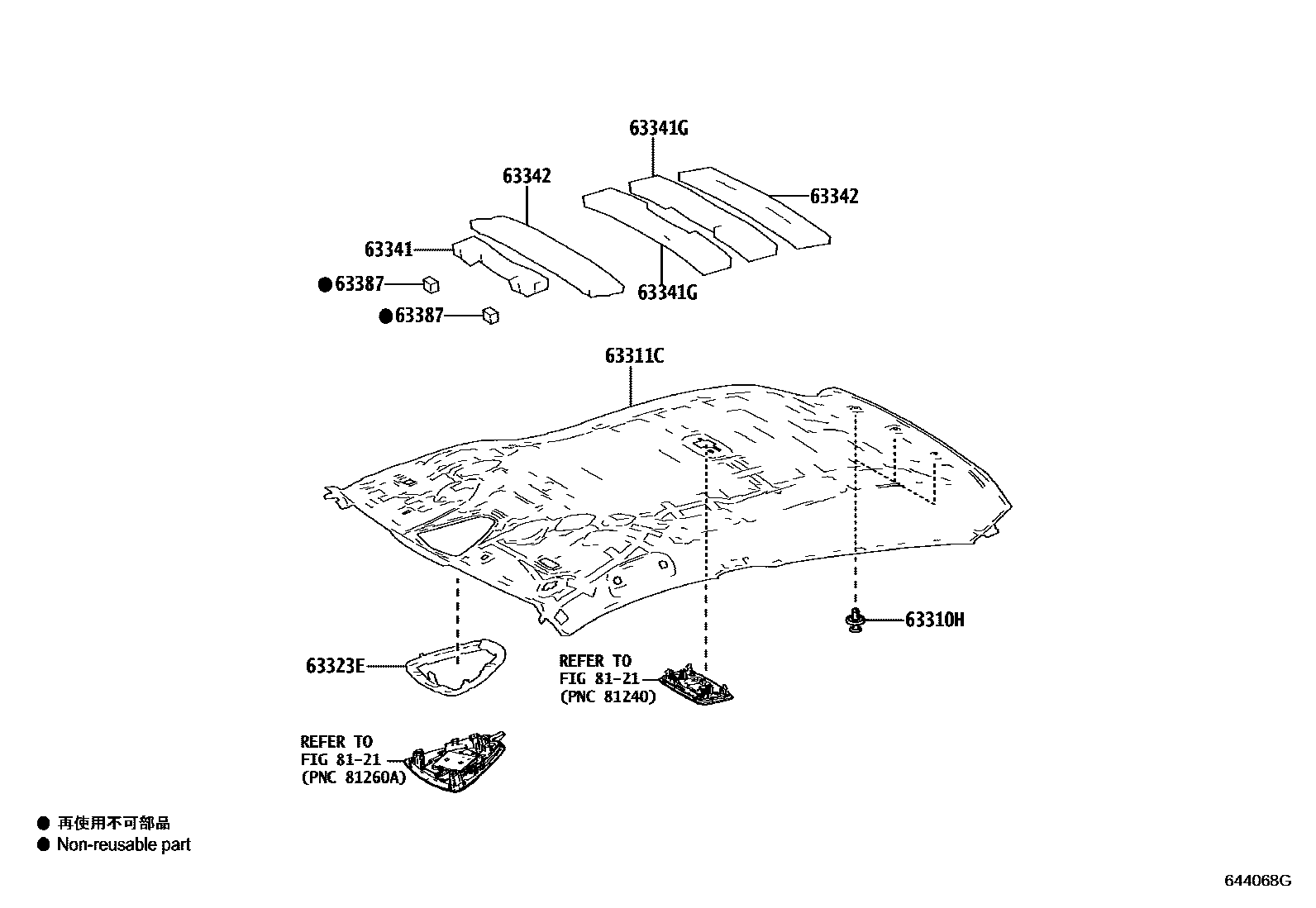

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1 0003 1

63310HCLIP(FOR ROOF HEADLINING)

main63399-10010-C0×3iNGX10,50,ZYX11..G,GT; NGX10,50,ZYX11..S,ST201910

BLACK,TRIM2#; BLACK,TRIM2#,4#

main90467-07215×3iNGX10,50,ZYX10201612-201910

63311CHEADLINING, ROOF

main63311-10180-C2iNGX10,50,ZYX10..G,GT201612-201910

BLACK,TRIM2#

main63311-10190-C2iNGX10,50,ZYX10..S,ST201612-201910

BLACK,TRIM2#

main63311-10230-C0supersedes 63311-10250-C0iNGX10,50,ZYX11..G,GT201910-202008

BLACK,TRIM2#,4#

main63311-10240-C0supersedes 63311-10260-C0iNGX10,50,ZYX11..S,ST201910-202008

BLACK,TRIM2#

63323ECASE, HEADLINING LAMP

main63323-10010iNGX10,50,ZYX10201612-201910

63341PAD, ROOF SILENCER, NO.1

main63341-10080iNGX10,50,ZYX10201612-201808

main63341-10090supersedes 63341-10100iNGX10,50,ZYX10201808-201910

63341GPAD, ROOF SILENCER

main63341-10090×2iNGX10,50,ZYX10201612-201910

63342PAD, ROOF SILENCER, NO.2

main63342-10050×2iNGX10,50,ZYX10201612-201910

63387PAD, ROOF HEADLINING FORMING

main63387-52010×2iNGX10,50,ZYX10201612-201910

8121INTERIOR LAMP

→ Go to FIG 81-21

8 parts on this diagram · 3 diagrams in section
