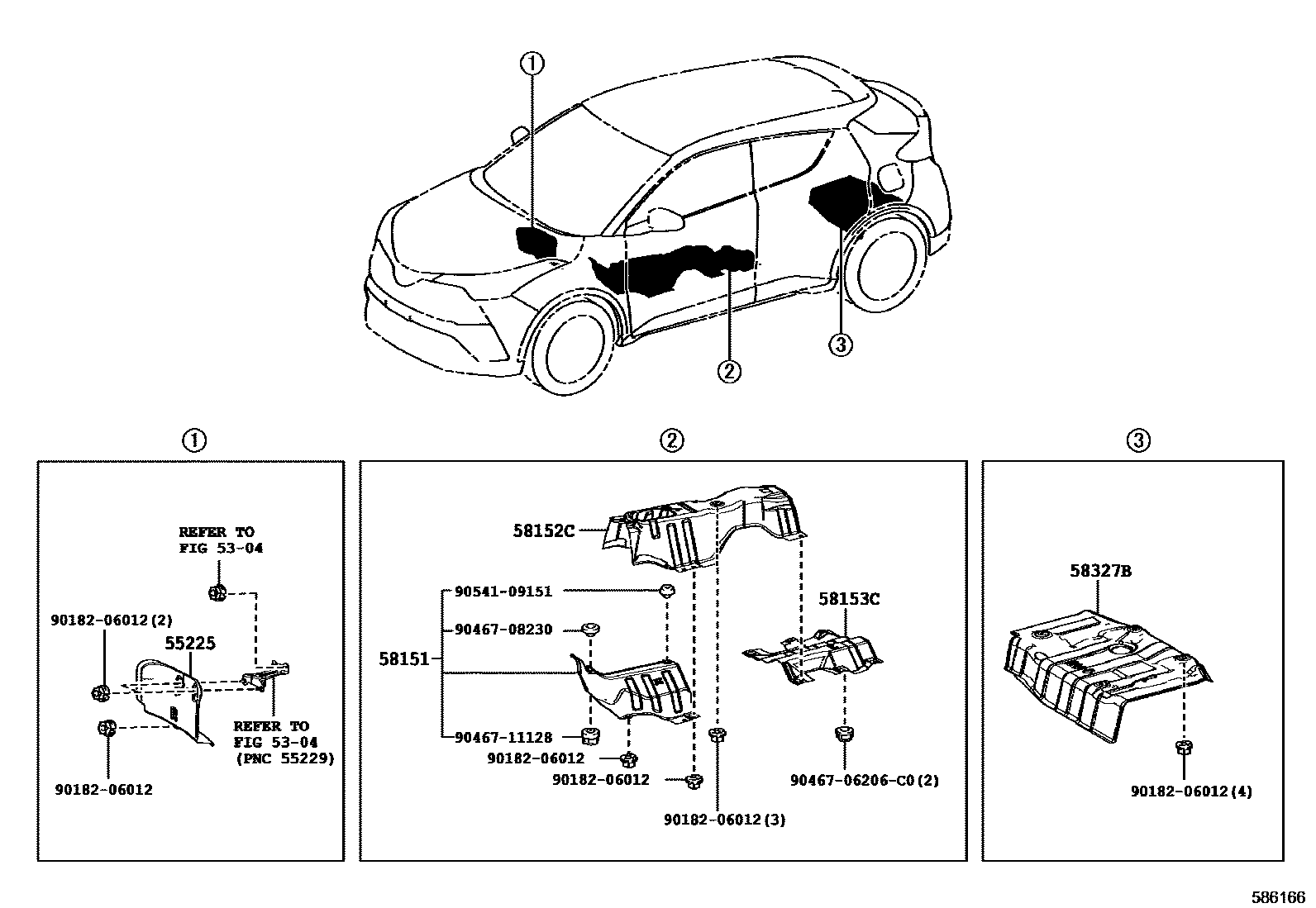

FLOOR INSULATOR

0001 1 0002 1 0003 1

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

55225INSULATOR, DASH PANEL HEAT

main55225-10010iNGX10,50201910

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-10040iZYX10201612-201910

main58151-10051iNGX10201805-201910

main58151-F4040iNGX10201805-201910

main58151-10060iNGX50201910-202308

58152CINSULATOR, FLOOR HEAT, NO.2

main58152-10030iNGX50201910-202308

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-10030iNGX10,ZYX10201612-201910

58153CINSULATOR, FLOOR HEAT, NO.3

main58153-10040iNGX50201910-202308

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-10060iNGX10,50,ZYX10201612-201905

main58327-10061iNGX10,50,ZYX10201906-201910

9018206012

main90182-06012

9046706206C0

main90467-06206C0

9046708230

main90467-08230

9046711128

main90467-11128

9054109151

main90541-09151

12 parts on this diagram · 3 diagrams in section
