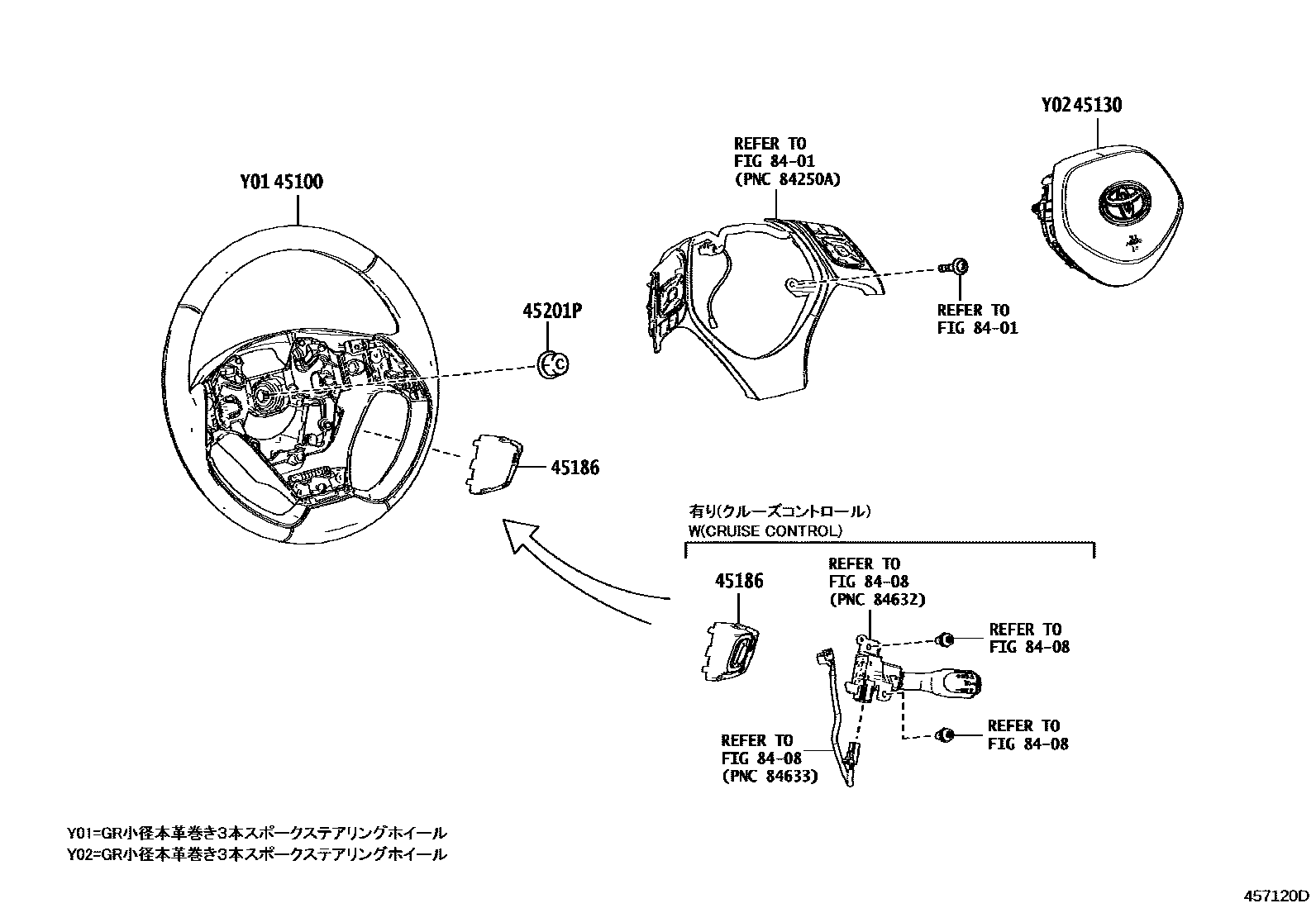

STEERING WHEEL

0001 1 0002 1GR SPORT 0003 1GR SPORT(DOP)

45100WHEEL ASSY, STEERING

main45100-10460-C2supersedes 45100-10470-C0iNGX50,ZYX10..S,ST201612-201805

main45100-10470-C1iNGX10,50,ZYX11..S,ST201910-202308

main45100-10500-C0iNGX10,50,ZYX11..CVT..(G,GT); NGX10,50,ZYX11..G,GT201910-202308

main45100-10510-C0supersedes 45100-10500-C0iNGX10,50,ZYX11..G,GT; NGX10,50,ZYX11..S,ST201910

main45100-10590-C0iNGX10,50,ZYX11..CVT..(G,GT)202208

main45100-48650-C2iZYX11..S;NGX10..6F..ST201910

45130BUTTON ASSY, HORN

main45130-10270-C1iNGX10,50,ZYX10201612-201910

BLACK,TRIM2#

main45130-48301-C0iNGX10,50..CVT..ST202008

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-10020-C1supersedes 45186-10030-C1iNGX50..GT;NGX10,ZYX10..G,GT,ST201612-201910

BLACK,TRIM2#

main45186-48070-C0iNGX10,50..CVT..ST202008

45201PNUT, STEERING WHEEL SET

main90179-12071iNGX10,50,ZYX10201612-201910

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

6 parts on this diagram · 3 diagrams in section
