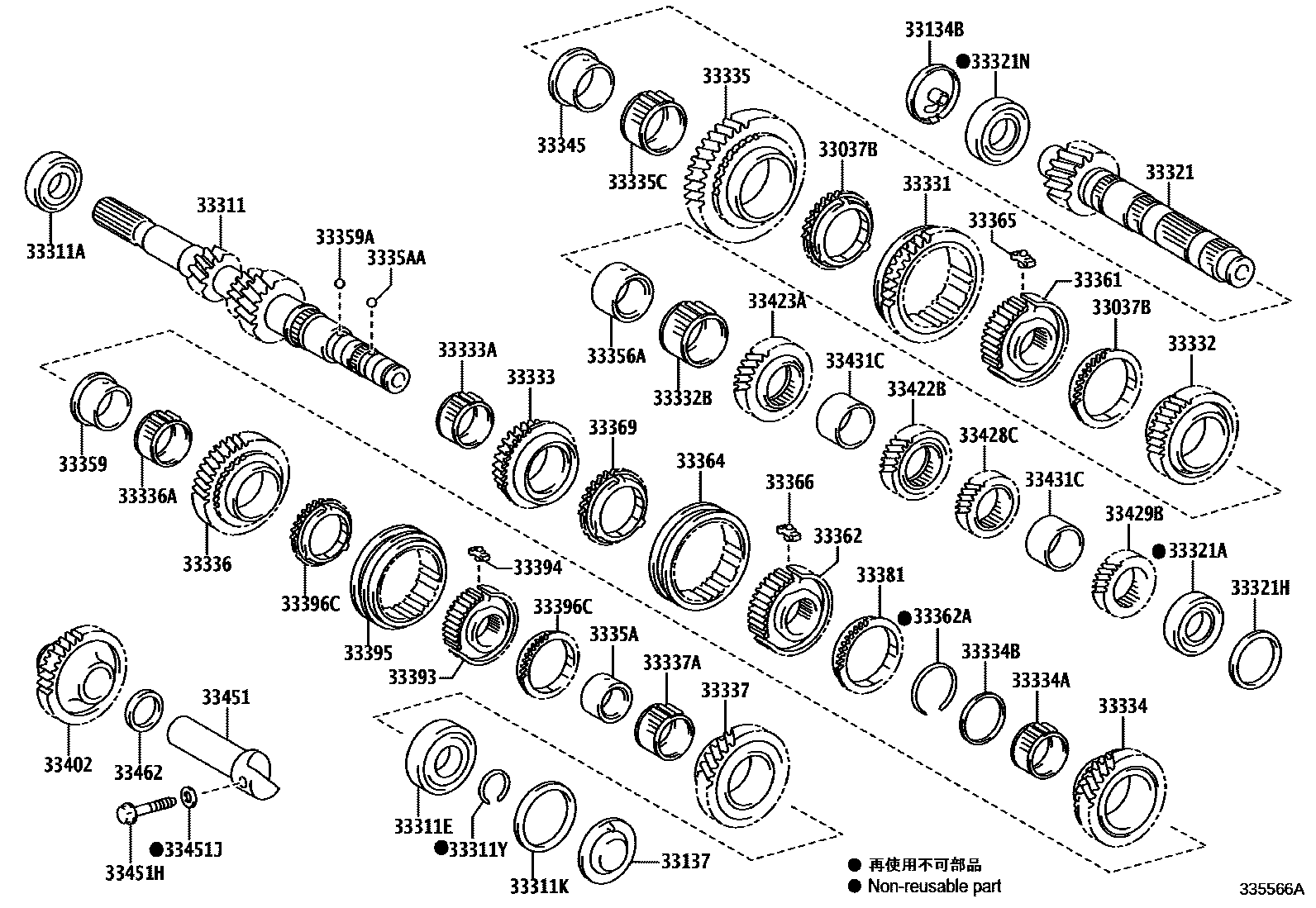

TRANSMISSION GEAR (MTM)
33037BRING SET, SYNCHRONIZER, NO.1
33134BCOVER, OUTPUT SHAFT(MTM)
33137COVER, INPUT SHAFT(MTM)
33311SHAFT, INPUT
33311ABEARING (FOR INPUT SHAFT FRONT)
33311EBEARING, RADIAL BALL (FOR INPUT SHAFT REAR)
33311KSHIM (FOR INPUT SHAFT REAR BEARING)
33311YRING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING)
33321SHAFT, OUTPUT
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321HSHIM (FOR OUTPUT SHAFT REAR BEARING)
33321NBEARING (FOR OUTPUT SHAFT FRONT)
33331GEAR, REVERSE
33332GEAR, 2ND
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
33333GEAR, 3RD
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
33334GEAR, 4TH
33334ABEARING, NEEDLE ROLLER (FOR 4TH GEAR)
33334BSPACER (FOR 4TH GEAR BEARING)
33335GEAR, 1ST
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33336GEAR, 5TH
33336ABEARING, NEEDLE ROLLER (FOR 5TH GEAR)
33337GEAR SUB-ASSY, 6TH
33337ABEARING, NEEDLE ROLLER (FOR 6TH GEAR)
33345BUSH, 1ST GEAR
33356ARACE, 2ND GEAR BEARING INNER
33359RACE, 5TH GEAR BEARING INNER
33359ABALL, 5TH GEAR BEARING INNER RACE LOCK
3335ARACE, 6TH GEAR BEARING, INNER(MTM)
3335AABALL, 6TH GEAR BEARING, INNER RACE ROCK(MTM)
33361HUB, TRANSMISSION CLUTCH, NO.1
33362HUB, TRANSMISSION CLUTCH, NO.2
33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
33364SLEEVE, TRANSMISSION HUB, NO.2
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33369RING, SYNCHRONIZER, NO.3
33381RING, 2ND SYNCHRONIZER OUTER
33393HUB, TRANSMISSION CLUTCH, NO.3
33394KEY, SYNCHROMESH SHIFTING, NO.3
33395SLEEVE, TRANSMISSION HUB, NO.3
33396CRING, SYNCHRONIZER, NO.5(MTM)
33402GEAR SUB-ASSY, REVERSE IDLER
33422BGEAR, 4TH DRIVEN
33423AGEAR, 3RD DRIVEN
33428CGEAR, 5TH DRIVEN
33429BGEAR, 6TH DRIVEN
33431CSPACER, OUTPUT GEAR
33451SHAFT, REVERSE IDLER GEAR
33451HBOLT (FOR REVERSE IDLER GEAR SHAFT)
33451JGASKET (FOR REVERSE IDLER GEAR SHAFT)
33462WASHER, REVERSE IDLER THRUST
54 parts on this diagram · 2 diagrams in section
