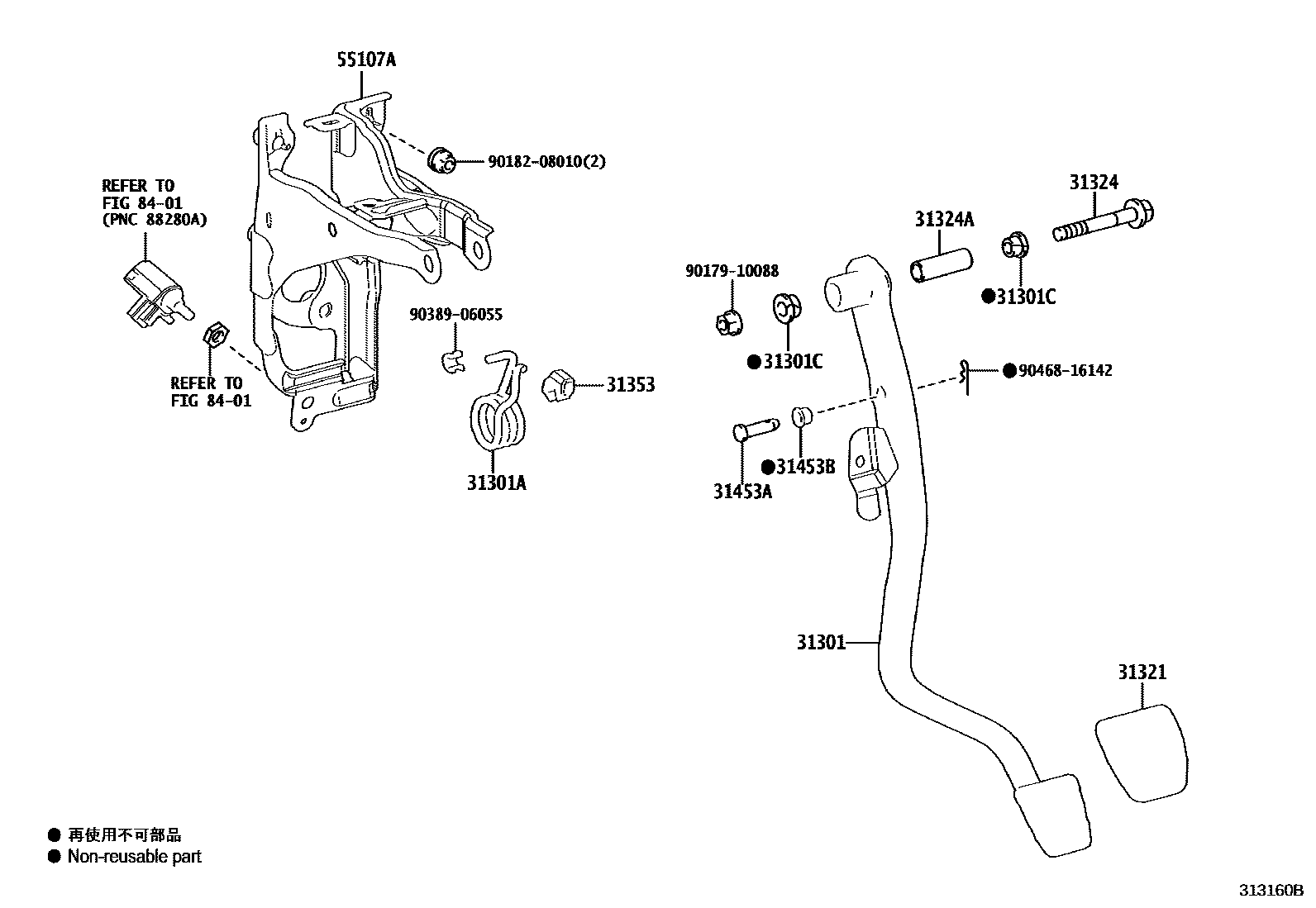

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-F4020iNGX10..6F201910

31301ASPRING(FOR CLUTCH PEDAL)

main31394-02010iNGX10..6F202110

main90949-03068iNGX10..6F201910-202109

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015×2iNGX10..6F201910

31321PAD, CLUTCH PEDAL

main31321-42010iNGX10..6F201910

main31321-10050iNGX10..6F..ST201910

31324SHAFT, CLUTCH PEDAL

main90105-10524iNGX10..6F201910

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iNGX10..6F201910

31353HOLDER, CLUTCH PEDAL SPRING

main31353-26010iNGX10..6F201910

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08084iNGX10..6F201910

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08033iNGX10..6F201910

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-F4020iNGX10..6F201910

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9017910088

main90179-10088

9018208010

main90182-08010

9038906055

main90389-06055

9046816142

main90468-16142

15 parts on this diagram · 2 diagrams in section
