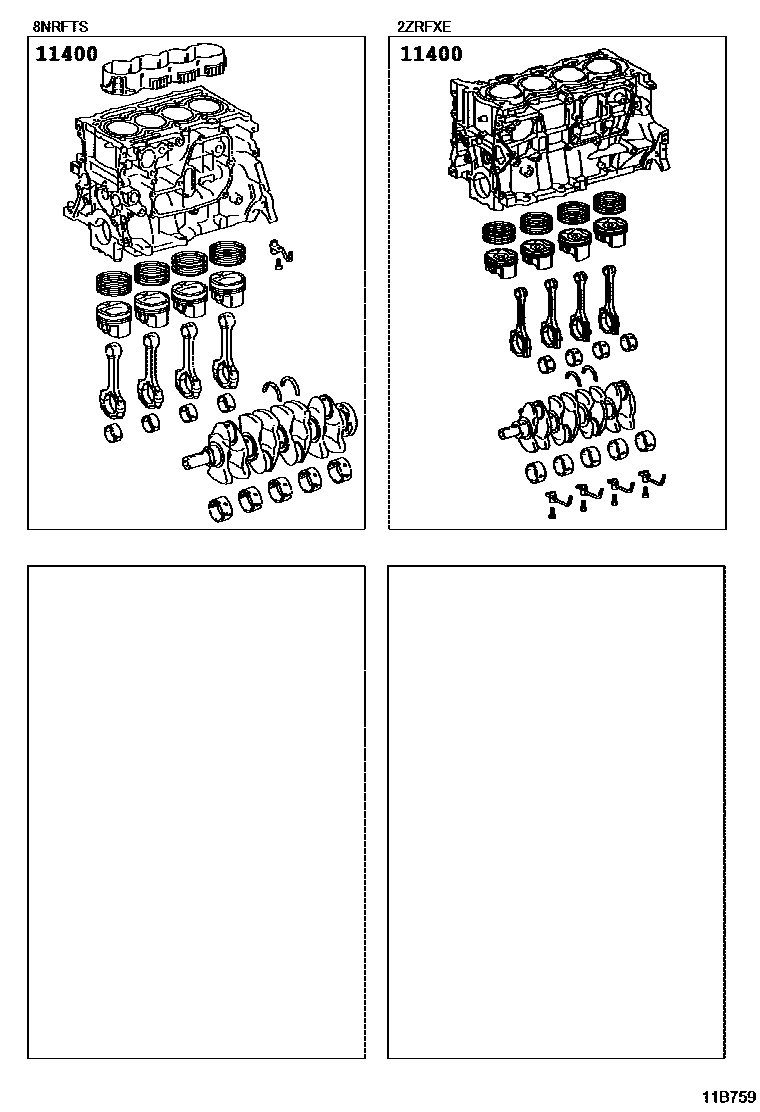

SHORT BLOCK ASSEMBLY

Parts diagram

11400BLOCK ASSY, SHORT

main11400-37280i201910-202110

main11400-37380i202110

main11400-47200i201910-202008

main11400-47230i201910

1 parts on this diagram · 1 diagram in section
