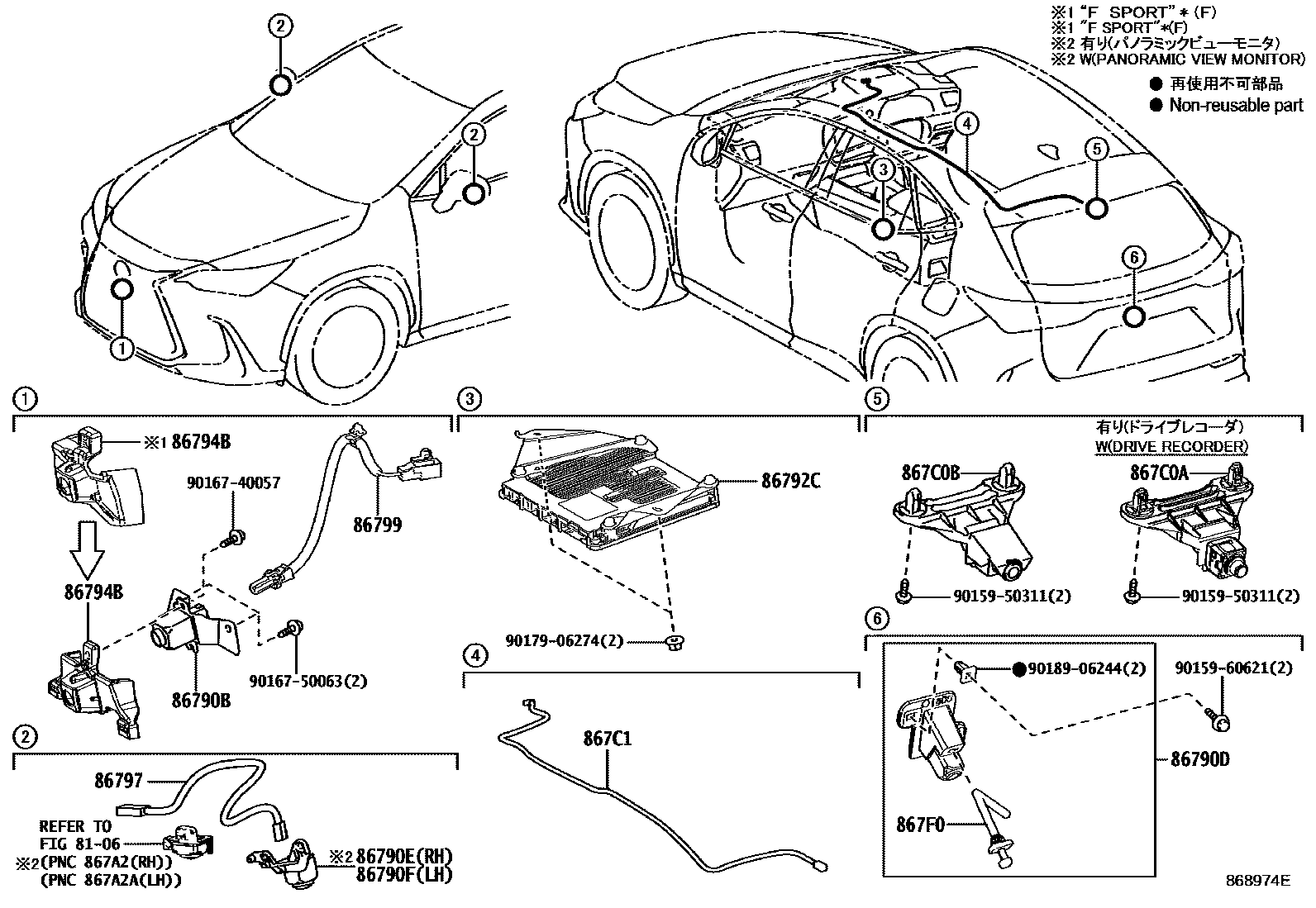

CAMERA & REAR MONITOR DISPLAY

8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

→ Go to FIG 81-06

86790BCAMERA ASSY, TELEVISION, FR

main86790-78091iAAZA2#,AAZH2#; AAZH2#; TAZA25202303-202403

main86790-78092iAAZH2#,TAZA25202501

main86790-78090iAAZA2#,AAZH2#,TAZA25; AAZH2#202111-202303

86790DCAMERA ASSY, TELEVISION, RR

main86790-78060iAAZA2#,AAZH2#,TAZA25202111-202303

main86790-78061iAAZA2#,AAZH2#,TAZA25202403-202412

main86790-78062iAAZA2#202501-202506

86790ECAMERA ASSY, TELEVISION, SIDE RH

main86790-78081iAAZA2#,AAZH2#,TAZA25202403-202412

main86790-78082iAAZH2#,TAZA25202501

main86790-78080iAAZA2#,AAZH2#,TAZA25202111-202303

86790FCAMERA ASSY, TELEVISION, SIDE LH

main86790-78071iAAZA2#,AAZH2#; TAZA25202303-202403

main86790-78072iAAZH2#,TAZA25202501

main86790-78070iAAZA2#,AAZH2#,TAZA25202111-202303

86792CCOMPUTER, PARKING ASSIST

main86792-78180iAAZA2#,AAZH2#,TAZA25202111-202303

main86792-78140supersedes 86792-78410iAAZH2#; TAZA25202403-202507

main86792-78160iAAZA2#,AAZH20,25202111-202303

main86792-78161iAAZA2#,AAZH20,25202303-202403

main86792-78190iAAZA2#,AAZH20,25,TAZA25202111-202303

main86792-78191iAAZA2#,AAZH20,25202303-202403

main86792-78200iAAZA2#,AAZH2#202111-202303

main86792-78201supersedes 86792-78181iAAZA2#,AAZH2#202303-202403

main86792-78260iAAZH20,25; TAZA25202111-202303

main86792-78261iAAZH20,25; TAZA25202303-202403

main86792-78280iAAZH2#; TAZA25202111-202303

main86792-78281iAAZH2#; TAZA25202303-202403

main86792-78410supersedes 86792-78370iAAZH2#; TAZA25202403-202507

86794BCOVER, TELEVISION CAMERA

main86794-78010iAAZA2#202403-202506

86797WIRE, TELEVISION CAMERA, NO.2

main86799-78010×2iTAZA25202303-202403

86799WIRE, TELEVISION CAMERA

main86799-78030iAAZA2#202403-202506

867C0ACAMERA ASSY, INNER MIRROR, FR

main867C0-78050iAAZA2#,AAZH2#,TAZA25202303-202403

867C0BCAMERA ASSY, INNER MIRROR, RR

main867C0-78010iAAZA2#,AAZH2#,TAZA25202111-202303

main867C0-78030iAAZA2#,AAZH2#,TAZA25202303-202403

867C1WIRE, MIRROR CAMERA

main867C1-78010iAAZA2#202403-202507

867F0NOZZLE ASSY, CAMERA CLEANER

main867F0-26020iAAZA2#202403-202506

9015950311

main90159-50311

9015960621

main90159-60621

9016740057

main90167-40057

9016750063

main90167-50063

9017906274

main90179-06274

9018906244

main90189-06244

19 parts on this diagram · 1 diagram in section
