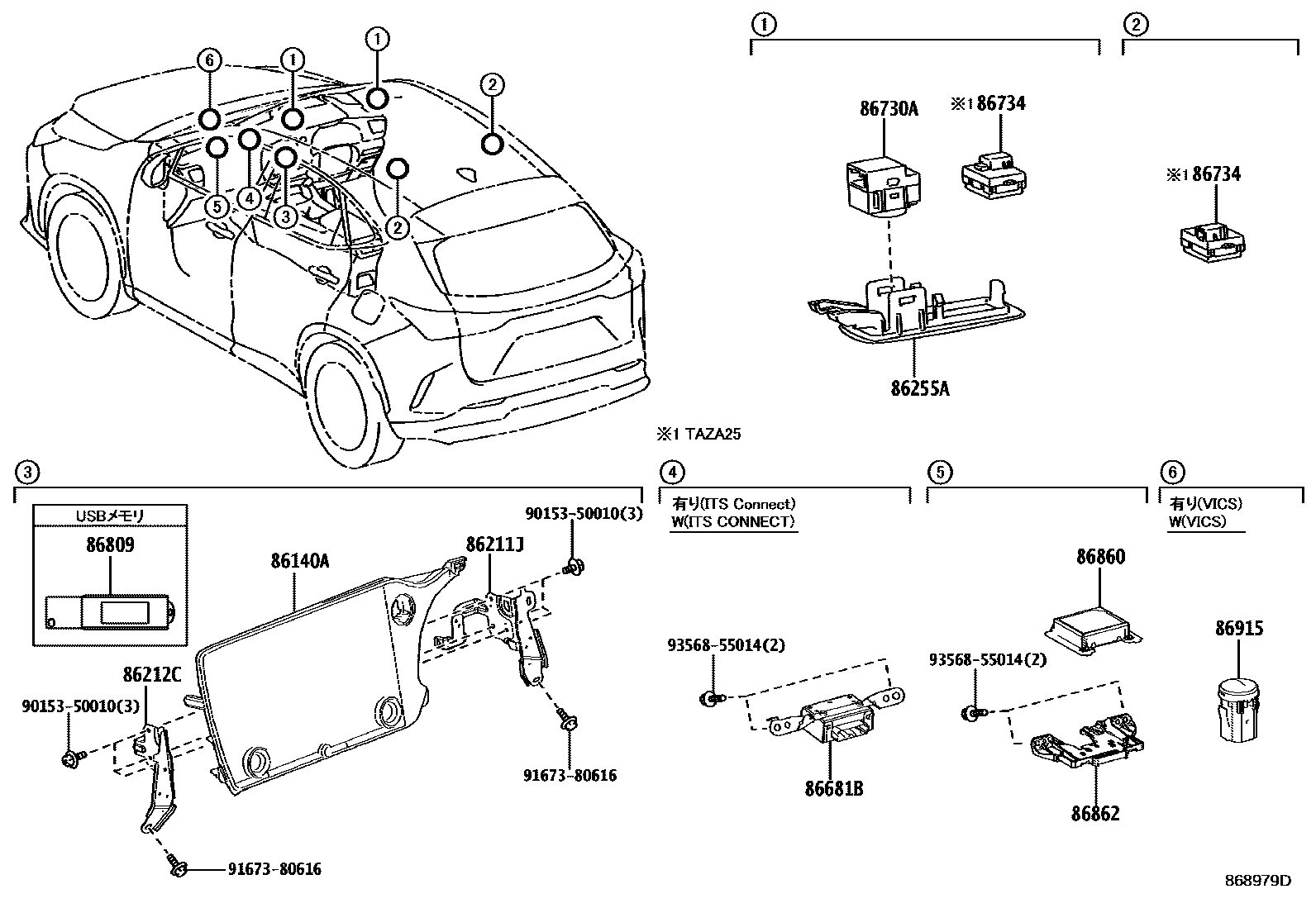

NAVIGATION & FRONT MONITOR DISPLAY

86140ARECEIVER ASSY, RADIO & DISPLAY

main86100-78290i202111-202206

main86100-78291i202207-202211

main86100-78292i202212-202303

main86100-78A80i202403-202405

main86100-78A81i202406-202409

main86100-78A82i202410-202411

main86100-78A83i202411-202506

main86140-78430i202111-202303

main86140-78C90i202303-202403

86211JBRACKET, RADIO RECEIVER, NO.1

main86211-78050i202111-202403

86212CBRACKET, RADIO RECEIVER, NO.2

main86212-78070i202403-202506

main86212-78050i202111-202403

86255ACASE, MICROPHONE, NO.1

main86255-78020-A0×2i202111-202403

WHITE,TRIM20,21,22

FROMAGE,TRIM00,01,20,21; FROMAGE,TRIM00,01,20,21,22

BLACK,TRIM00,01,02,03,23,24,25,3#,43; BLACK,TRIM00,01,02,03,23,3#,43; BLACK,TRIM00,01,03,23,24,25,3#,43

HAZEL,TRIM40,41,42,43; HAZEL,TRIM40,41,43

86681BDIVIDER, ANTENNA

main86681-33020i202403-202506

86730AMICROPHONE ASSY, TELEPHONE

main86730-78010×2i202403-202506

86734MICROPHONE, ACTIVE NOISE CONTROL

main86734-11030×4i202403

86809USB SET, USB MEMORY NAVIGATION DATA

main86809-78010i202111-202303

main86809-78011i202304-202310

main86809-78012i202403-202506

86860ANTENNA ASSY, NAVIGATION

86862BRACKET, NAVIGATION ANTENNA

86915TRANSCEIVER, OPTICAL BEACON

main86915-60010i202403-202506

9015350010

9167380616

9356855014

14 parts on this diagram · 1 diagram in section
