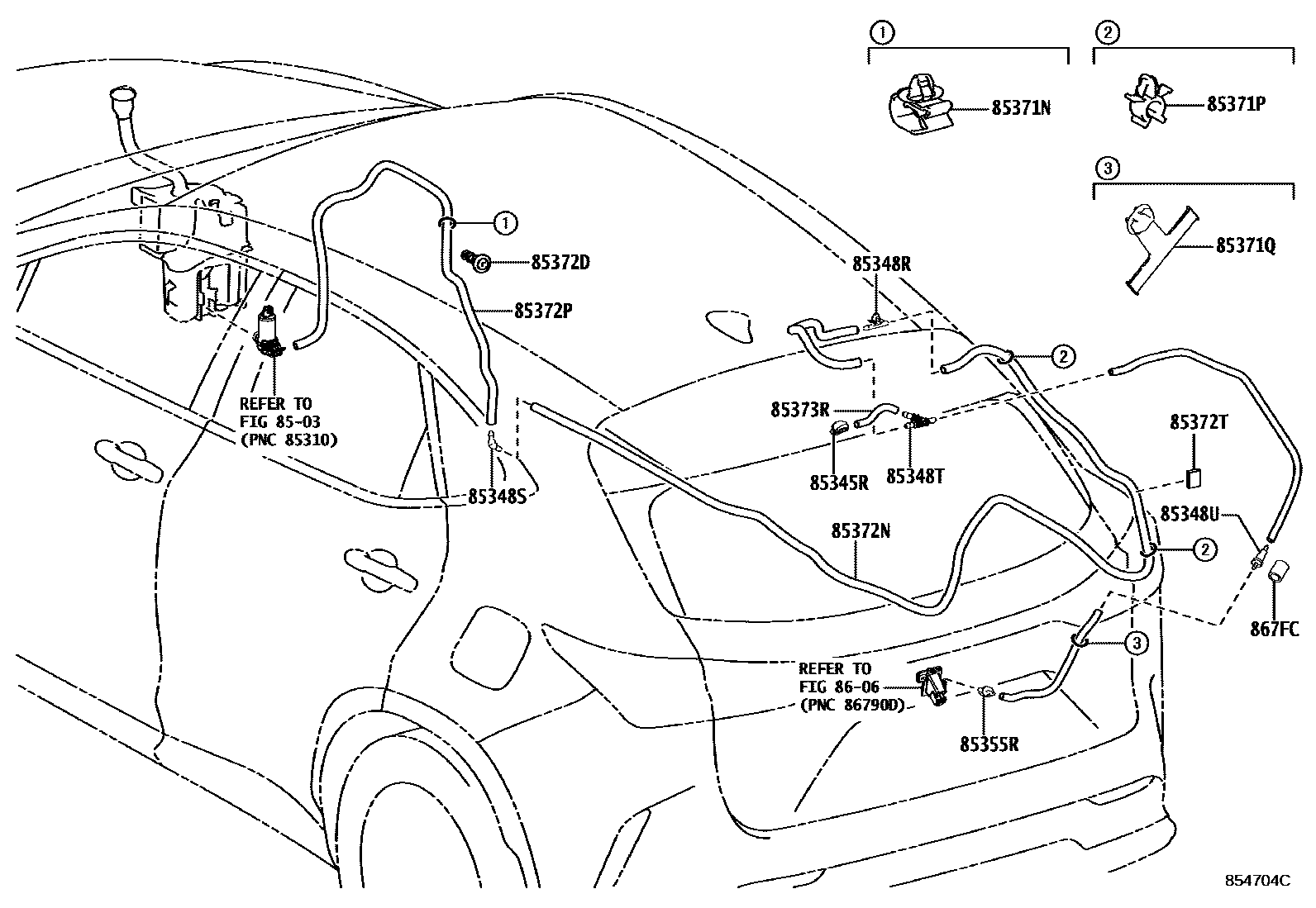

REAR WASHER
8503WINDSHIELD WASHER
85345RNOZZLE, REAR WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85348UJOINT, REAR WASHER HOSE, NO.3
85355RVALVE, REAR WASHER HOSE
85371NCLAMP, REAR WASHER HOSE
85371PCLAMP, REAR WASHER HOSE, NO.2
85371QCLAMP, REAR WASHER HOSE, NO.3
85372DGROMMET, REAR WASHER HOSE
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
85372TGROMMET, WASHER
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
8606CAMERA & REAR MONITOR DISPLAY
867FCCUSHION, CLEANER HOSE
17 parts on this diagram · 1 diagram in section
